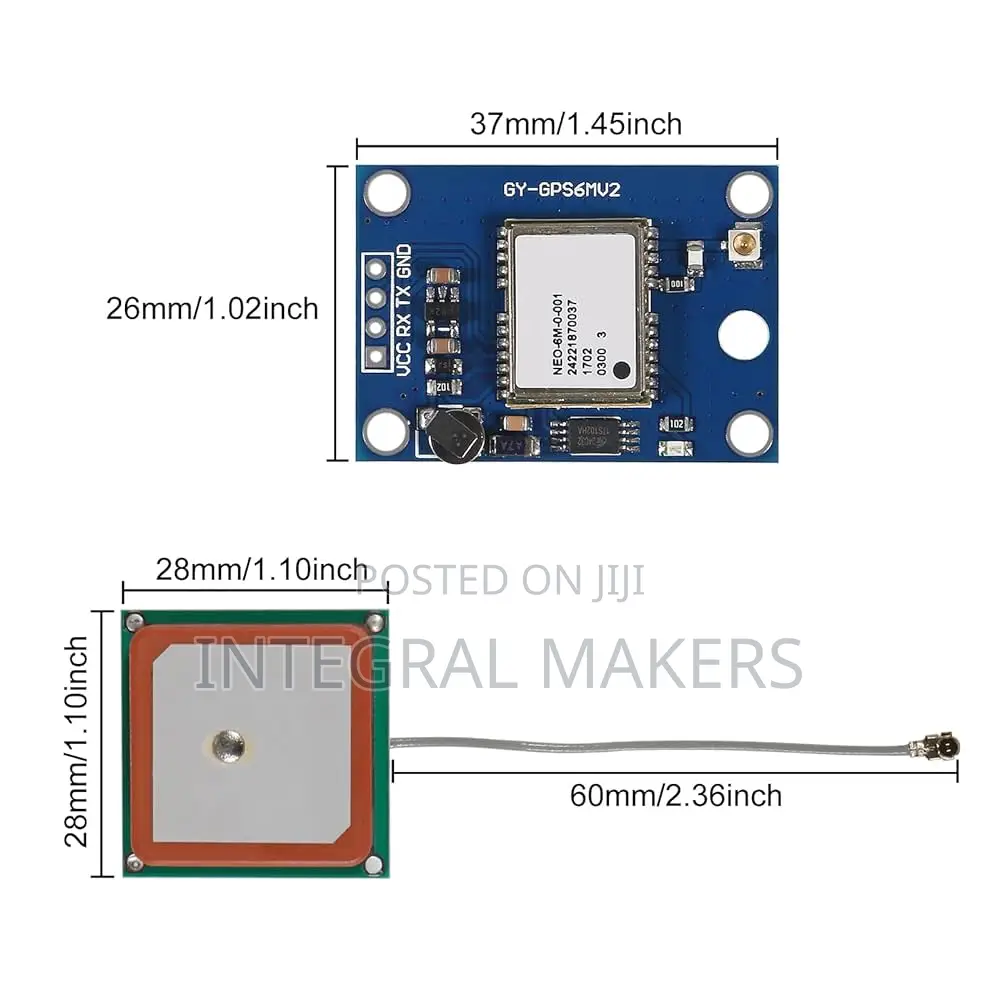

The GY-NEO-6M GPS Module delivers precise position and timing data using signals from GPS satellites. Equipped with an external active ceramic antenna and backup battery, it ensures fast cold starts, stable signal reception, and reliable performance even in urban environments. It supports NMEA and UBX protocols, making it compatible with most microcontrollers and flight controllers for navigation and tracking applications.
FEATURES
High-performance NEO-6M GPS chipset.
External active antenna for strong signal reception.
Built-in backup battery for quick re-acquisition.
Onboard EEPROM for configuration storage.
UART interface for simple serial communication.
Operating Voltage: 3.3V–5V
Position Accuracy: <2.5 m
Update Rate: 1–5 Hz
Baud Rate: 9600 bps (default)
Protocol: NMEA, UBX
Interface: UART (TX, RX)
