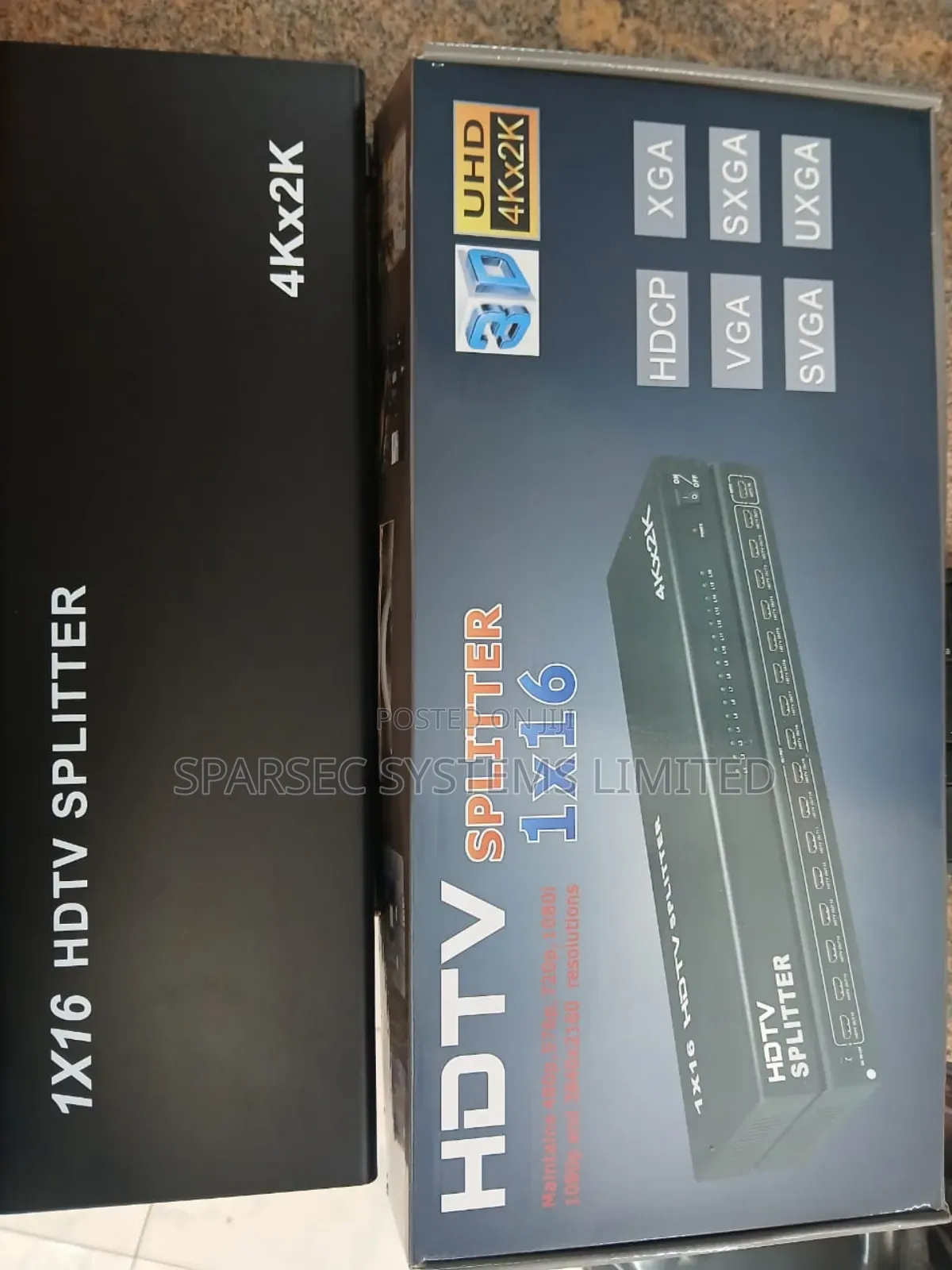

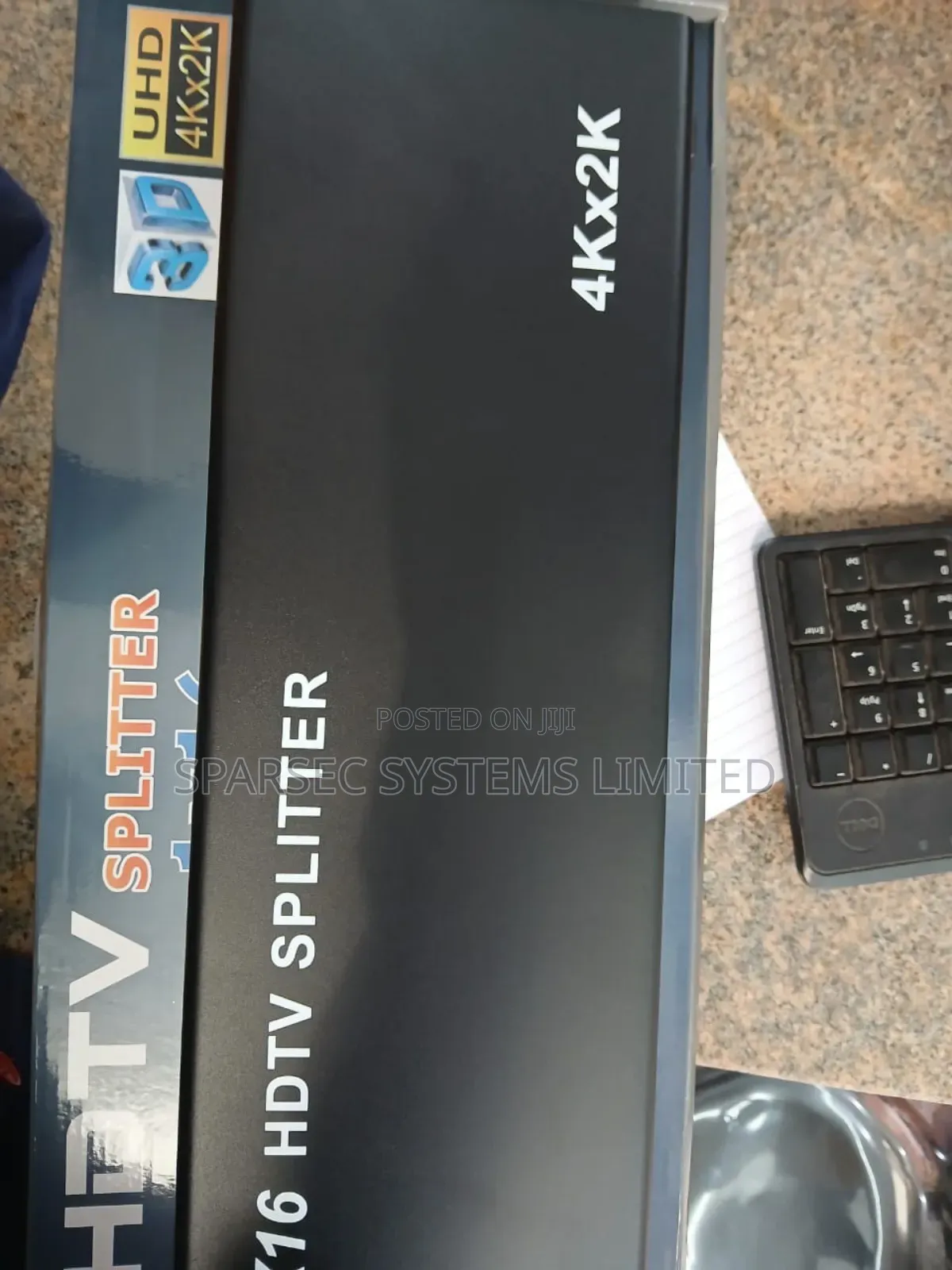

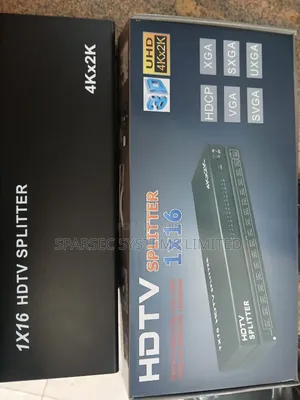

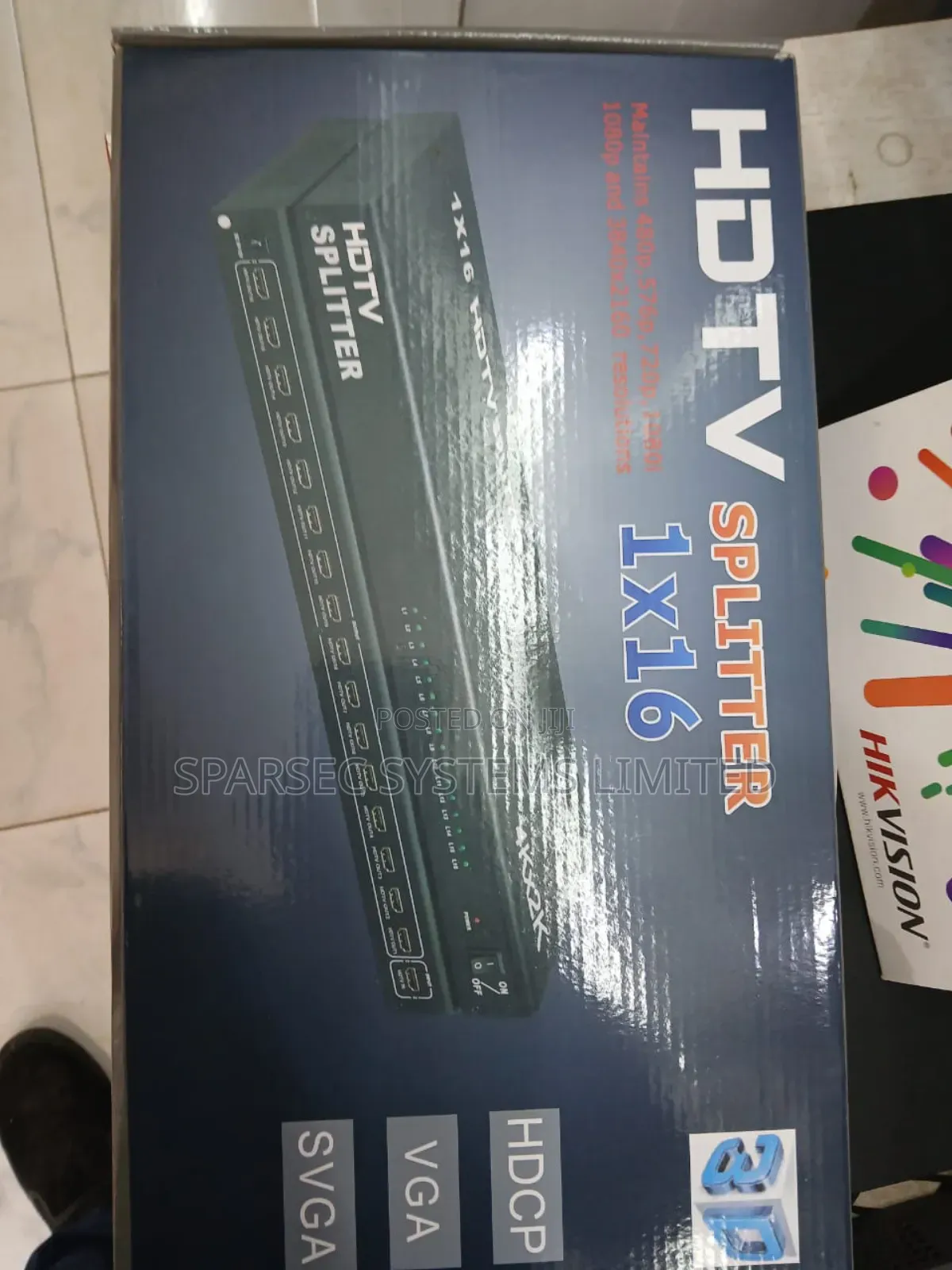

The 1x16 hdmi splitter uses a single hdmi source,accessing to multiple hdmi sinks. it allows one hdmi device to be split easily to sixteen hdmi compatible monitors or projectors. the splitter can also be placed at the end of a long hdmi cable to regenerate the hdmi signal. resolution up to 3840x2160/30hz.
connect 1 hdmi cable from hdmi source devices into hdmi splitter input.
connect 16 hdmi cables from each displayers (monitors or projectors) into the hdmi splitter outputs.
connect 12v power supply to the hdmi splitter 1x16.
max bandwidth:320mhz
max transmission bandwidth:3.2gbps
hdmi version: hdmi 1.4b
power adapter format: dc 12v/5a
support audio format: dts-hd/dolby-truehd/ dts/dolby-ac3/dsd
