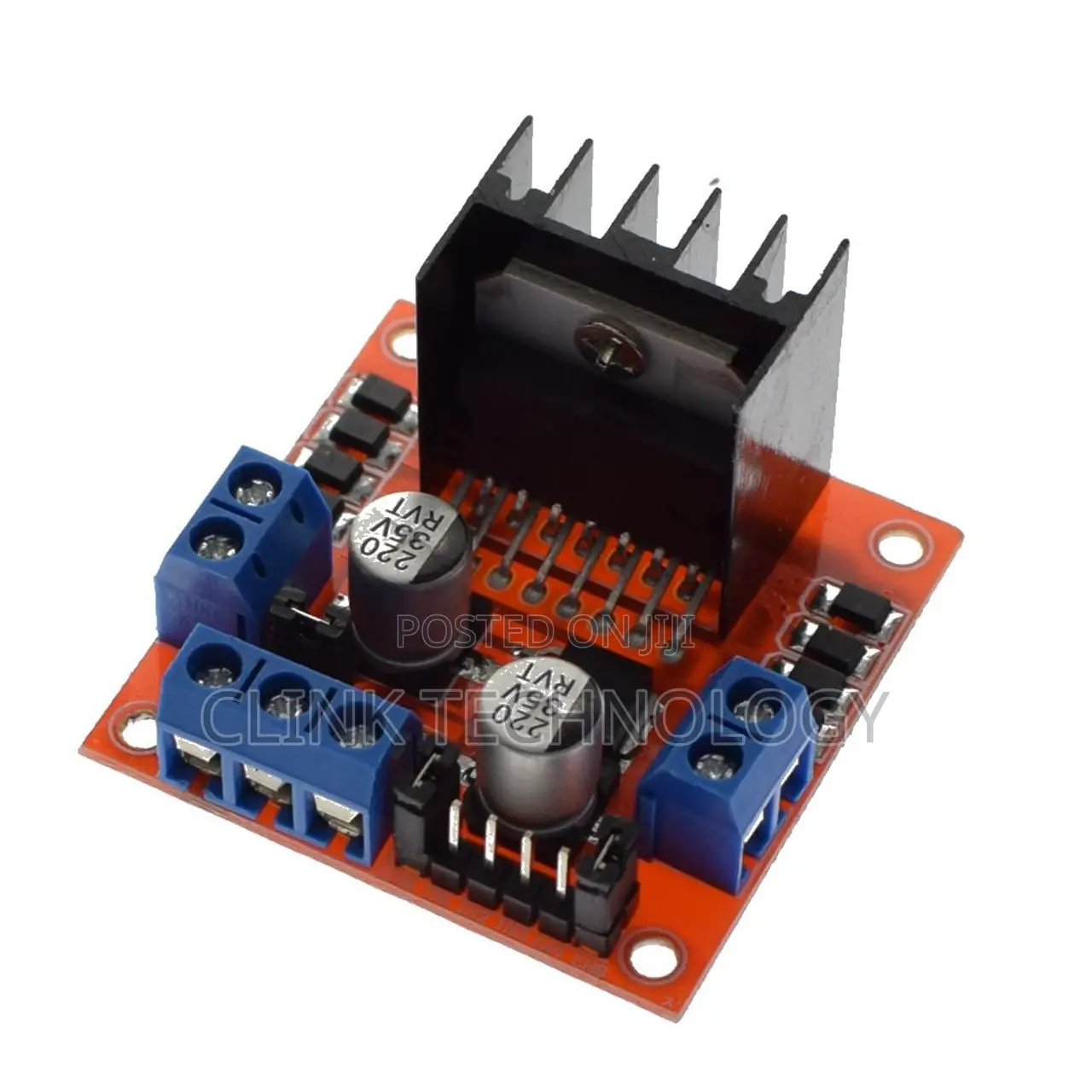

L298N Dual Bridge DC Stepper Motor Driver Board
Networking Product Accessories
Type
Brand New
Condition
Other
Brand
Driver: L298N Dual H Bridge DC Motor Driver IC
Driven the terminal supply area Vs: +5V ~ + 35V; Such as need to take power inside the board, supply area Vs: + 7V ~ + 35V
Driven part of the maximum current Io: 2A
The logical part of the voltage of the terminal Vss: + 5V ~ + 7V (can use power within + 5V)
The logical the current range: 0 ~ 36mA
Voltage control signal range:
Low: - 0.3 Volts
High: 2.3 Volts
Enable input voltage signal:
Low: - 0.3
High: 2.3 Volts
Maximum power consumption: 20 watts (when the temperature T = 75 degrees C)
Temperature: -25 degrees C ~ + 130 degrees Celsius
Other extensions: Direction control, logical part of the plate to take power interface.
