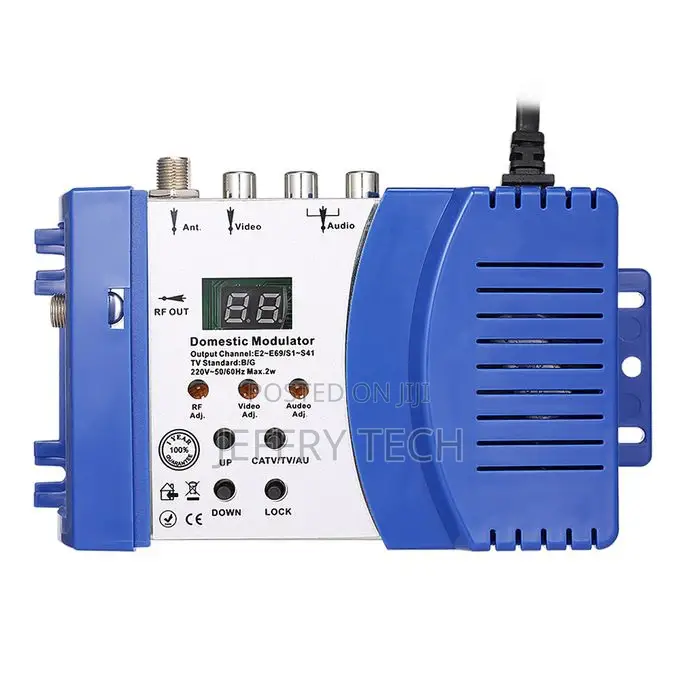

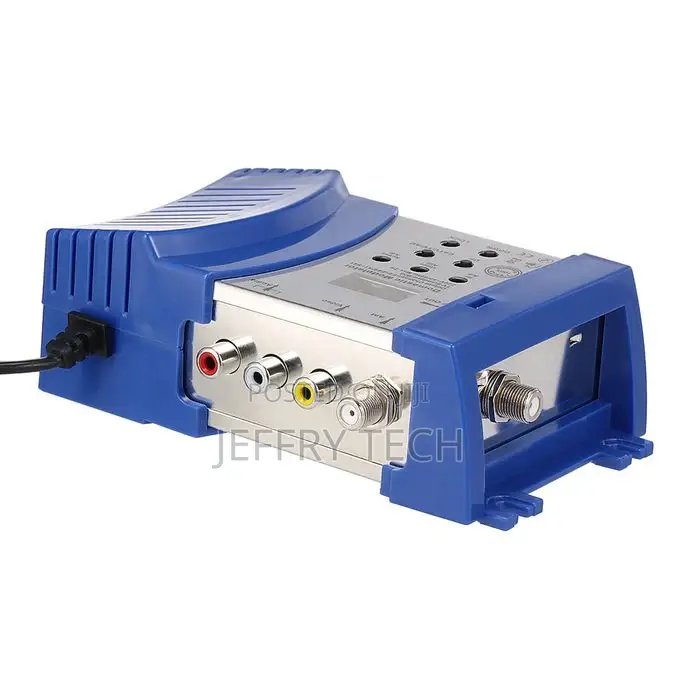

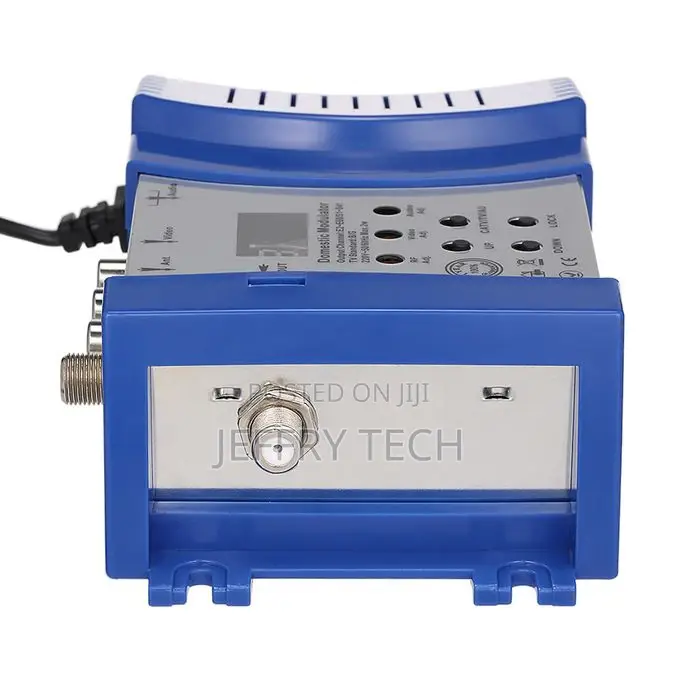

M66 RF Modulator Audio Video TV Converter Signal Amplifier
TV & DVD Accessories
Type
Other
Subtype
Brand New
Condition
Other
Brand
Store address
Nairobi • Nairobi Central
Nairobi central
Closed
• Mon, Sat, 08:00-20:00
M66 rf modulator audio video tv converter signal amplifierproduct details
features:
*humanized design, easy to install and operate.
*high performance circuit design provides accurate picture reproduction.
*can convert audio and video to rf via channel.
*with selectable output level of audio and video.
*compatible with all local catv system.
specifications:
model: m66
color: blue
plug type: eu, us (optional)
input voltage: ac 230v 50hz
operation temperature: 0°c - 40°c
rf
frequency range: vhf: ch2-ch4. s1-s10
vhf: ch5-ch12. s11-s41. uhf: ch21-ch69
output level: 90dbuv min.
a/v ratio: -15±2 db
video carrier frequency accuracy: ±5khz
output return loss: 14db
spurious rejection: 50db
output impedance: 75ω
video
input level: 0.8vp-p for 80% ± 10% modulation
input level adj: 0.4vp-p~0.8vp-p
s/n ratio: 55db
freq. response: ±2.5db (50hz to 4.2mhz)
input impendance: 75ω
audio
frequency deviation: ±50khz
frequency response: ±2db
input
