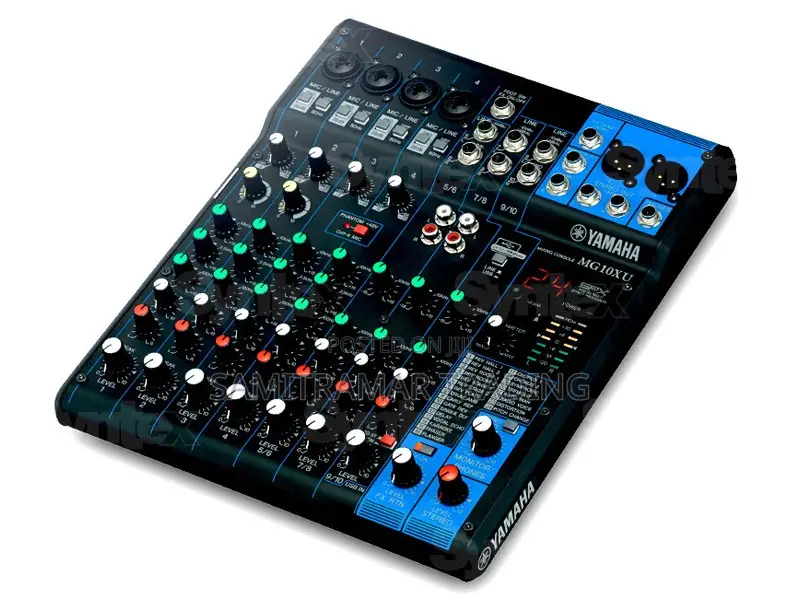

Features
4 mono inputs (xlr/trs combo jacks) with d-pre preamps, plus 3 stereo line inputs.
d-pre mic preamps: studio-grade discrete class-a preamps
spx digital effects: built-in, high-grade processor with 24 editable programs, including reverbs, delays, and modulation.
usb audio interface: 2-in/2-out usb interface (24-bit/192khz)
1-knob compressors: easy-to-use dynamics control on channels 1 and 2
pad & hpf: 26db pad switch for loud sources and 80hz high-pass filter on mono channels.
specifications
total harmonic distortion (thd+n): 0.02%
frequency response: 20hz to 48khz
phantom power: +48v (switchable for channels 1-4).
output connectors: balanced xlr and 1/4" trs main stereo outputs, plus dedicated monitor and headphone outs.
dimensions (w×h×d): 244 mm x 71 mm x 294 mm
net weight: 2.1 kg
