FEATURES
4-inch, fiberglass former, edgewound aluminum voice coil
700W continuous program power handling
101 dB Sensitivity
60 Hz – 2 kHz Frequency range
Shaped Shallow Triple-roll damped surround
Inverted dust cap

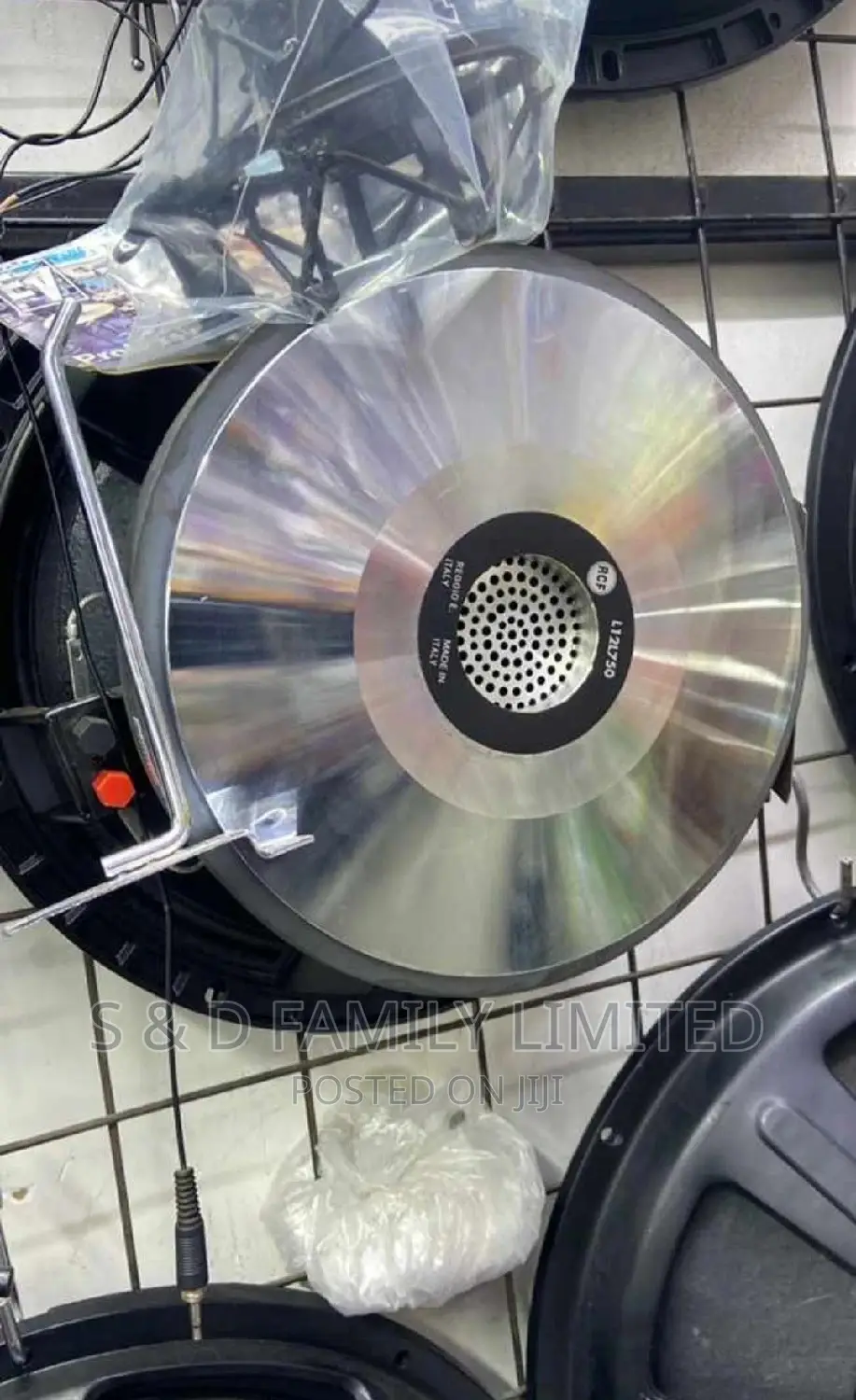

Very high efficiency and extended linearity are special features of this mid-bass transducer. Very efficient heat dissipation is ensured by a radiator that is part of the basket design. The aluminum voice coil offer a properly aligned Q factor and a very high sensitivity. A specially designed Shallow Triple-roll surround guarantee a very low midrange distortion. Fiberglass former voice coil, polycotton suspensions and treated cone provide the very high power handling.
Nominal Diameter:
12 inch / 305 mm
Rated Impedance:
8 ohm
Program Power (watt):
700 W
Power handling capacity:
350 W
Sensitivity:
101.0 dB
Frequency range:
60 - 2
