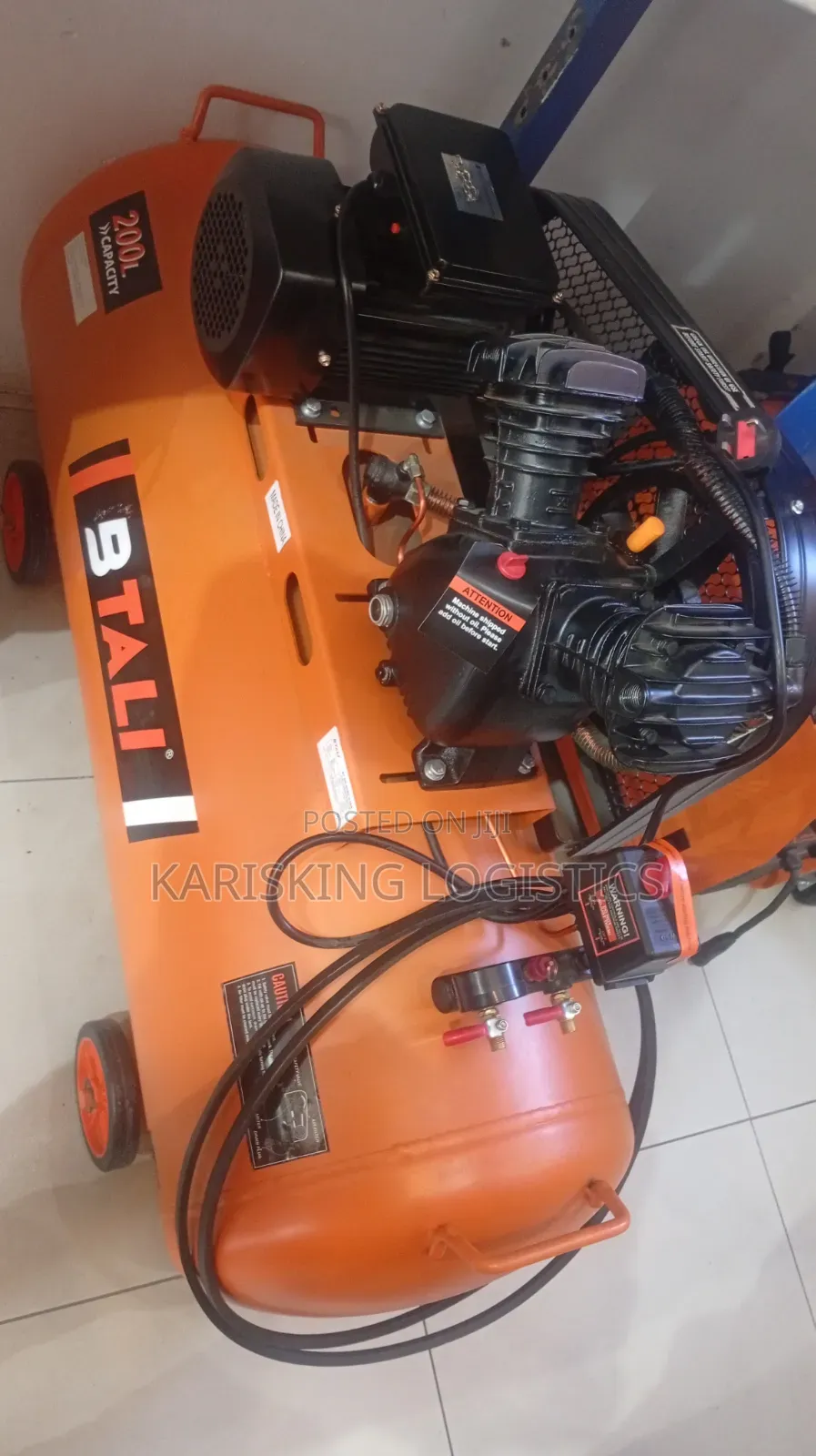

This one is the *btali 200l belt-drive - 2 piston heavy duty
- *brand / model:* b tali - 200l capacity
- *type:* belt-driven, double piston / twin cylinder, oil-lubricated
- *motor:* 3.0hp / ∼2.2kw
- *power supply:* 220v / 50hz single phase
- *tank:* 200 litres
- *working pressure:* 8 bar / 115 psi (max 10 bar on some versions)
- *air flow / free air delivery:* 390 l/min for the belt-drive version (the direct-drive version is rated 120l/min)
- *speed:* 2850 rpm motor / ∼1100-1400 rpm pump

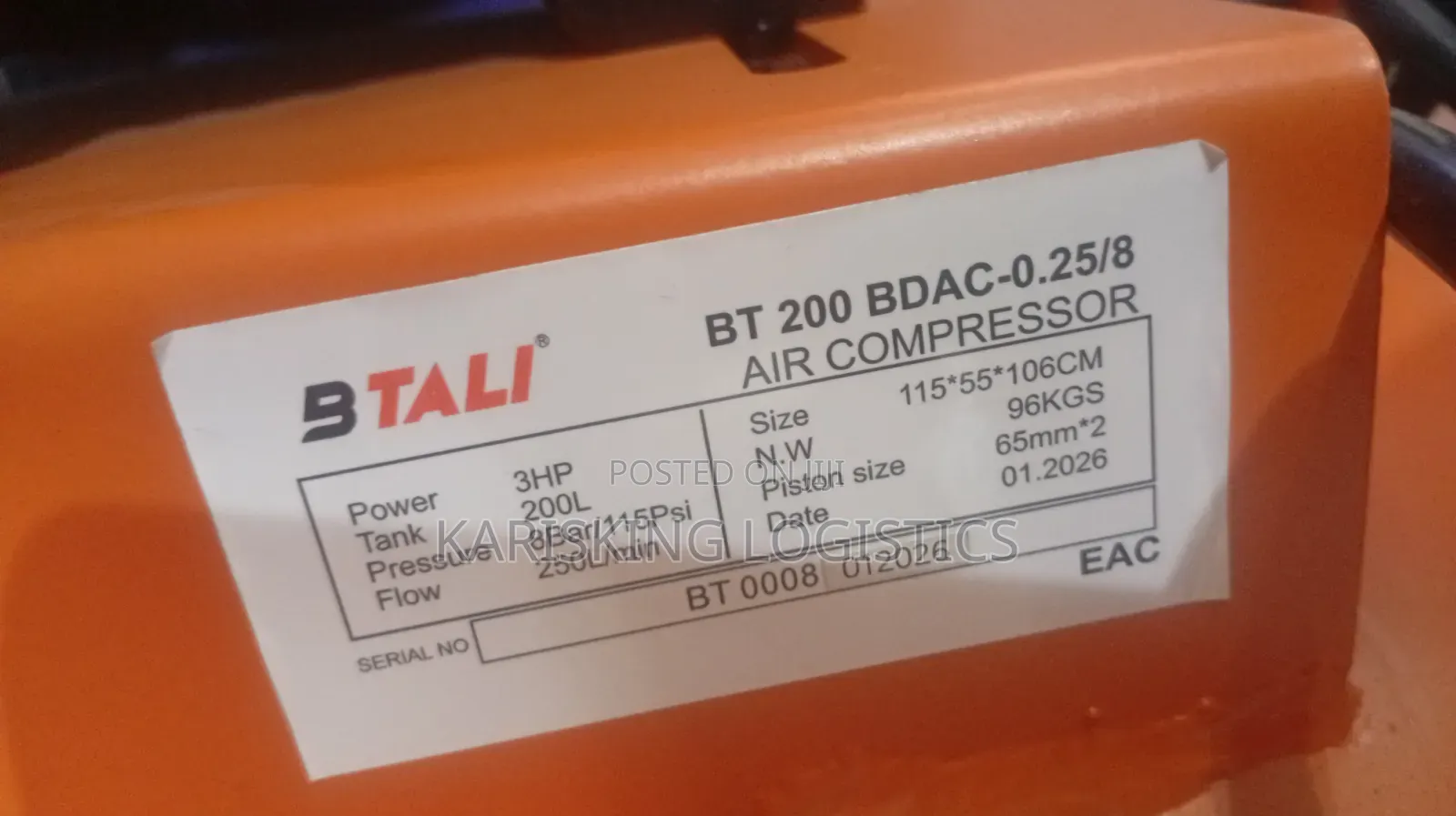

- *official spec list:* power 3.0hp, tank 200l, pressure 8bar/115psi, flow 120l/min, speed 2850 rpm, 74 dba, filling time 220 sec
- *features:* auto-stop pressure switch, twin gauge (tank + output), safety valve, wheels + handles, easy movable.
this is a workshop / garage compressor - good for spray painting
