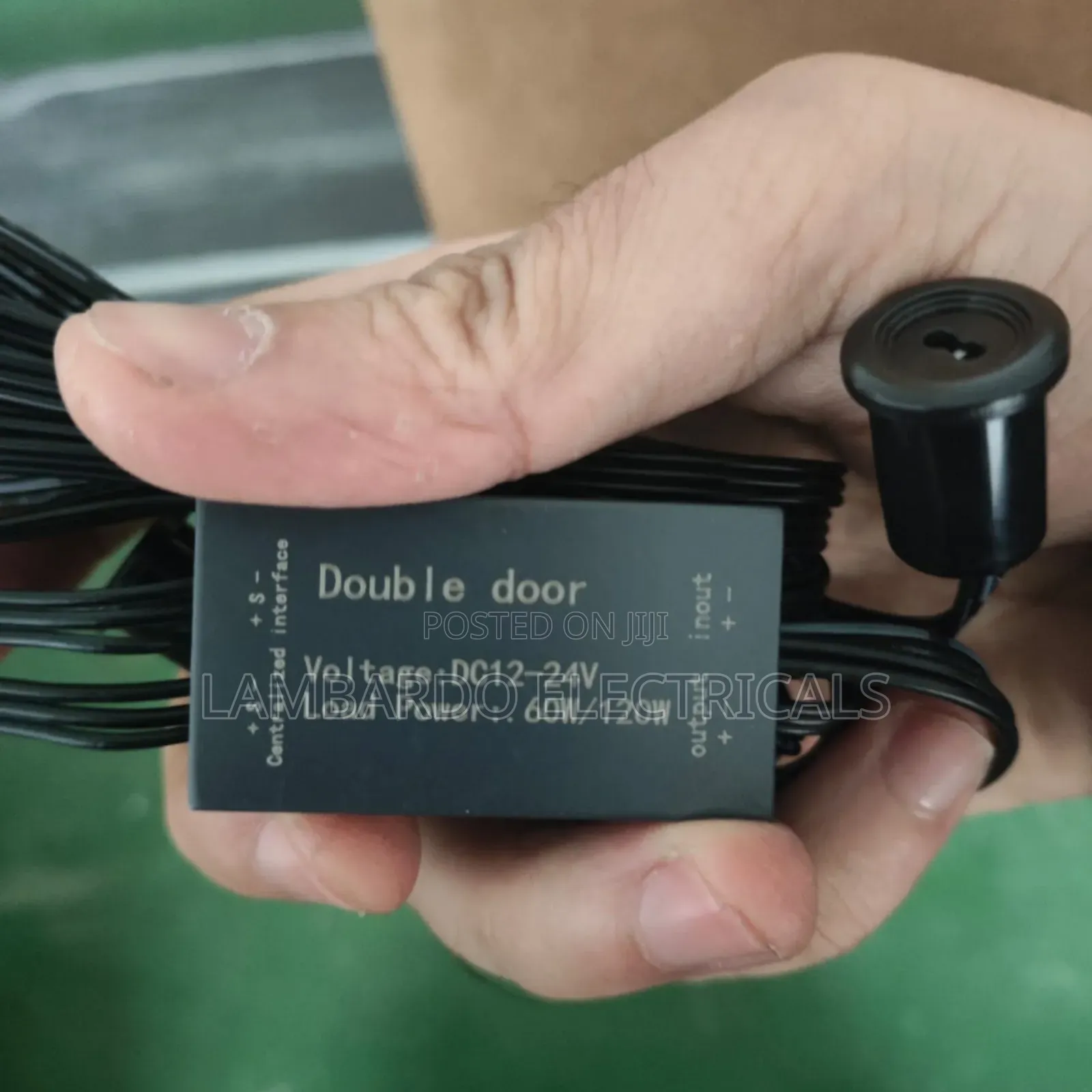

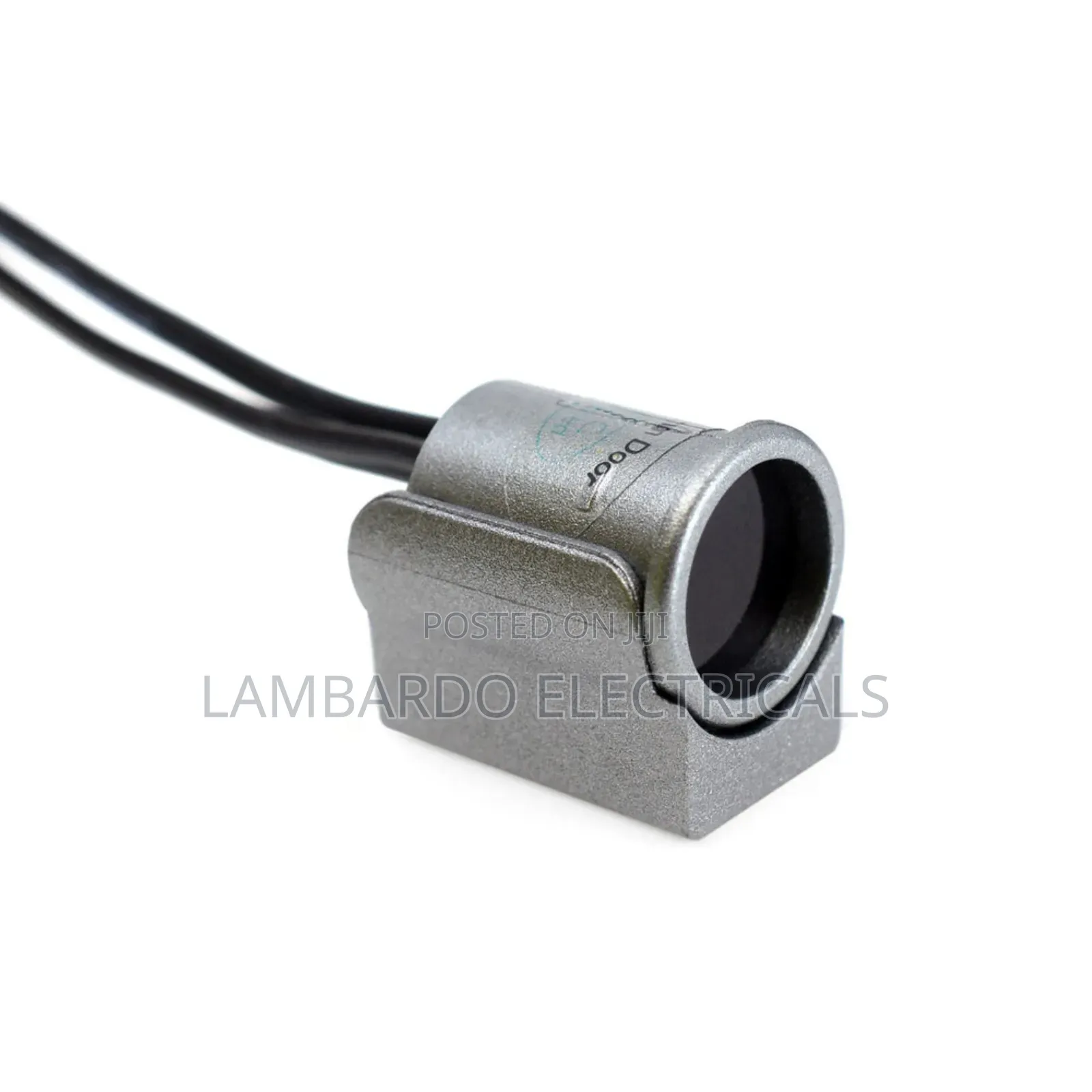

LED sensor is designed to control the switching on and off of 12V or 24V DC LED luminaires by proximity.

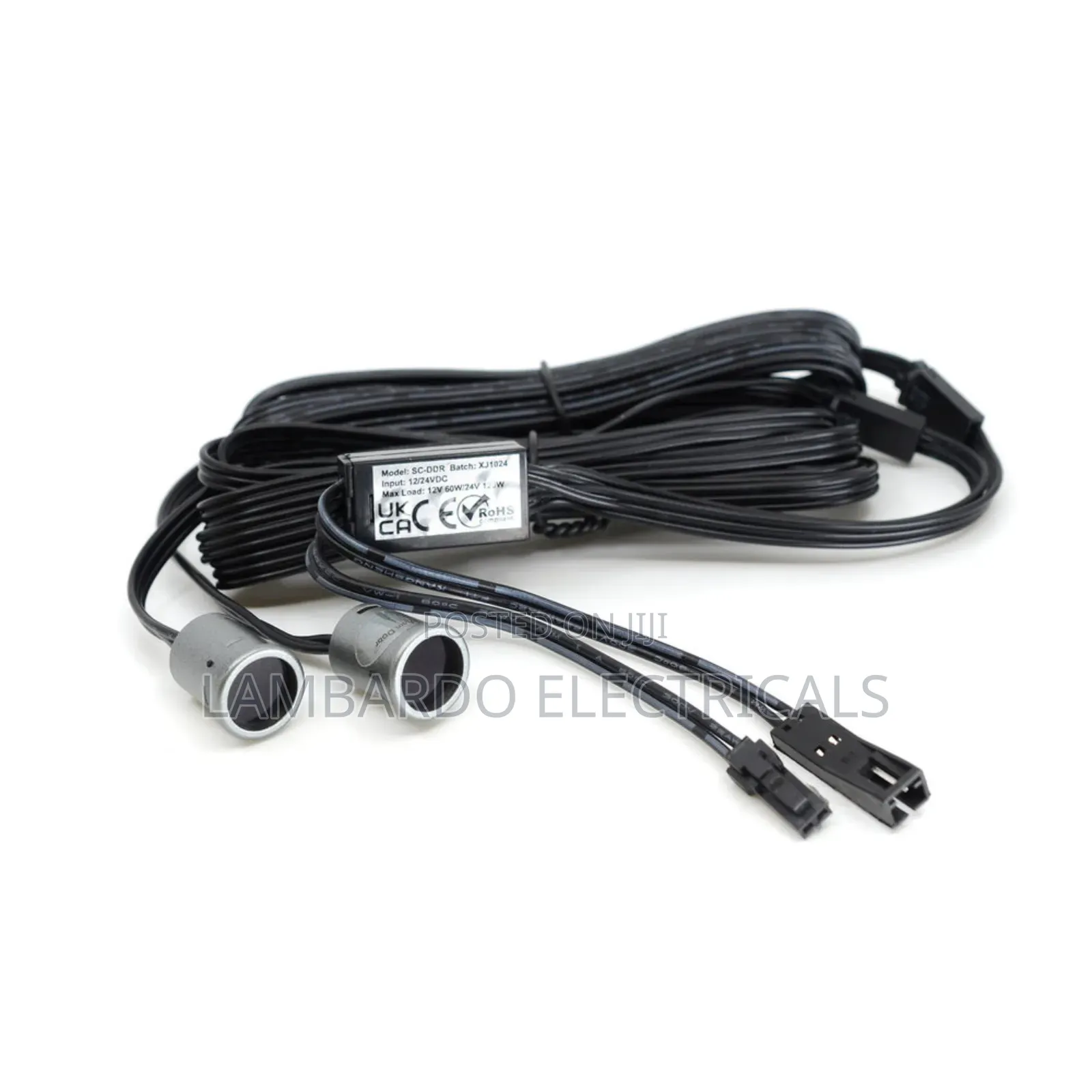

It is triggered when its 6cm detection range is interfered with by opening or closing the enclosure door. Thanks to its double lens, it is ideal for installation in single-hole enclosures with two hinged doors, switching the luminaire on regardless of which door is opened, and keeping the luminaire on until both doors are closed.
It can be connected to a Smart converter via the control port, allowing simultaneous switching on and off of all luminaires connected to the converter with a single sensor. In this type of installation the maximum power is set by the converter.
The sensor can be connected to the converter via the 6 ports or secondary outputs with Miniled connection, allowing the luminaires to be switched on
