The STCL 7.5HP Single Phase High-Speed Electric Motor is a heavy-duty motor designed for industrial, agricultural, and commercial applications. Operating on a 220–240V single-phase power supply, it delivers approximately 2900 RPM high-speed performance with reliable starting torque and efficient operation. Features typically include 100% copper windings, capacitor start/run design, thermal overload protection, fan-cooled construction, and IP54 protection for durability and long service life. It is suitable for borehole pumps, air compressors, milling machines, woodworking equipment, blowers, and other demanding machinery.

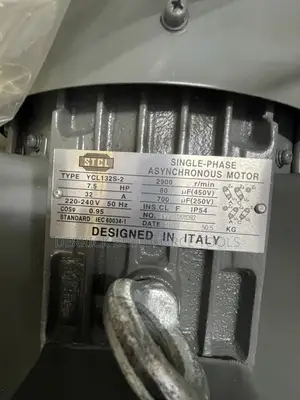

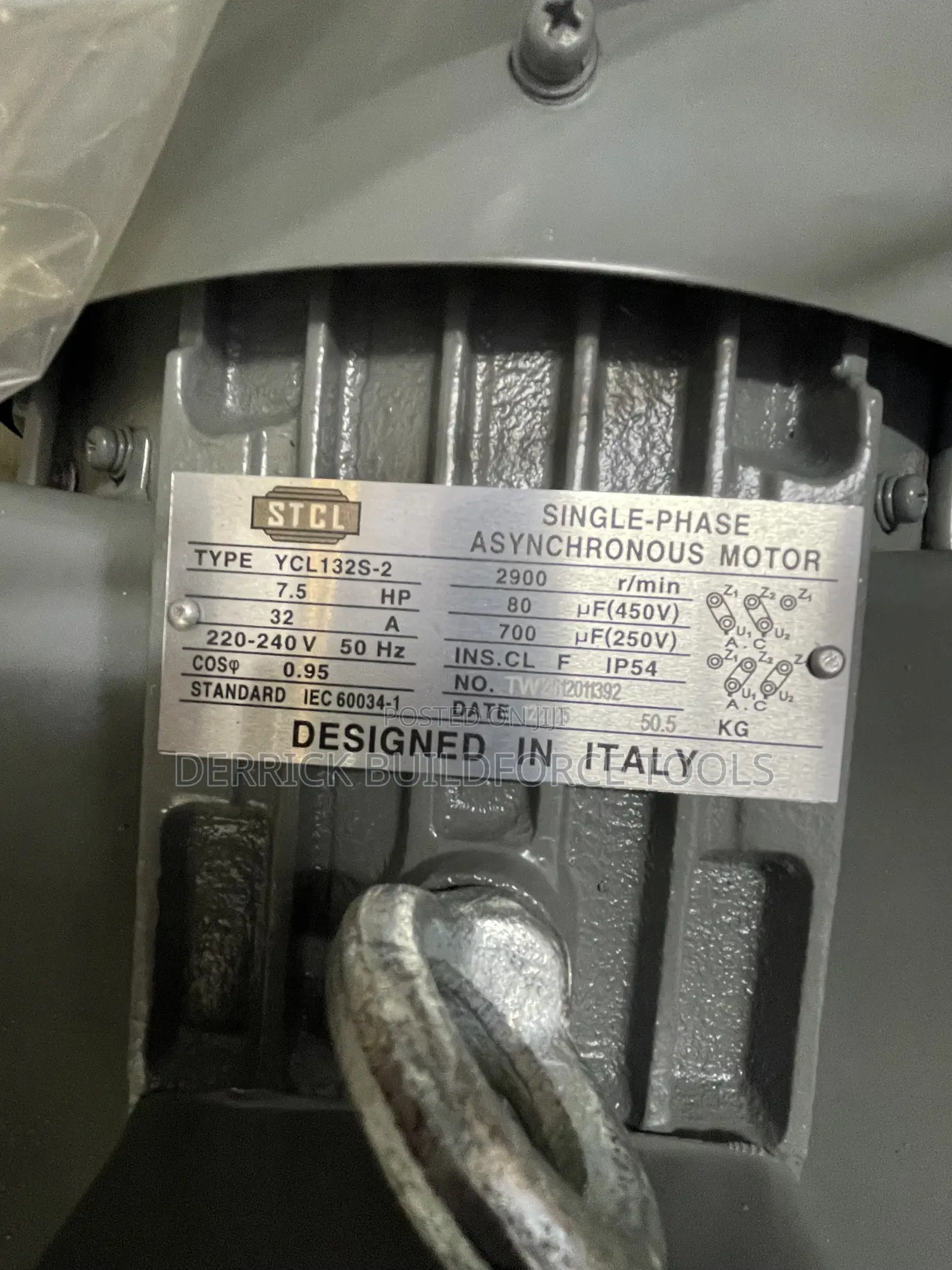

Key Specifications
* Power Output: 7.5 HP (5.5 kW)
* Voltage: 220–240V AC, Single Phase
* Speed: ~2900 RPM (High Speed)
* Protection: IP54
* Insulation Class: F
* Cooling: Fan Cooled
* Windings: 100% Copper
