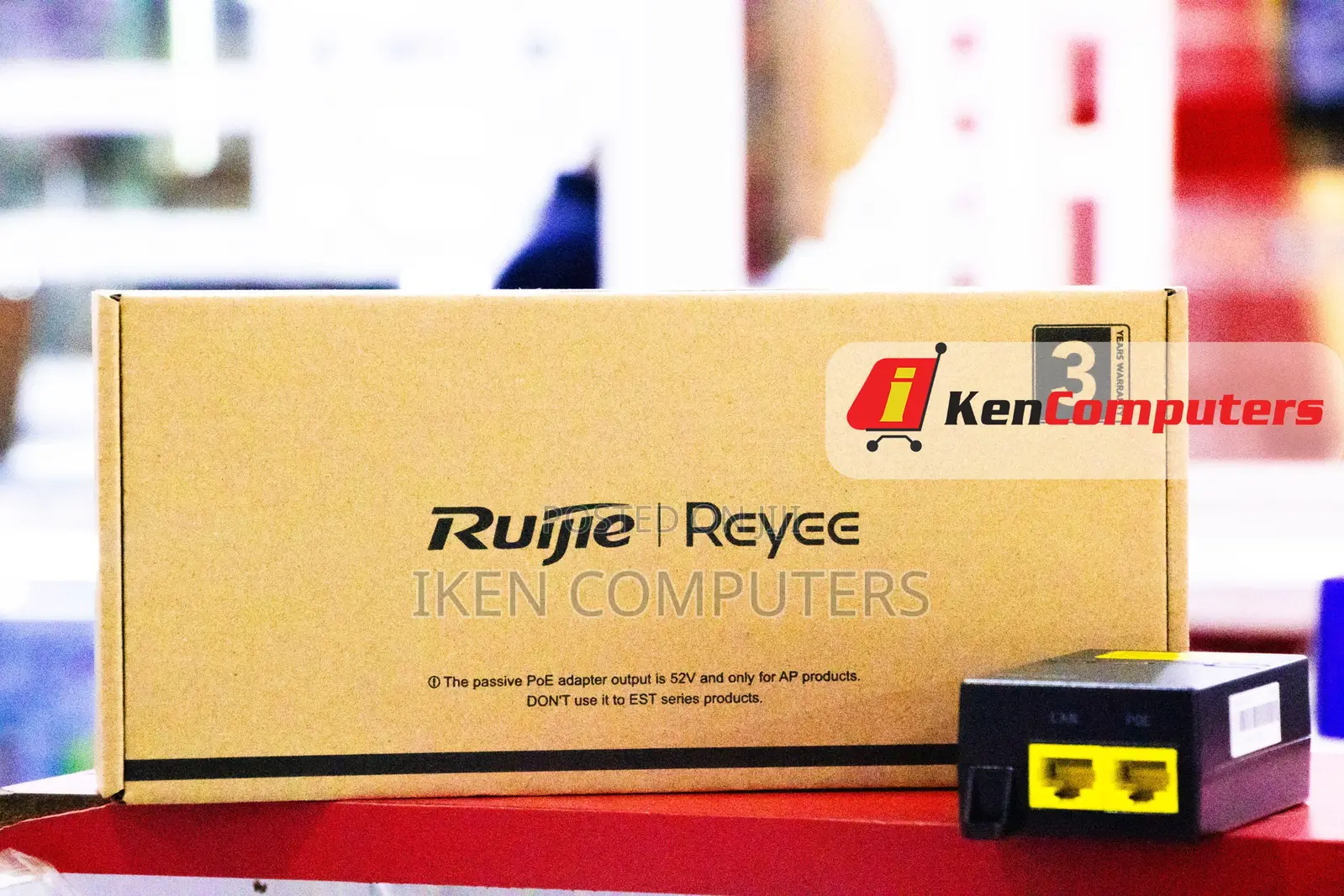

rg-poe-at30, 1-port poe injector (1000base-t, 52 v, 31.2 w)
hotel, home, office, etc.
models
rg-poe-af15
1000base-t,52v,15.6w,passive poe
rg-poe-at30
1000base-t,52v,31.2w,passive poe
rg-poe-50-60w-mg
2500base-t,56v,60w,passive poe
series
passive poe injector
datasheet
sales enquiry
add to favorites
highlight features
stable and high-performance power supply to the ap
wide operating temperature range from -10°c to +45°c
high surge protection rating
key specification
output voltage
52 v dc, 0.6 a
port
1 x 1000base-t port, passive poe+
rated voltage
100-240 v ac, 50/60 hz
input current
max. 0.7 a
inrush current
100 a @ 230 v ac
operating temperature
-10°c to 45°c (14°f to 113°f)
storage temperature
-40°c to +70
