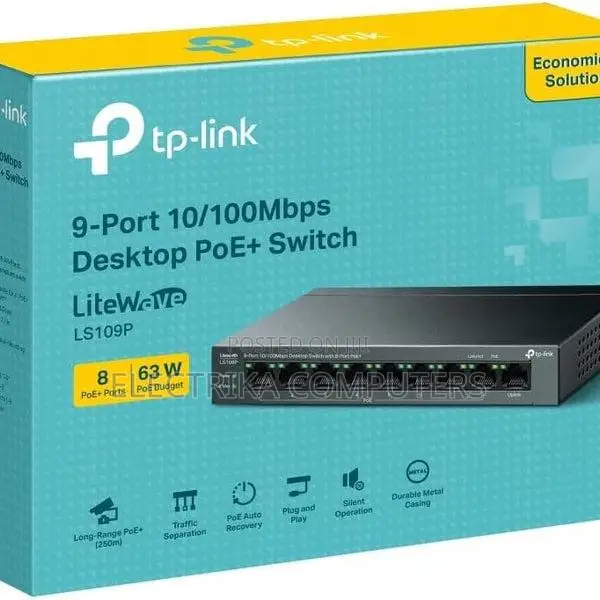

The tp-link ls109p is a 9-port fast ethernet desktop switch featuring 8 × 10/100mbps poe+ ports for connecting and powering compatible devices such as ip cameras, access points and ip phones through a single ethernet cable. it supports ieee 802.3af/at poe+ with up to 30w per poe port and a total 63w poe power budget.
the switch also features extend mode, which can provide poe data and power transmission up to 250 metres under suitable conditions. it includes poe auto recovery, isolation mode, plug-and-play operation and a fanless design for silent operation.
key features
9 × 10/100mbps rj45 ports
8 × 10/100mbps poe+ ports
supports ieee 802.3af/at
up to 30w poe output per port
63w total poe power budget
250m poe transmission with extend mode
poe auto recovery
isolation mode
auto-negotiation
auto mdi/mdix
