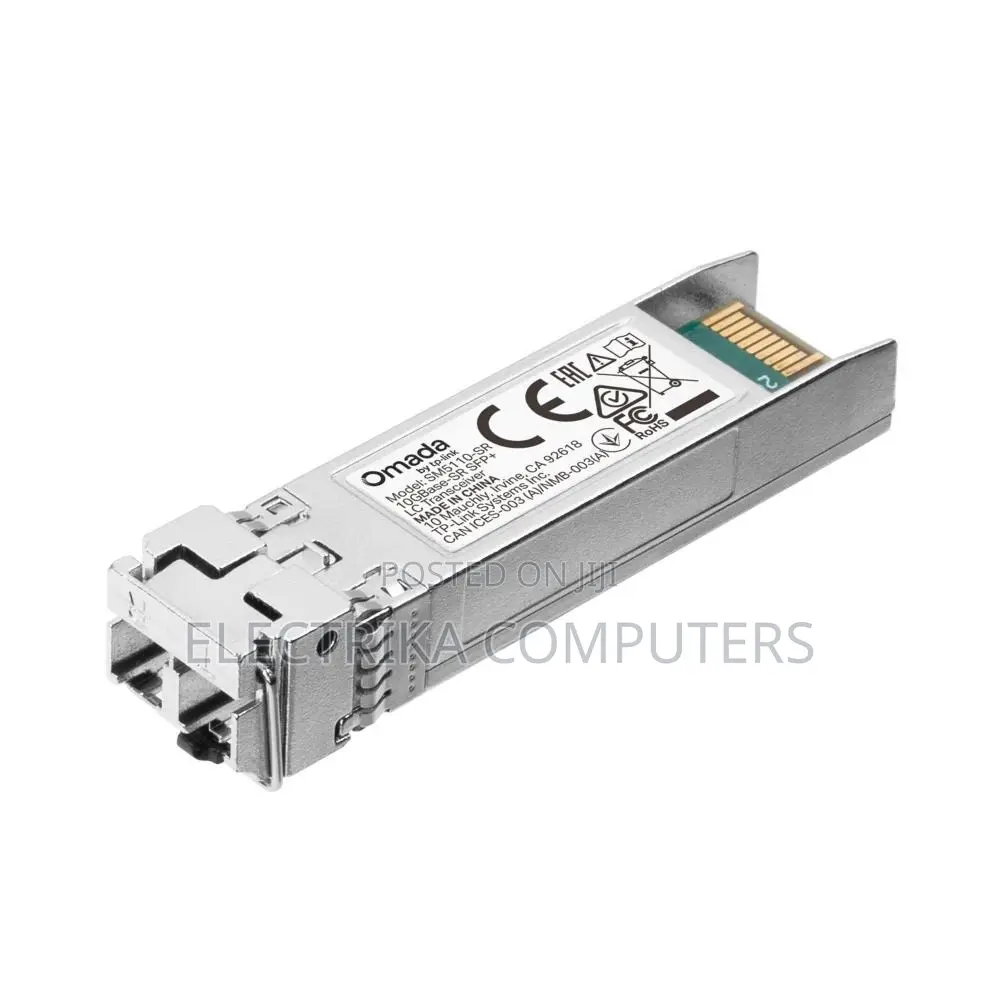

The TP-Link SM5110-SR Omada 10GBase-SR SFP+ LC Transceiver is a high-performance 850nm multi-mode fiber SFP+ module designed for 10Gbps Ethernet connectivity. It is suitable for compatible switches and networking equipment with standard SFP+ ports.
It supports 10Gbps full-duplex Ethernet over multi-mode fiber, with transmission distances of up to 300 meters using 50/125μm fiber. With 62.5/125μm fiber, the maximum distance is up to 33 meters.
Key Features
10GBASE-SR SFP+ transceiver
Data rate: 10 Gbps
850nm wavelength
Multi-mode fiber
LC/UPC duplex connector
Supports up to 300m with 50/125μm fiber
Up to 33m with 62.5/125μm fiber
Hot-swappable
Supports Digital Diagnostic Monitoring (DDM)
Compatible with SFP+ MSA
