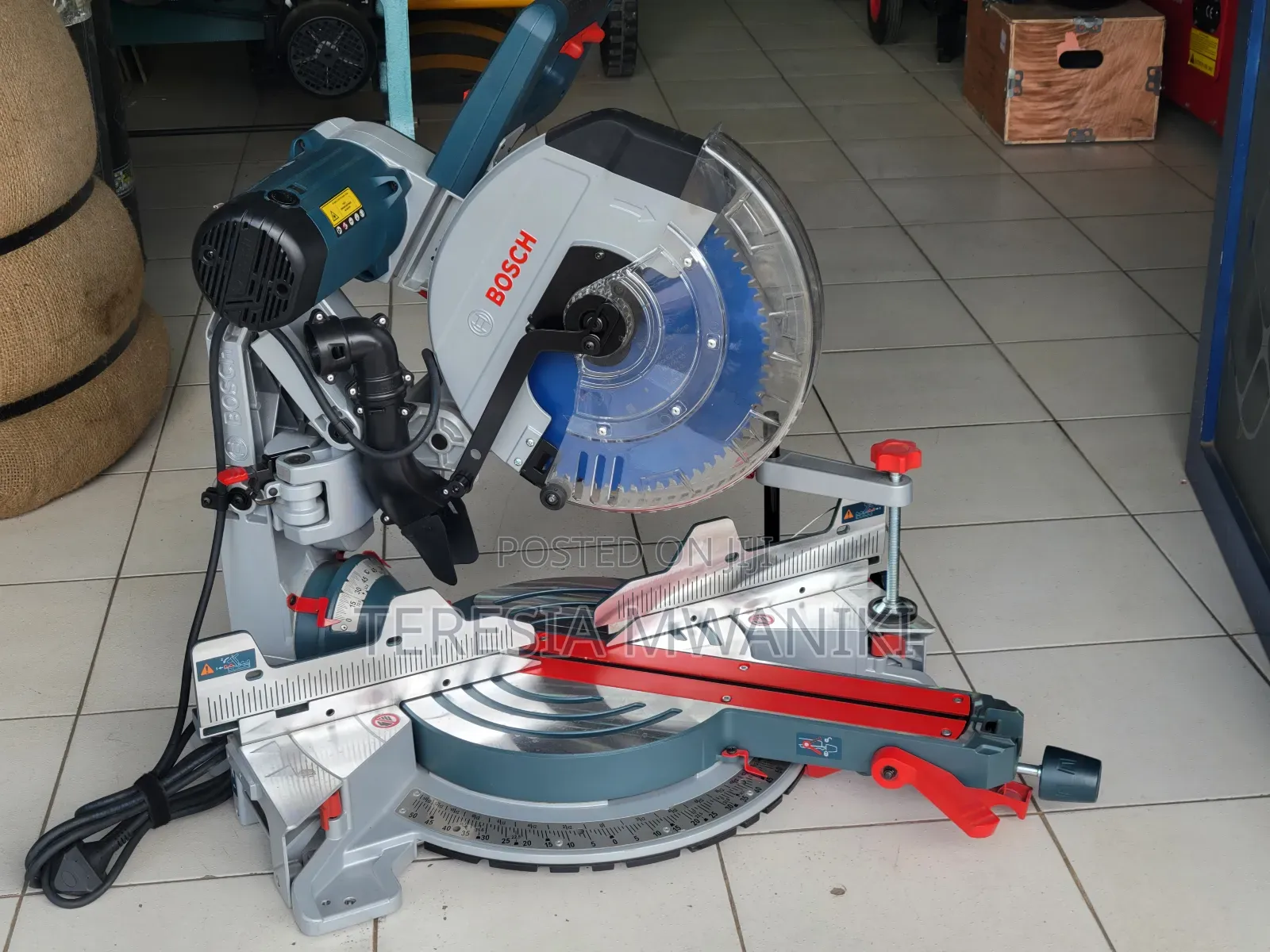

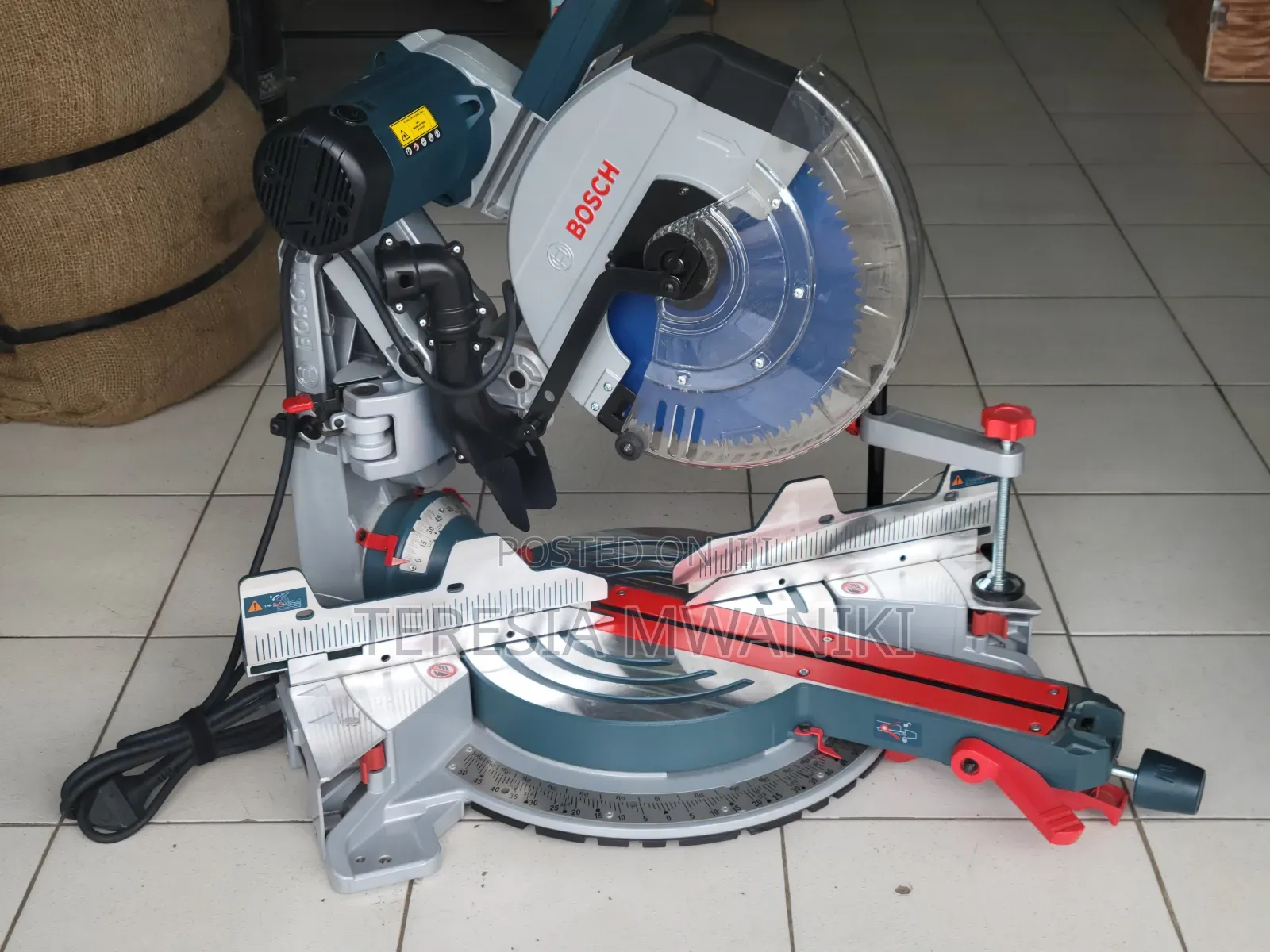

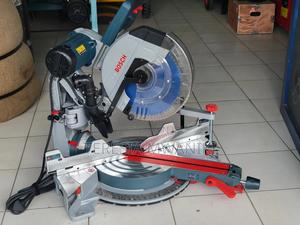

Bosch GCM 12 GDL Professional Mitre Saw
Motor / Power: 2,000 W input power
Blade / Speed: 305 mm blade diameter, 30 mm bore, no-load speed ≈ 4,000 rpm
Cutting capacities:
• At 0°: 104 × 341 mm
• At 45° mitre: 104 × 240 mm
• At 45° bevel: 51 × 341 mm
Mitre & bevel range: 52° left / 60° right mitre, bevel tilt ±47° left & right
Features & highlights:
• Innovative, maintenance-free glide (axial/glide) arm system for smooth and precise motion
• Double-line laser alignment for accurate cuts
• Front-mounted controls for mitre and bevel adjustments
• Compatible with Bosch’s Click & Clean dust extraction system
• Compact design (thanks to the glide arm hinge) allows the machine to be placed closer to walls
Dimensions & weight: approx. 670 × 1,100 × 740 mm (W × L × H)
Weight: ≈ 29.4 kg
