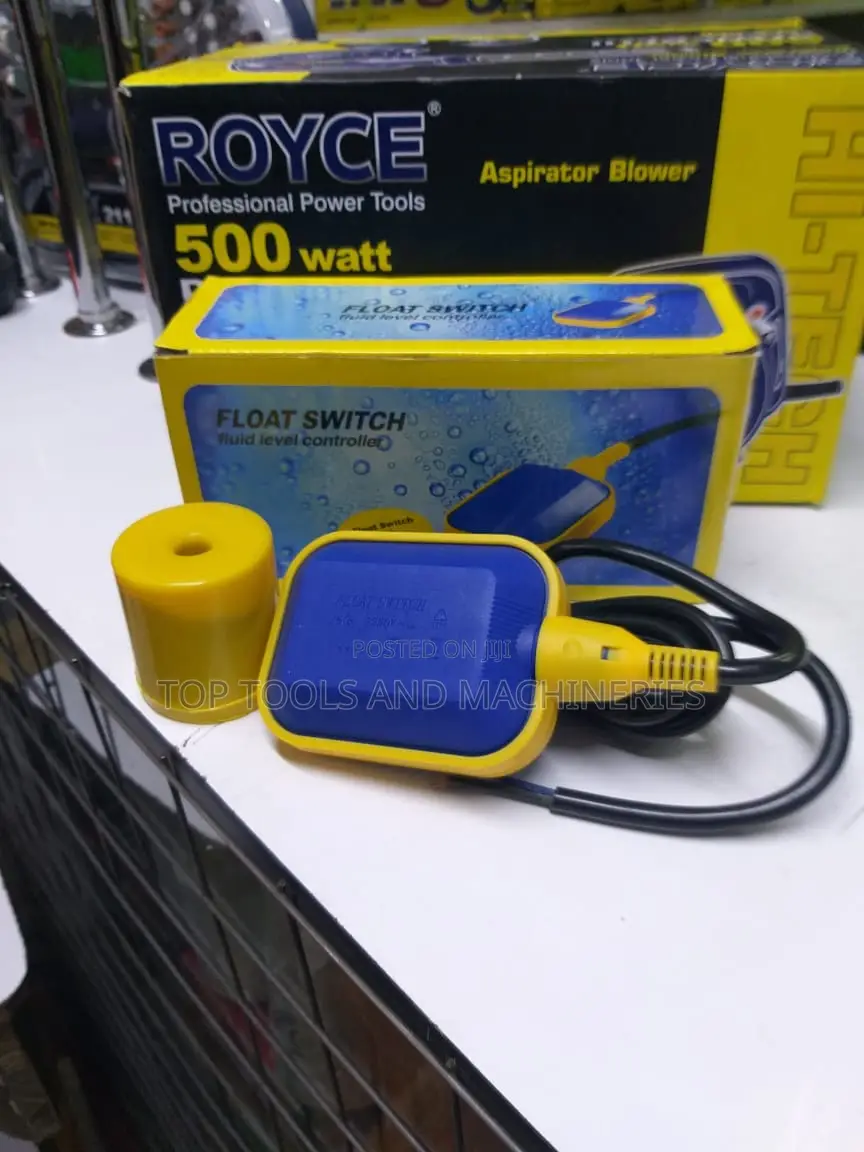

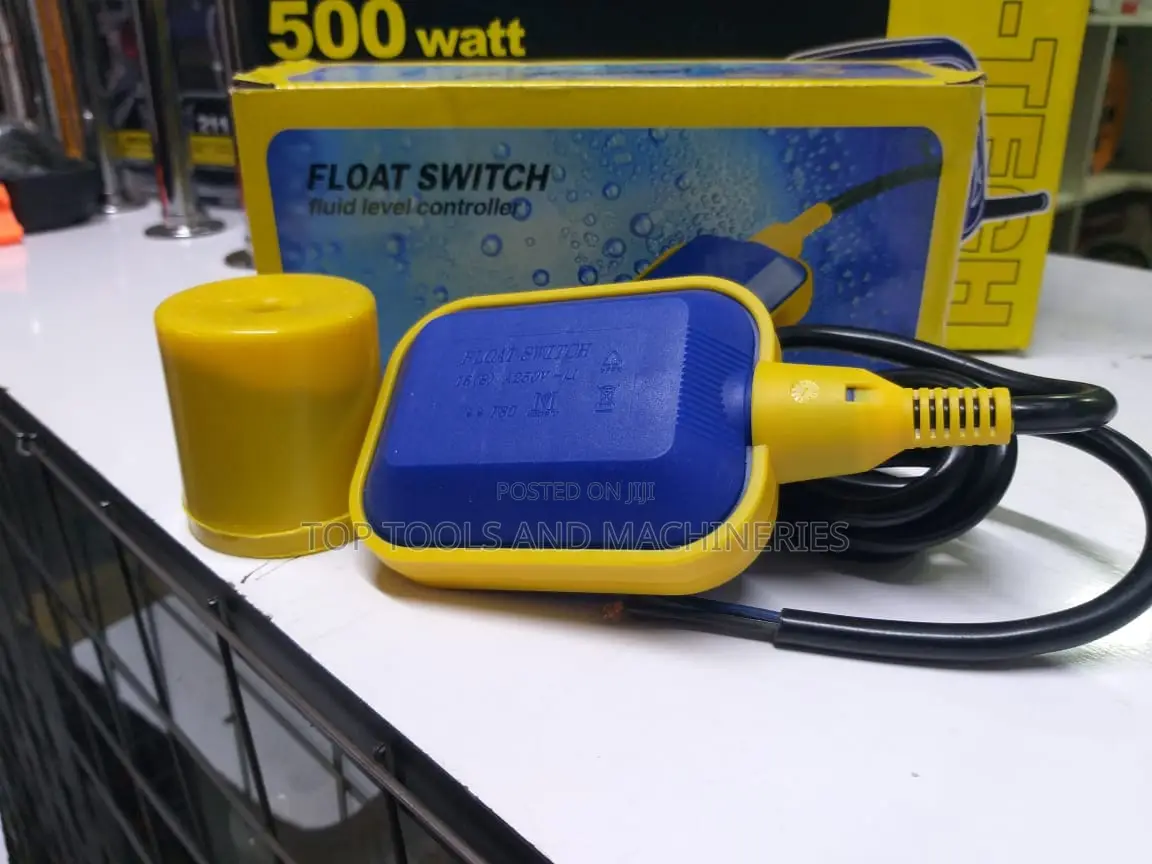

Float Switch Fluid Level Controller
Other
Brand
Other
Type
Brand New
Condition
Store address
Nairobi • Nairobi Central
River Road Good Hope Plaza
Open
• Mon - Sun, 07:00-20:00
A float switch is a mechanical switch that floats on top of a liquid surface. As the liquid level goes up or down, it moves vertically with the liquid level. Depending on the counterweight and pre-set trigger, the mechanical switch opens or closes allowing an electrical current through it to the connected device. Typically, this connected device either stops or starts the inflow of the liquid. A float switch consists of a hollow floating body and an internal switch, also called a sensor.
Material: PP
Protection class: IP65
Working pressure: 0.1MPa
Rated current/voltage: 16A/ 250V
Operating temperature: 0~75°C
Electrical life: 1 x 100 000 times
Mechanical life: 5 x 100 000 times
Cylinder: 61x55mm/ 2.4x2.17inch
