Product model EF10000TE
Rated frequency 50hz
Rated output power 9kw
Maximum output power 10kw
Rated voltage (V) 220
Fuel tank volume 25L
Full load continuous working time 12H
Rated speed (r/min) 3000
Number of Phases Single Phase
Power factor (Cos ) 1/0.8
Insulation class B
Series 2
Excitation mode Self-excitation constant voltage (with AVR)

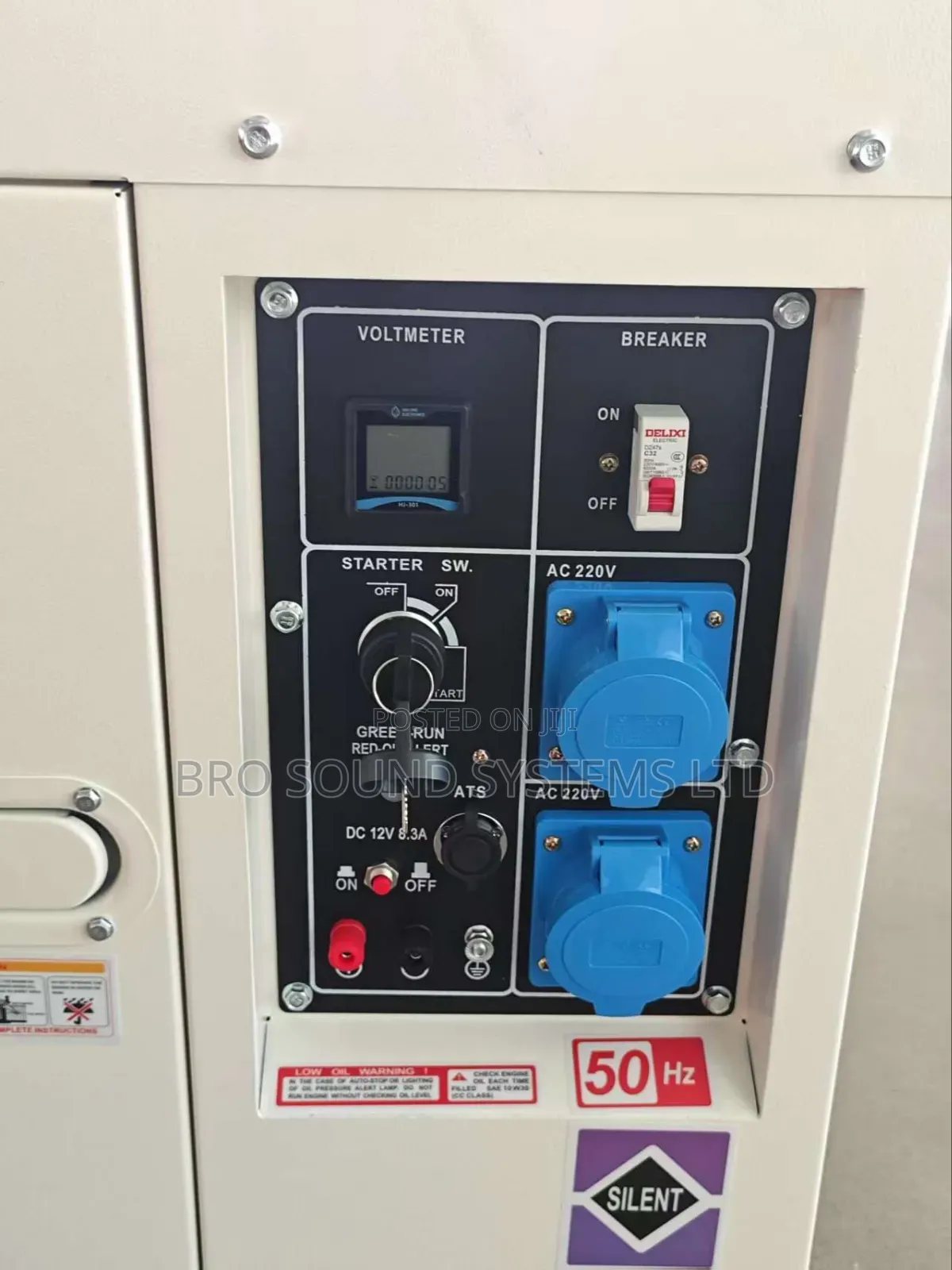

Panel form LCD digital display
Dimensions (L×W×H) mm 1000*580*790
Net weight (kg) 165 Gross weight (kg) 170
Noise level dB(A) 65
Distribution battery 36AH
Engine model SAW1100F
Cooling method Forced air cooling
Engine form Vertical horizontal bar, four-stroke, direct injection
Number of cylinders-bore diameter stroke (mm) 1-86×72
Total displacement (ml) 418
Protection device low oil pressure alarm and shutdown
Lubricating oil model > CD or SAE10W-30, 15W-40
