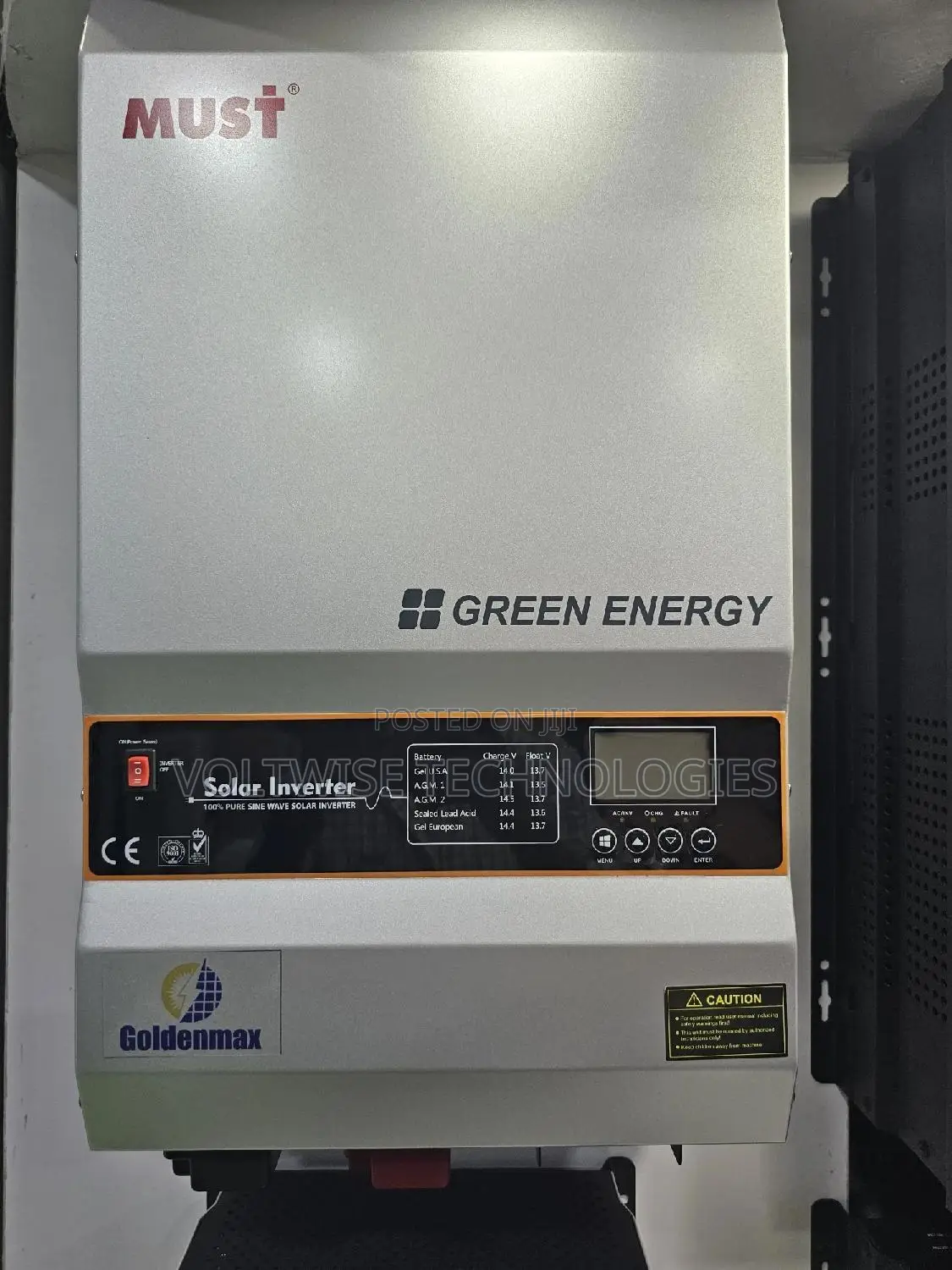

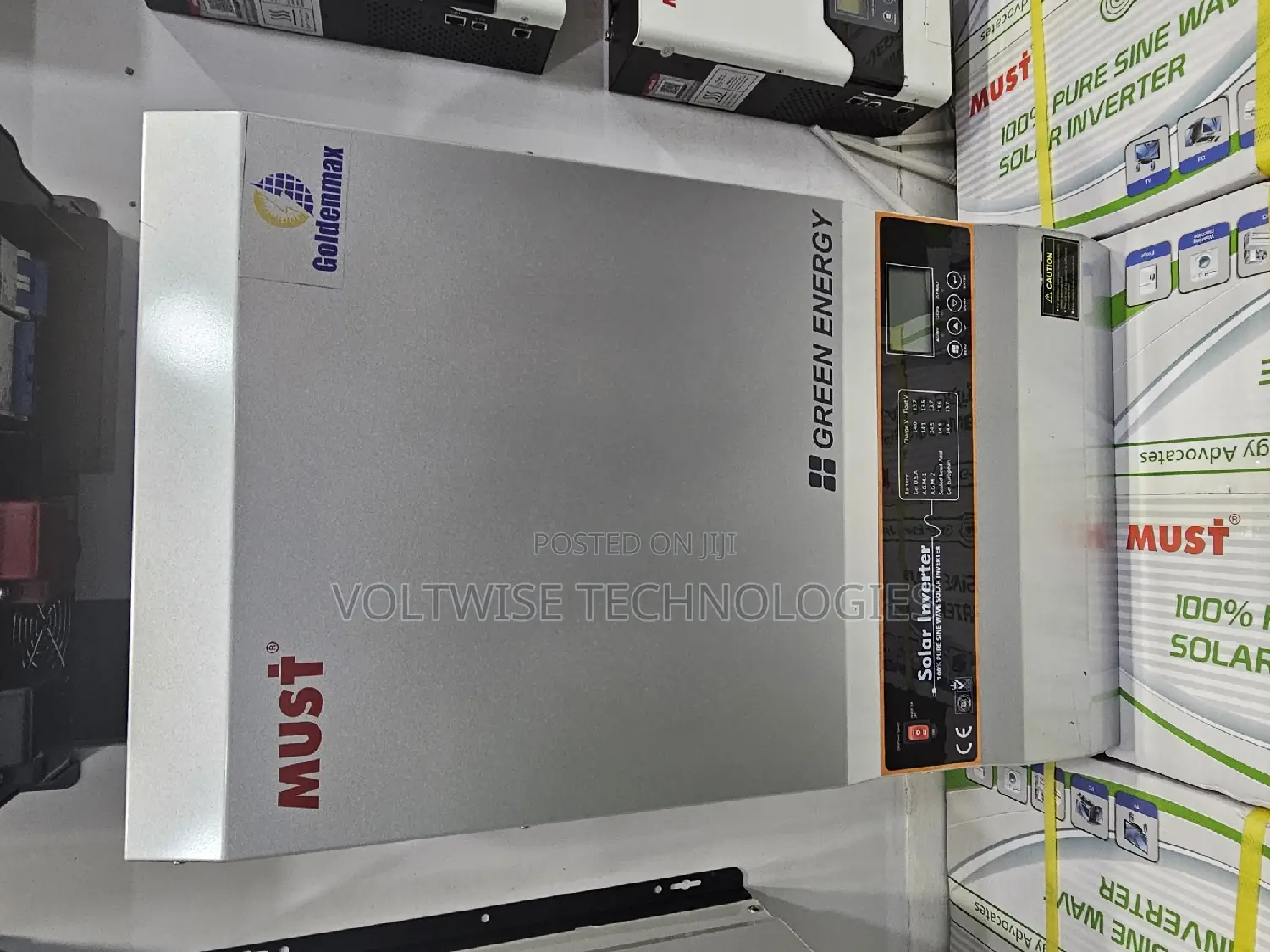

10kva Must Hybrid Inverter 48V (Pv3500 Pro)
Must Inverter
Brand
Solar Inverters
Type
10kVA
Inverter Power
160amps
Inverter Rated Current
48 V
Inverter Voltage
Brand New
Condition
Store address
Nairobi • Nairobi Central
Cross Rd Hse, Ground Floor, Charles Rubia Rd, Nairobi CBD
Near Mololine House. Visit Voltwise Technologies on the ground floor of Cross Rd Hse.
Closed
• Mon - Sat, 08:30-18:00
Model pv35 pro- 10k
nominal battery system voltage 48vdc
inverter output
rated power 10.0kw
surge rating 30000va
capable of starting electric motor 5hp
waveform pure sine wave / same as input (bypass mode)
nominal output voltage rms 220v / 230v / 240vac (±10%rms)
output frequency 50hz / 60hz ± 0.3hz
inverter effciency(peak) >88%
line mode efficiency >95%
power factor 1
typical transfer time 20ms(max)
ac input
voltage 230vac
selectable voltage range 90-280 vac (apl)
frequency range 50hz / 60hz
battery
low battery voltage cutoff 20-24vdc for 24vdc mode (40-48vdc for 48vdc mode)
low battery voltage recover 21-25vdc for 24vdc mode (42-50vdc for 48vdc mode)
high battery voltage cutoff 30vdc for 24vdc mode (60vdc for 48vdc mode)
high battery voltage recover 28.5vdc for 24vdc mode (57vdc for 48vdc mode)
