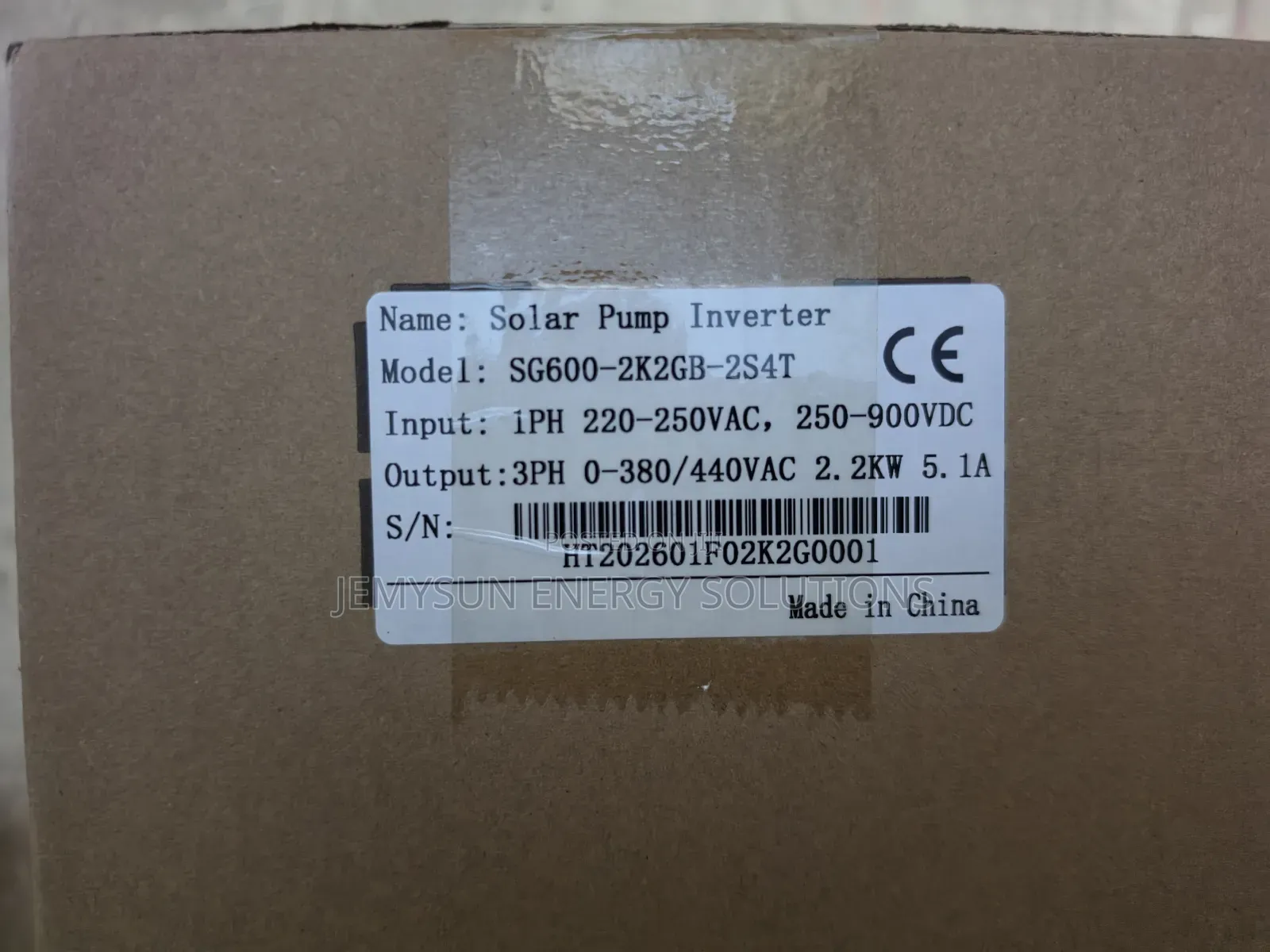

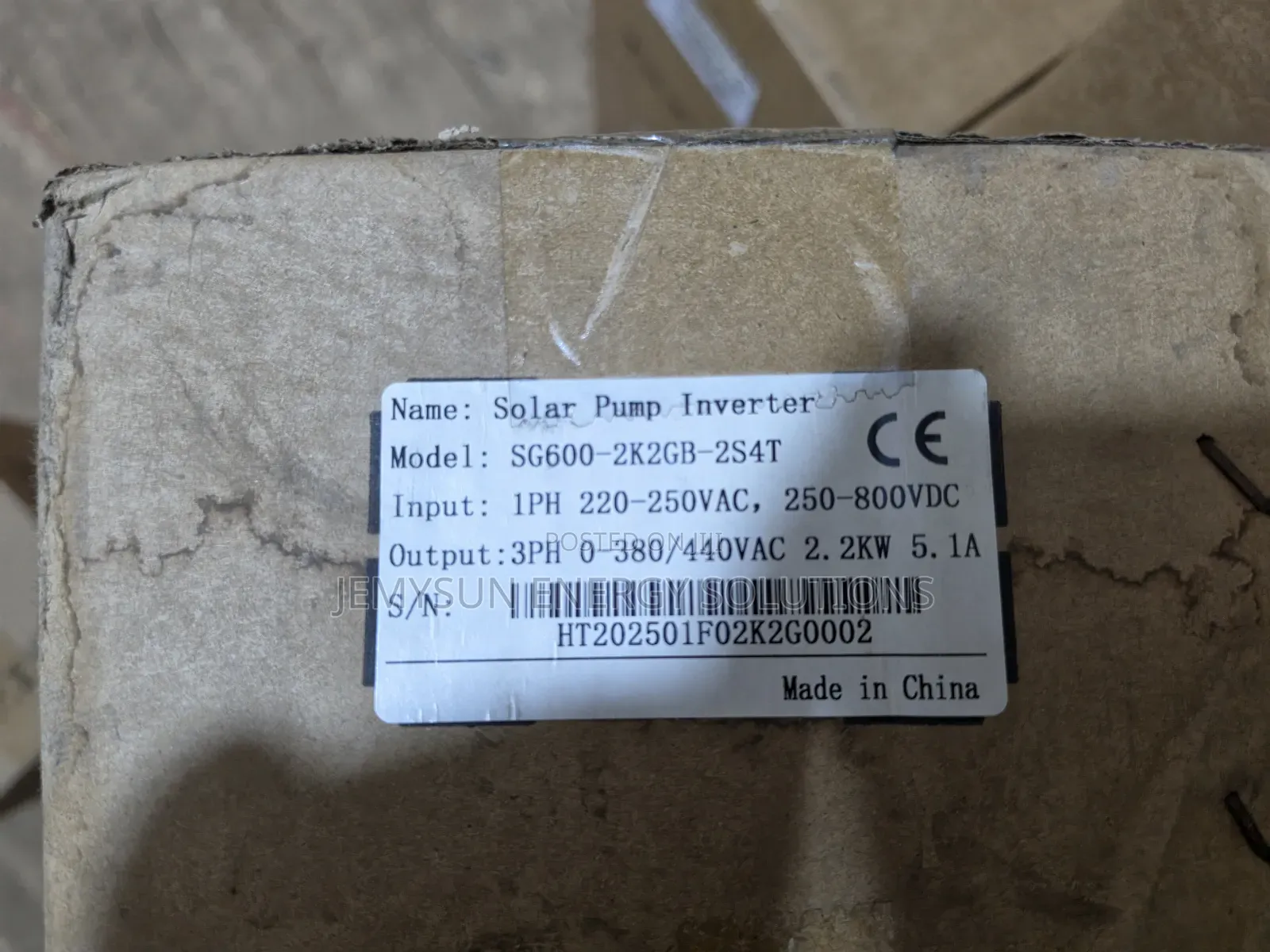

2.2kW Hybrid Solar SG600 Phase Converter
●The inverters is customized to operate in dual supply (Ac and DC Supply)
●For the 2S4/5T inverter, the 220VAC connect to R and T only, if connect DC solar power, please connect DC to P+ and P-, the DC can’t connect to R and T terminals. The AC and DC solar can’t connect at the some time together, otherwise it will damage the Inverter
● High speed running when sunlight radiation is good, frequency reduce fast when sunlight is become weak, stop running when output freqèuency lower lower limit frequency setting.
● Built in automatic sleep-wake up function
●Dry run protection, Pumps loss phase protection, over current protection...
●Pumps maximum current protection
●Low input power protection
●Lowest stop frequency protection
●Low water probe sensor, and water level control function
