5.12kwh 24v 200ah Felicity Lithium Battery

+1

1

Felicity

Brand

Deep Cycle Batteries

Type

200aH

Battery Capacity

Brand New

Condition

24 V

Rated Voltage

5.12kWh

Total Battery Energy

Store address

Nairobi • Nairobi Central

GABERONE PLAZA ALONG GABERONE LANE ROOM T-17 3RD FLOOR

Open

• Mon - Sat, 09:00-18:00

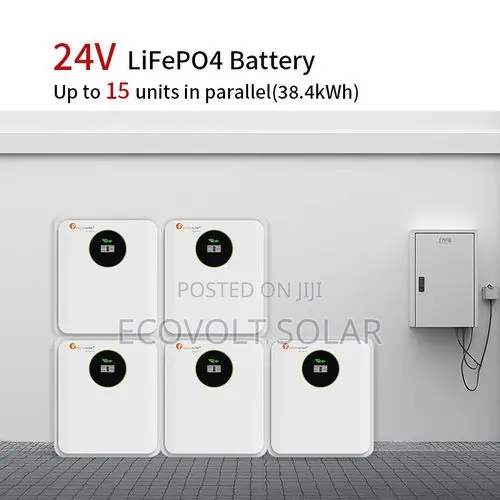

Key Specification Battery Type: Lithium Iron Phosphate (LiFePO4) Nominal Voltage: 24V (≈25.6V actual) Capacity: 200Ah Energy: 5.12 kWh (24V × 200Ah) Electrical Parameters Operating Voltage Range 22.4V – 28.8V Full Charge Voltage ~28.8V Recommended Charge/Discharge Current ≤120A Max Current (short burst) ~150A Max Power Output ~3000W continuous Performance Cycle Life 4000 – 6000+ cycles @ 80% DoD Depth of Discharge (DoD) ≥95% Efficiency: >95% (typical lithium performance) Battery Management System (BMS) Built-in smart BMS with protection against Overcharge Over-discharge Overcurrent Short circuit Over-temperature Supports communication RS485 / CAN (for inverter integration) Weight: ~39 – 41 kg Dimensions: approx. 480 × 430 × 190 mm Mounting: Wall-mounted or floor-standing Can connect up to 12–15 batteries in parallel for larger systems
