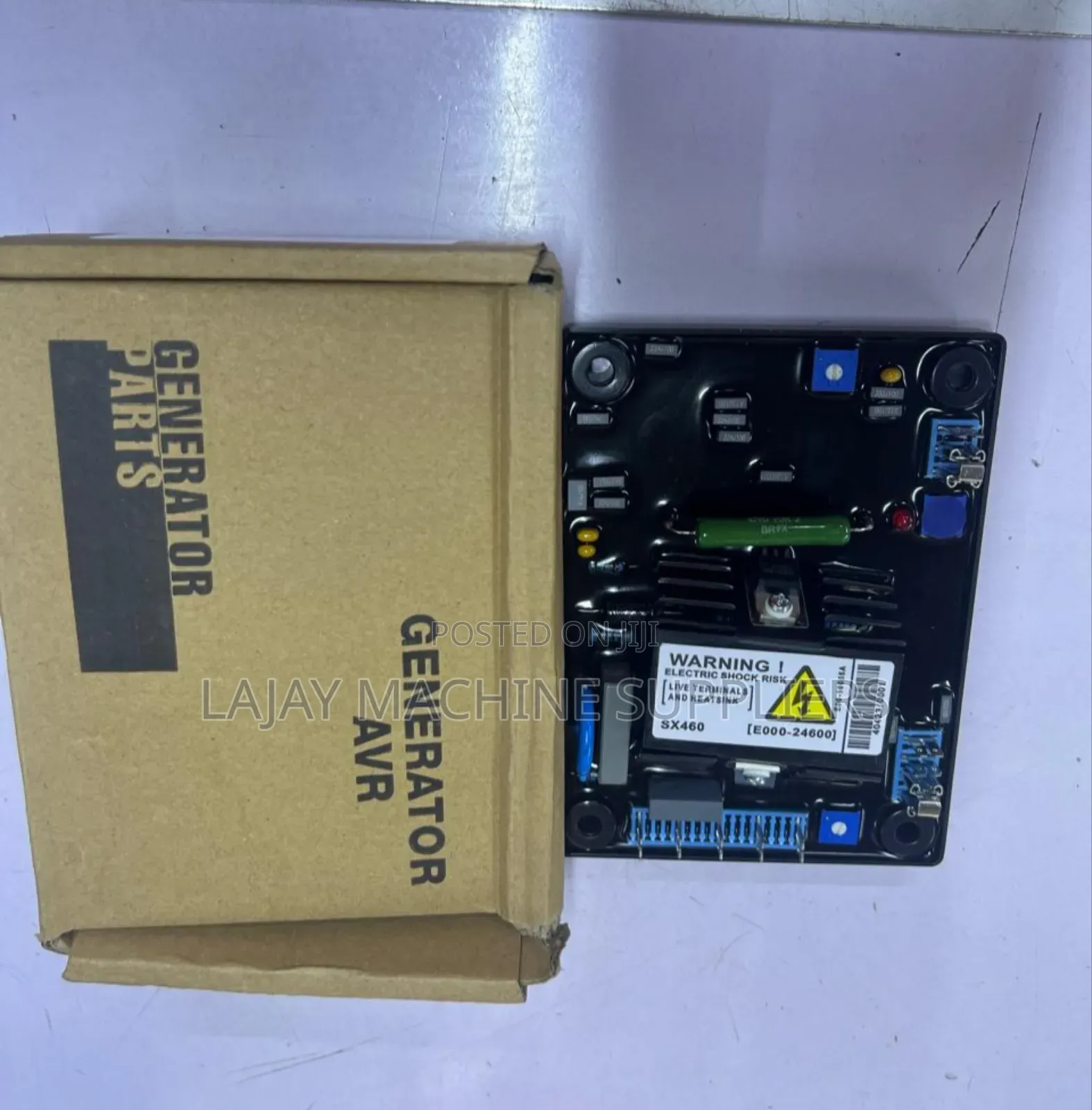

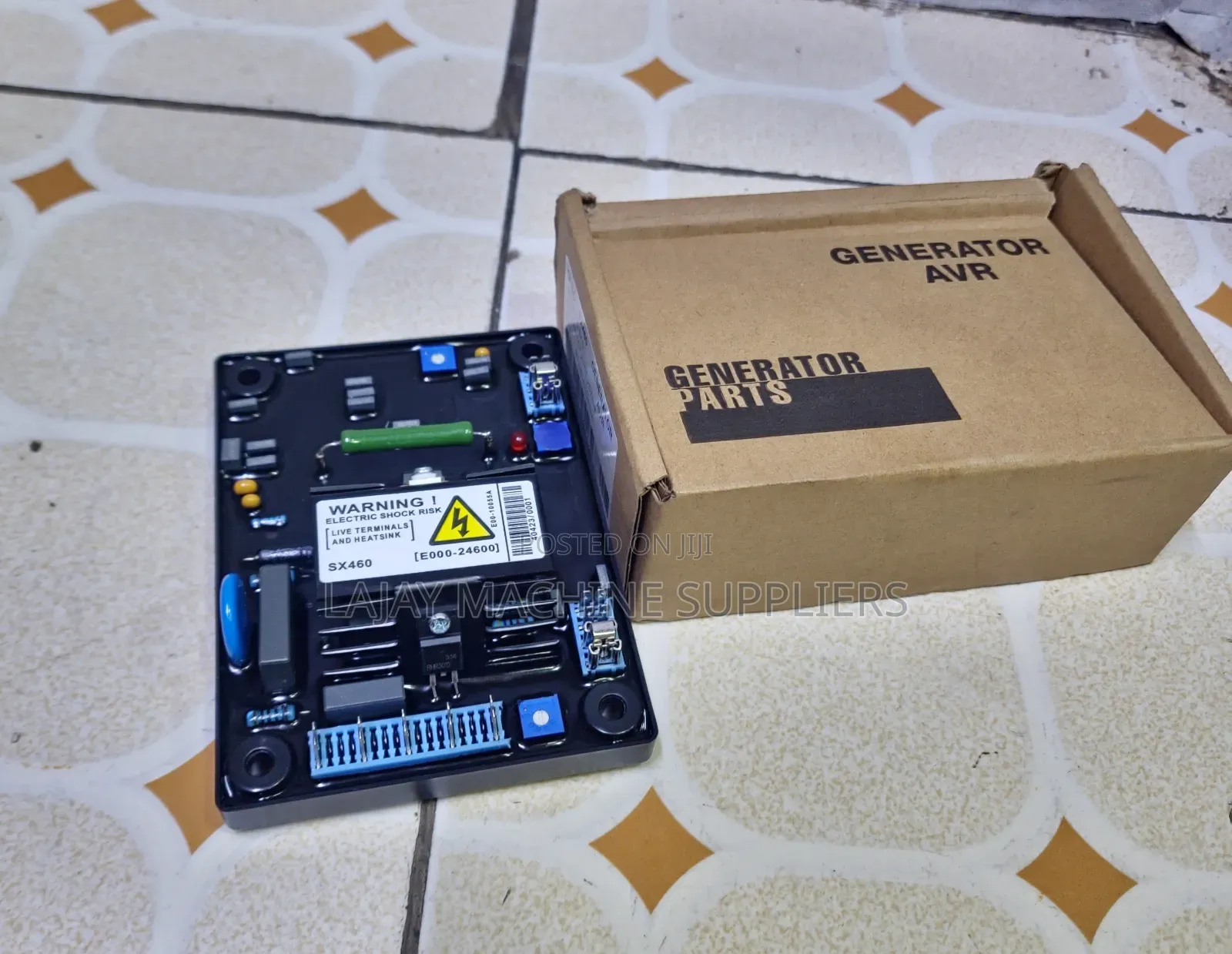

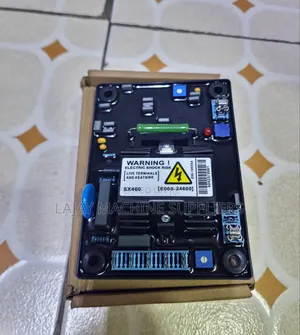

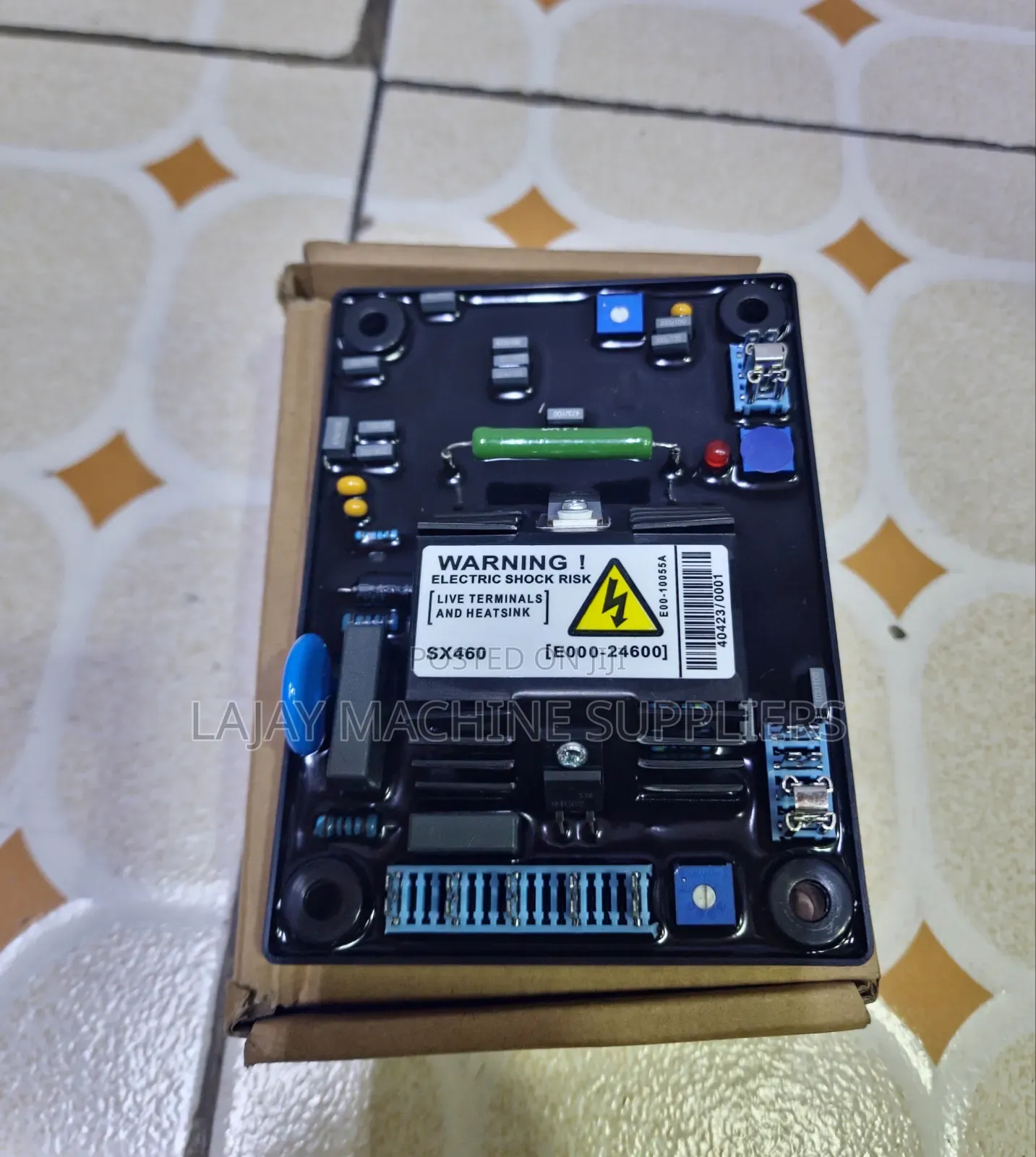

Automatic Voltage Regulator Sx460
Honda
Brand
Voltage Regulators
Type
240V
Max Continuous Voltage
Automatic Recovery, Current Measurement, Over-Current Protection, Over-Voltage Protection, Under-Voltage Protection, Voltage Measurement
Functions
2
Phases
30amps
Amperage
Brand New
Condition
Store address
Nairobi • Nairobi Central
NGARIAMA ROAD
We're located at Ngariama road Nairobi CBD EPCOM BUSINESS CENTER GROUND FLOOR SHOP No 52
Closed
• Mon - Sat, 08:30-18:00
SX460 AVR – Automatic Voltage Regulator – Exact Generic Replacement
INPUT: Voltage: Jumper selectable 95-132V ac or 190-264V ac, Frequency: 50-60 Hz nominal, Phase: 1
OUTPUT: Voltage: Max 90V dc at 207V ac input, Current: Continuous 4 A dc, Intermittent 6 A for 10 secs, Resistance: 15 ohms minimum
Regulation: +/-1.0% * Thermal drift: 0.05% per deg. C change in AVR ambient
Unit power dissipation: 10 watts maximum – Build up voltage4 Volts @ AVR terminals
Soft Shell
