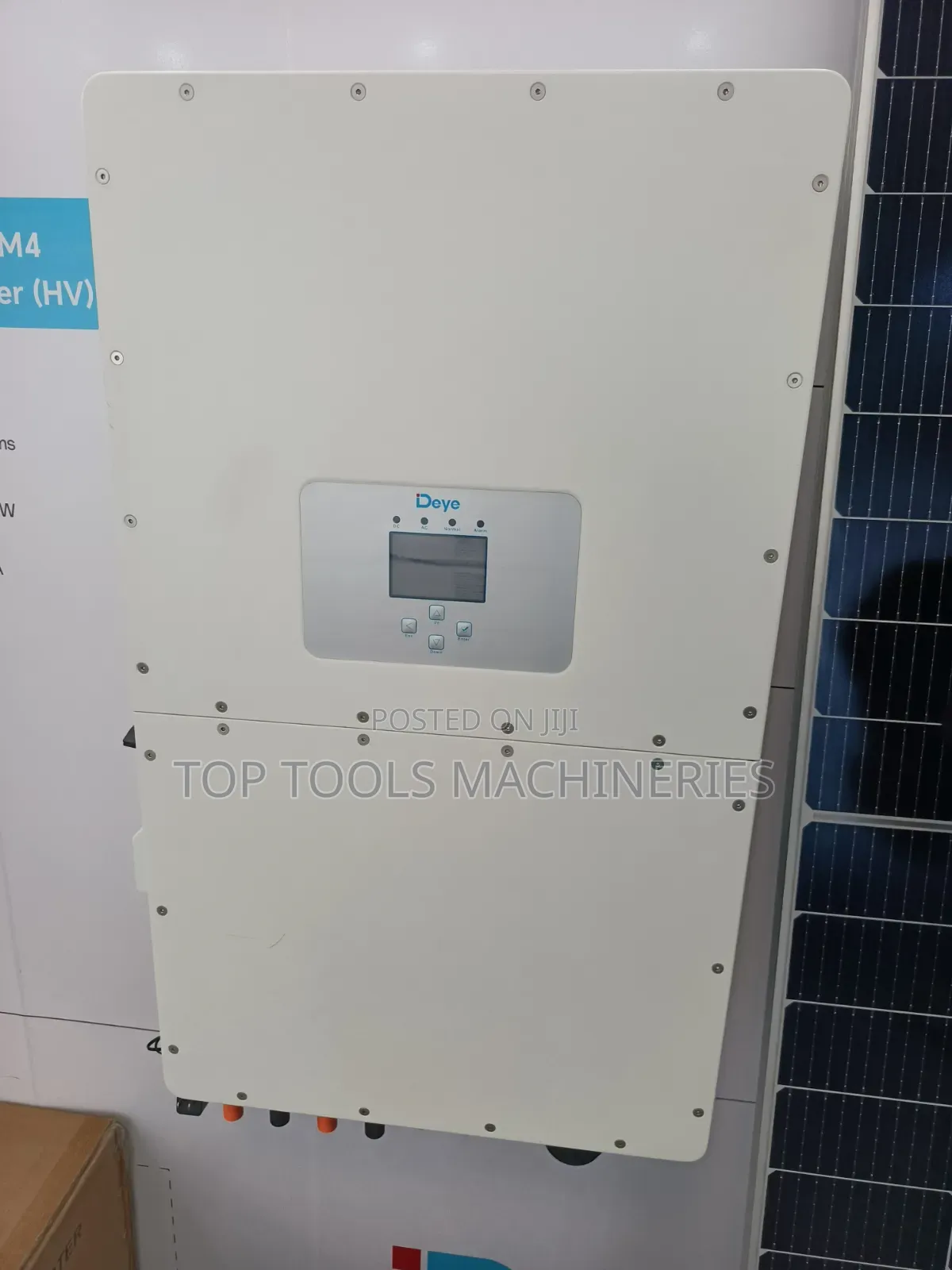

The deye sun-50k-sg01hp3-eu-bm4 is a commercial-grade 50kw three-phase hybrid inverter designed for large factories, office buildings, farms, hotels, schools, and industrial solar installations. it works with solar panels, high-voltage lithium batteries, the utility grid, and generators.
rated ac output power 50kw
phase type three-phase (230/400v)
battery type high-voltage lithium
battery voltage range 160v–800v
mppt trackers 4
pv strings 8 (2 per mppt)
max pv input power 100kw
max dc input voltage 1000v
mppt voltage range 150v–850v
max efficiency 97.6%
protection rating ip65
parallel operation up to 10 units
supports on-grid, off-grid, and hybrid operation
four mppts allow solar panels to be installed on multiple roof
can be paralleled up to 500kw total system capacity (10 units × 50kw).
