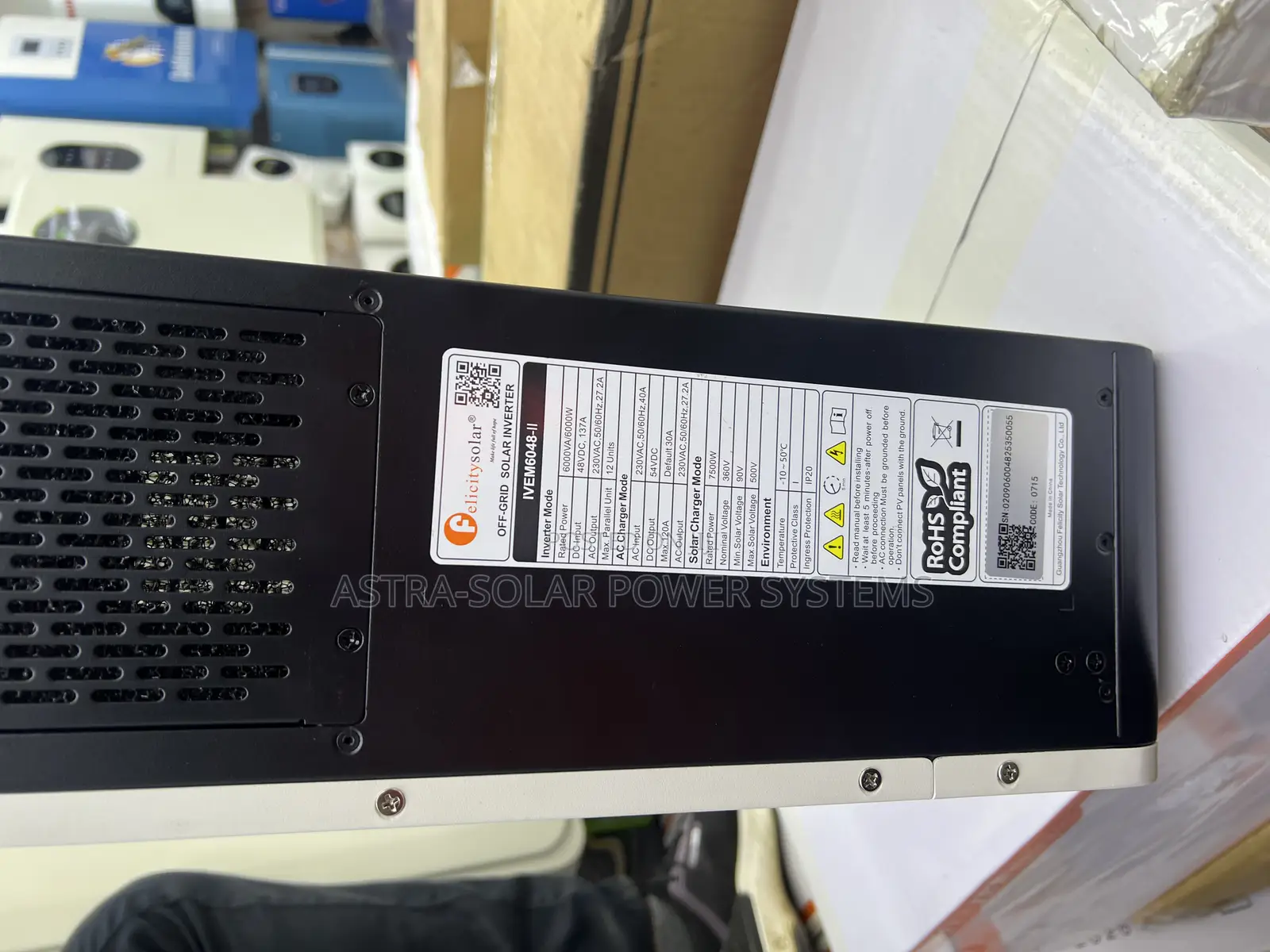

• Model: IVEM6048-II
• Rated Power: 6000VA / 6000W
• Battery System: 48VDC (137A)
• AC Output: 230VAC, 50/60Hz, 27.2A
• AC Input (Grid/Generator): 230VAC, 50/60Hz, 40A
• AC Charger Output: 54VDC
• Maximum AC Charging Current: 120A (default 30A)
• Solar Charging: Built-in MPPT solar charger
• Max PV Power: 7500W
• PV Voltage Range:
• Nominal: 360V
• Minimum: 90V
• Maximum: 500V
• Parallel Capability: Up to 12 units
• Operating Temperature: -10°C to +50°C
• Protection Class: IP20
• Compliance: RoHS compliant
Designed for reliable off-grid and hybrid solar systems, this inverter supports high-power loads, scalable parallel operation, and efficient solar energy utilization for residential and commercial applications.
