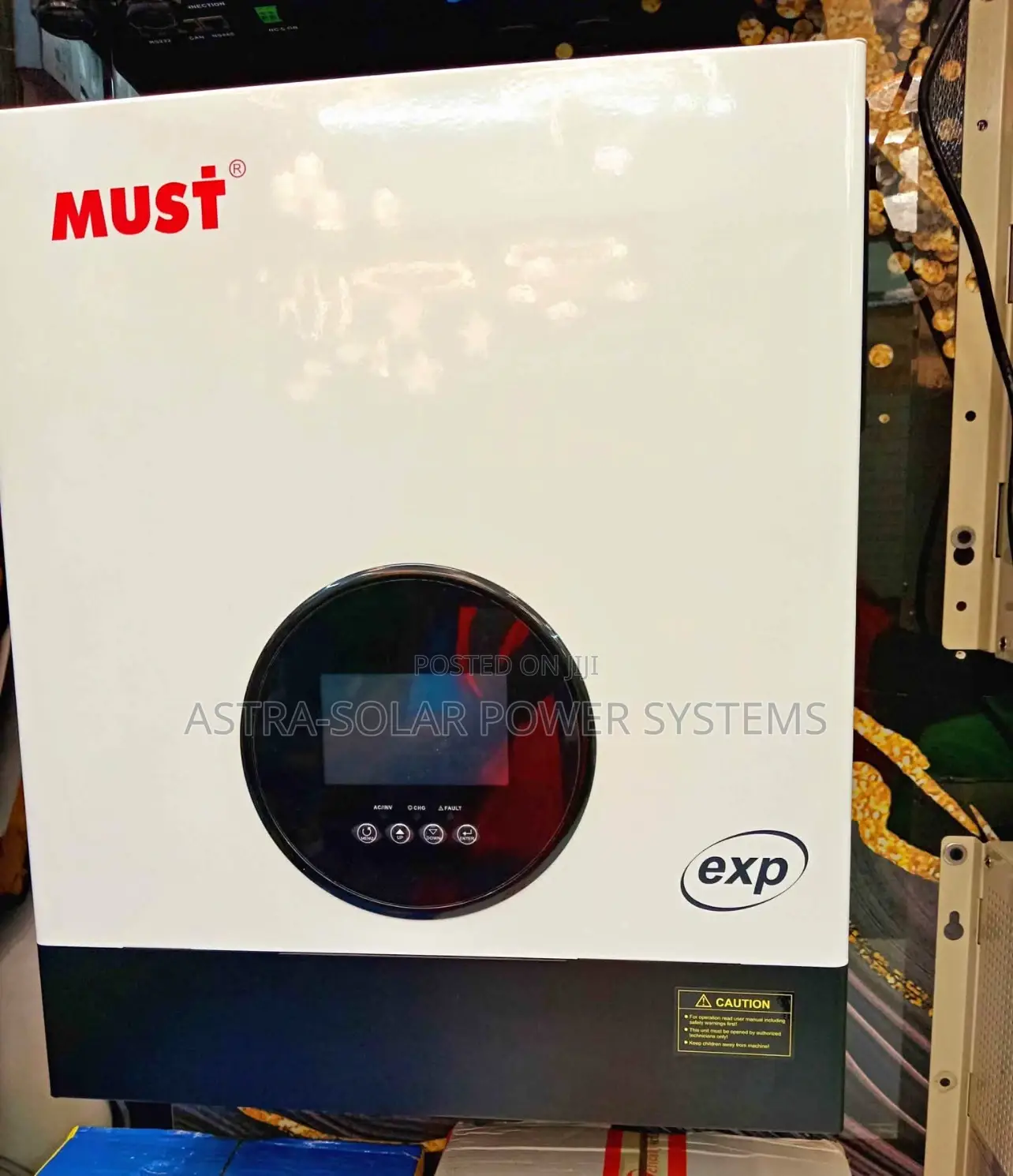

Must 10kva 48v High Frequency Hybrid Inverter

+1

2

Store address

Nairobi • Nairobi Central

Shop no 8, Cross Road House, Charles Rubia Road

Closed

• Mon - Sat, 08:00-18:00

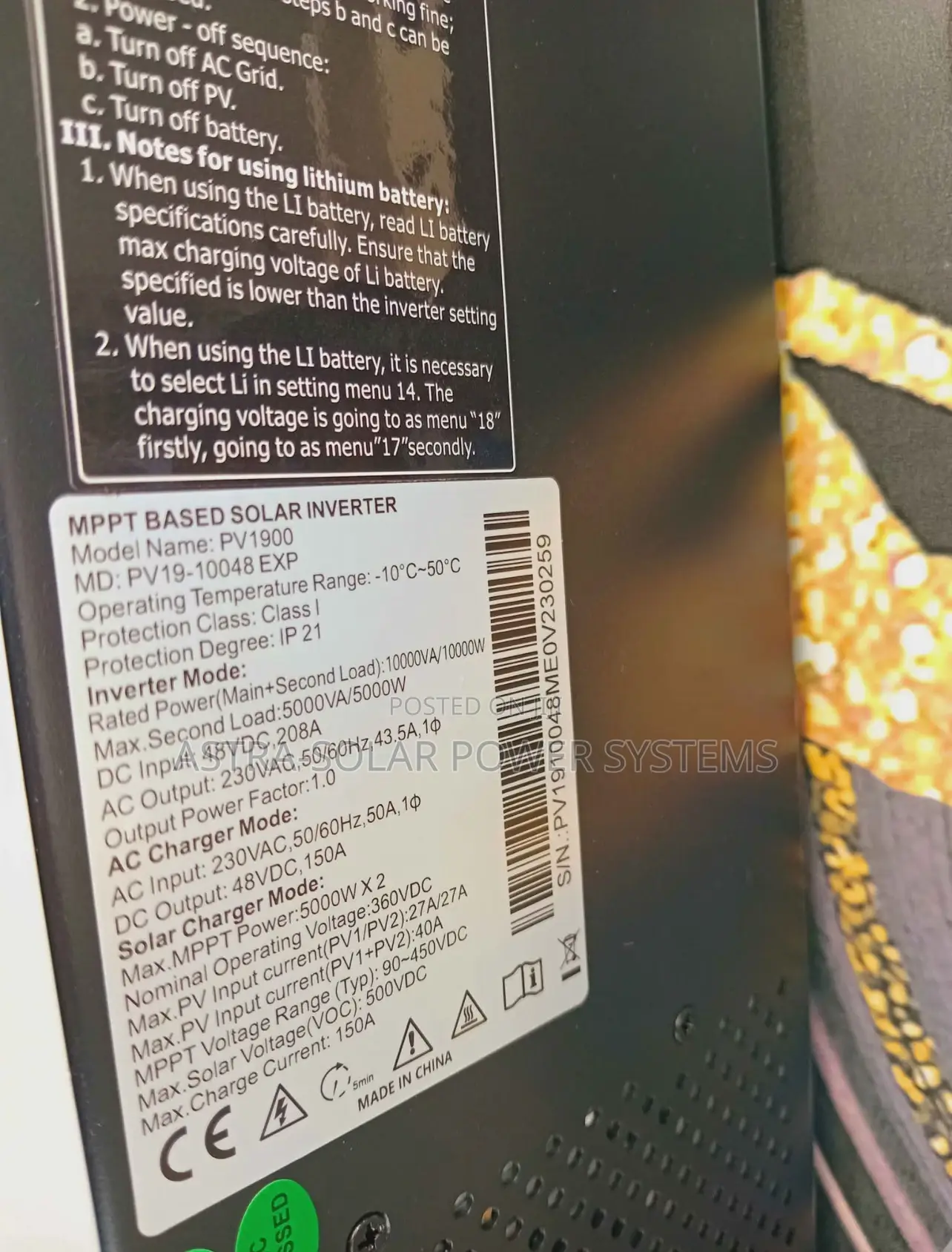

Operating temperature range: -10°c ~ 50°c protection class: class i protection degree: ip21 inverter mode: • rated power (main + second load): 10000va / 10000w • max. second load: 5000va / 5000w • dc input: 48vdc, 208a • ac output: 230vac, 50/60hz, 43.5a, 1φ • output power factor: 1.0 ac charger mode: • ac input: 230vac, 50/60hz, 50a, 1φ • dc output: 48vdc, 150a solar charger mode: • max. mppt power: 5000w × 2 • nominal operating voltage: 360vdc • max. pv input current (pv1 / pv2): 27a / 27a • max. pv input current (pv1 + pv2): 40a • mppt voltage range (typ.): 90 ~ 450vdc • max. pv voltage (voc): 500vdc • max. solar charge current: 150a
