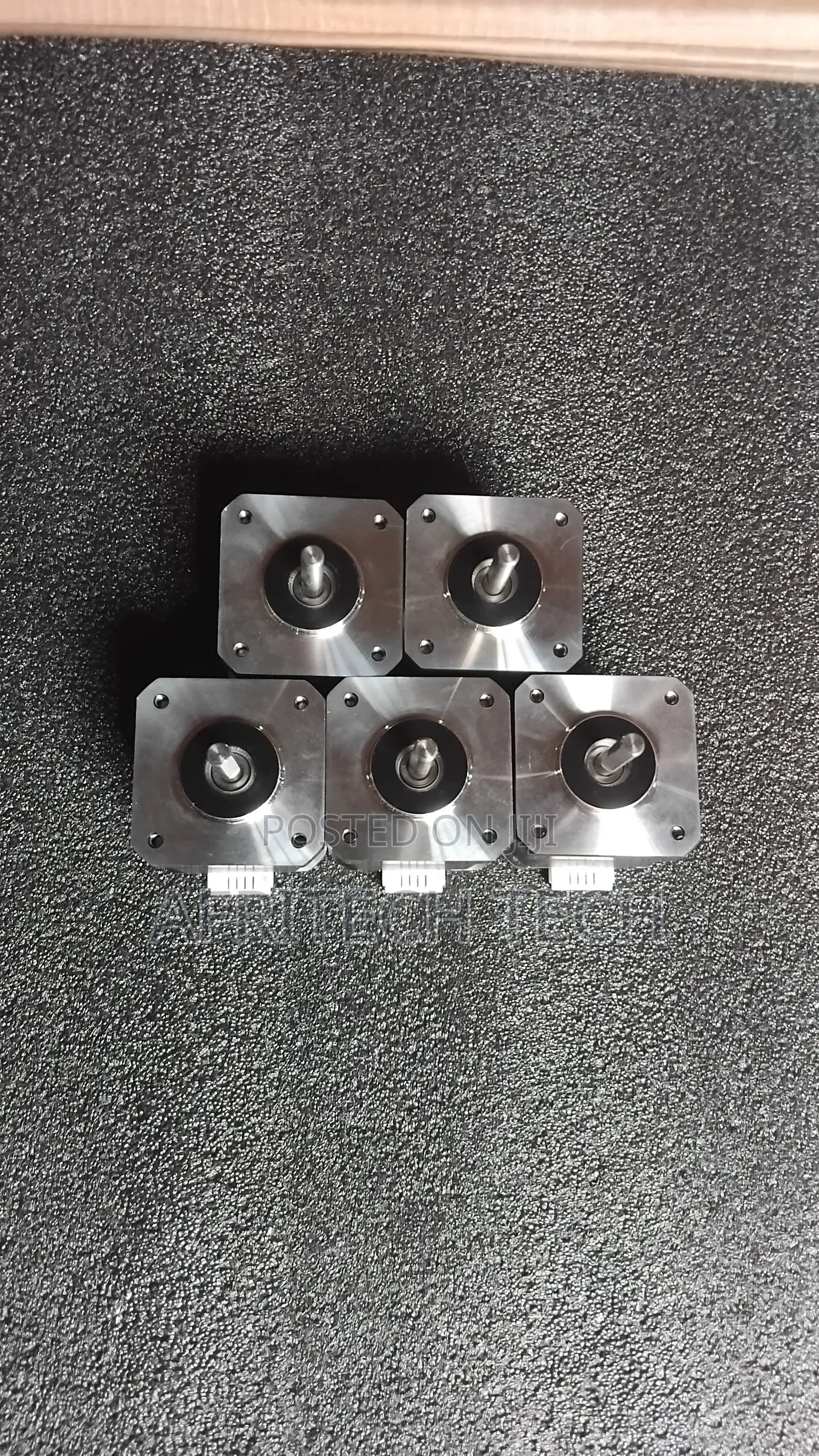

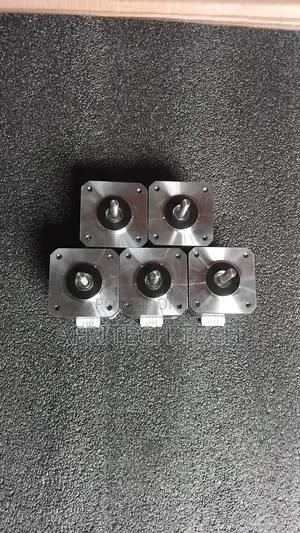

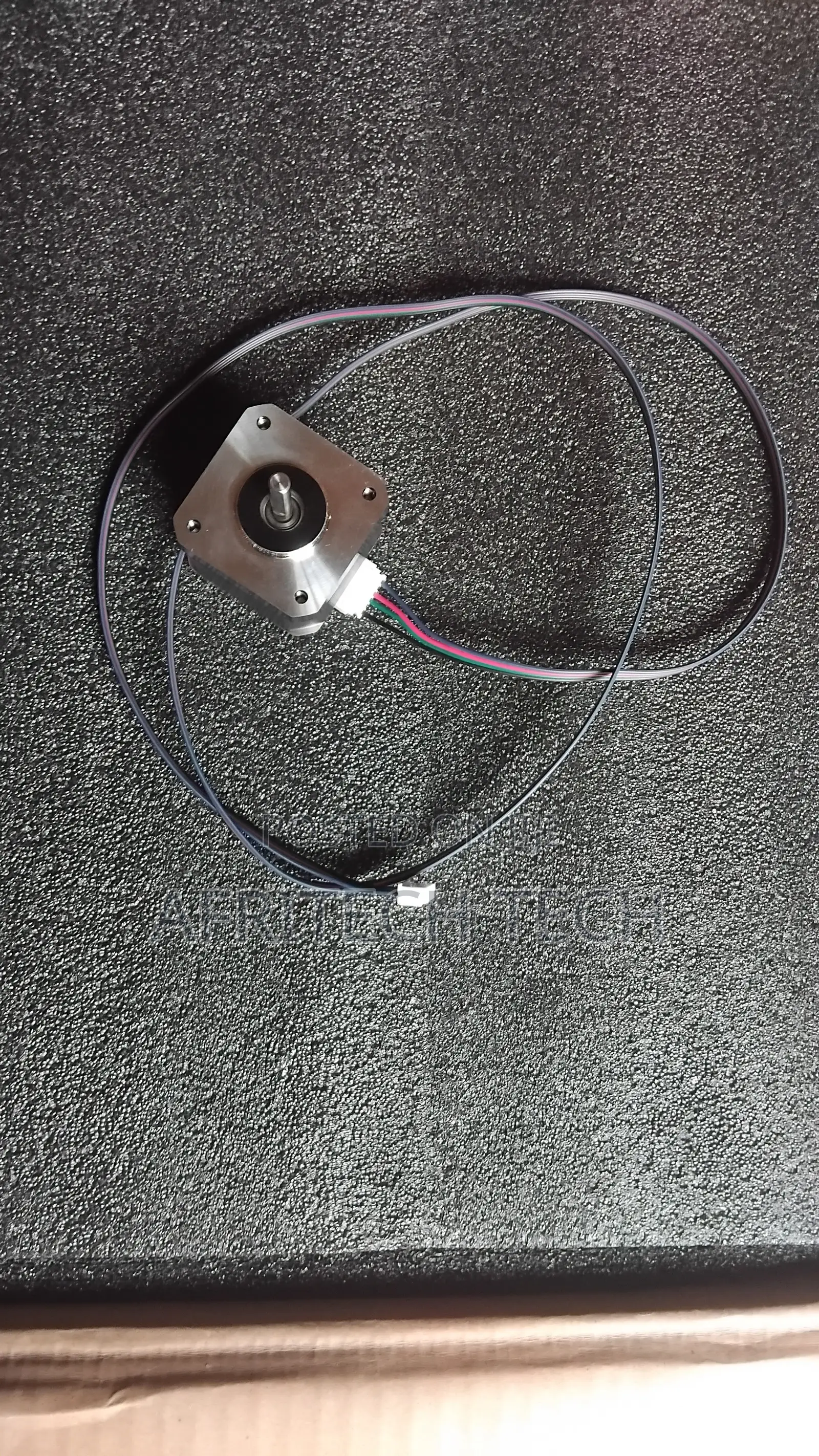

Nema 17 Stepper Motor
Generic
Brand
Electric Motors
Type
0.02kW
Power
2
Phases
Brand New
Condition
Step Angle(degrees):1.8°
Rated Current:DC 1.5A/Phase
Rated Voltage:DC 3.6V
Holding Torque:≥420mN.m
Insulation class:B
Insulation resistance:≥100 MΩ (DC 500V)
Maximum starting rate:≥1500 PPS
Positioning Torque: 15 mN.m REF.
Phase Inductance:3.7*(1±20%)mH/Phase
Electrical strength:AC600V/1mA/1S
Maximum slewing rate:≥1900 PPS
Rotating direction: A-C B-D Clockwise
Phase Resistance(20°C):2.4*(1±15%)Ω/Phase
Phase:2
