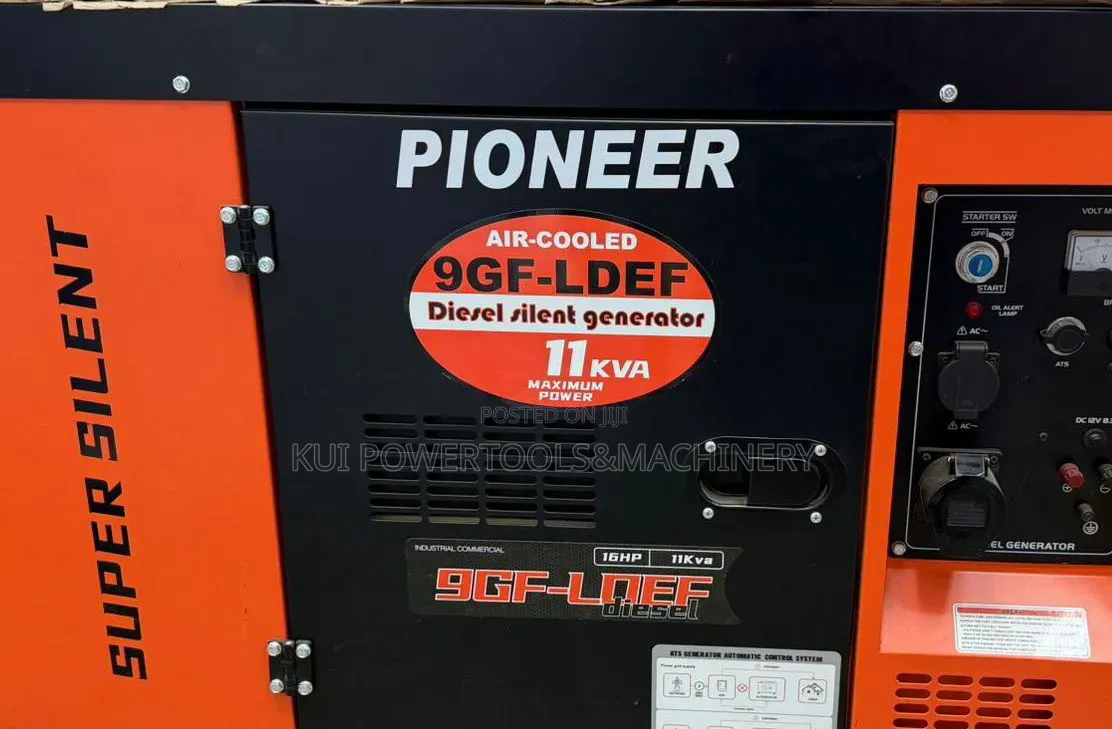

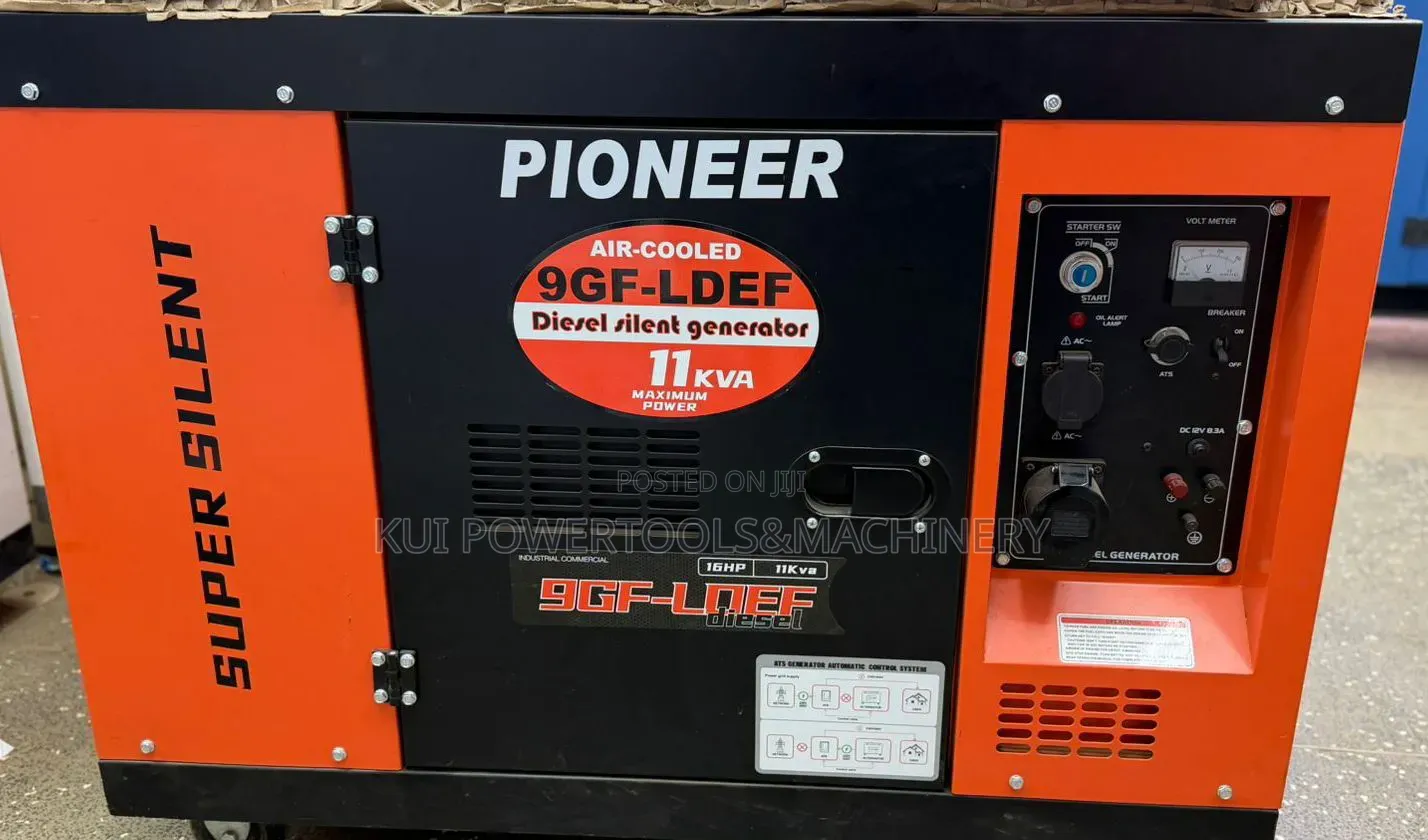

Pioneer 9GF-LDEF Air-Cooled Diesel Silent Generator. Here are the technical specifications for this unit based on the model panel and manufacturer standards:
Engine Power: 16 HP
Engine Type: Vertical single-cylinder, 4-stroke, direct-injection diesel engine
Cooling System: Forced air-cooled
Starting System: 12V Electric start (key ignition) / ATS Auto-Start system option
Maximum AC Output: 11 kVA (~9.0 kW max surge capacity)
Rated AC Output: 8.0 kW continuous
DC Output: 12V / 8.3A
Rated AC Voltage: Available in Dual Voltage 230V / 120V (Single-Phase) or 380V - 400V (Three-Phase) variants depending on regional wiringFrequency: 50Hz / 60Hz dual capability
Enclosure & Structural Build
Acoustic Insulation: "Super Silent" soundproof canopy casing
Average Noise Level: ~71 dB at 7 meters distance
