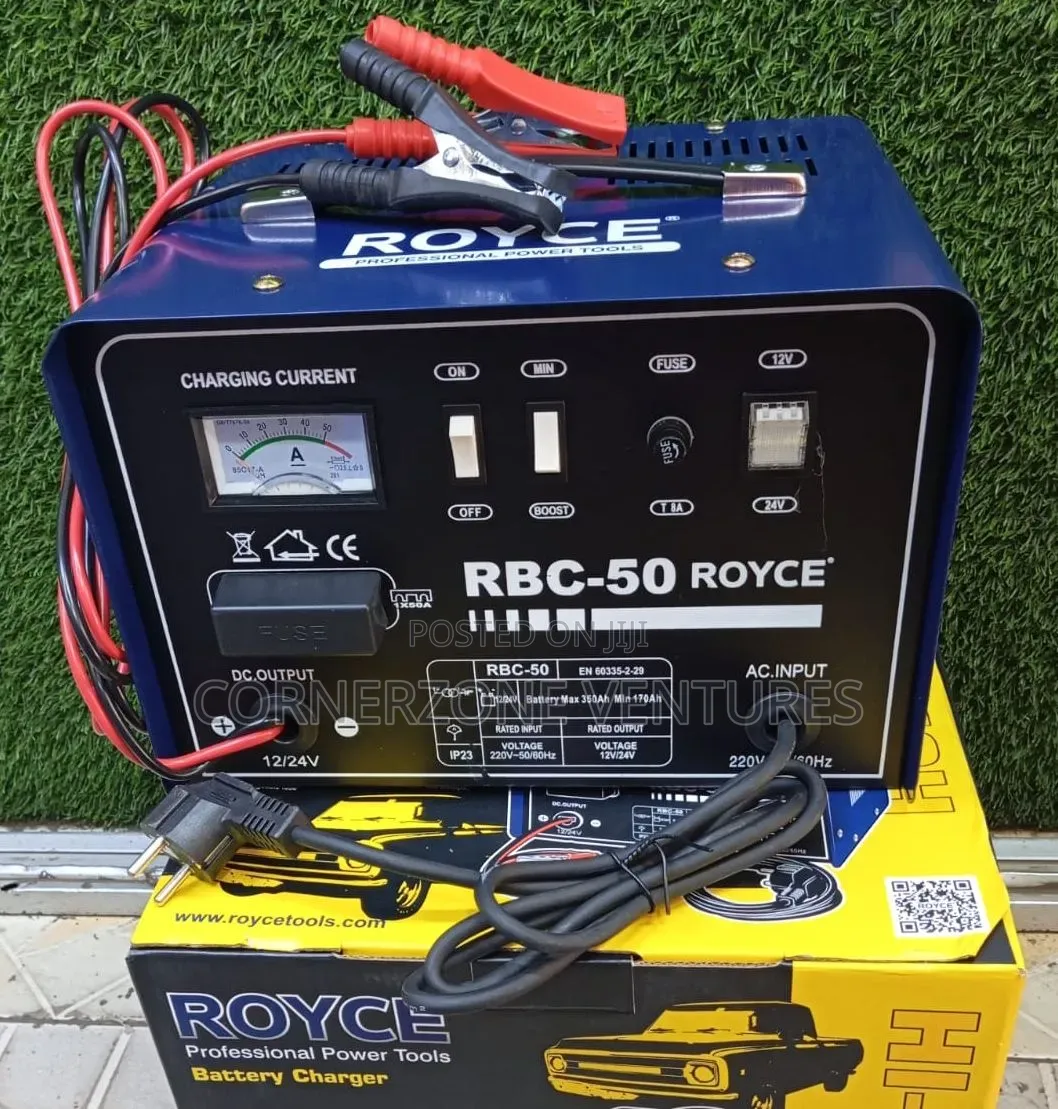

The Royce RBC-50 is a single-phase, portable automotive battery charger designed for charging lead-acid batteries.
Key Technical Specifications
Model: RBC-50Voltage Support: Dual 12V and 24V charging
Input Voltage: 220V–230V ~50/60Hz
Charging Current:Maximum: 50 Amp
Normal Charge: 10 Amps
Quick/Boost Charge: 8 Amps (for 24V) / 5 Amps (for 12V)
Battery Capacity Range: Suitable for batteries between 170Ah and 350AhInsulation Class: H
Protection Rating: IP23C (suitable for use in harsh conditions)
Main Features
Charging Modes: Selector switch for normal or quick (boost) charging.
Monitoring: Built-in ammeter for real-time charging current tracking.
Safety: Integrated protection against over-load and polarity reversal, featuring dash-mounted fuses.
Compatibility: Designed for charging batteries in cars, vans, and light trucks.
