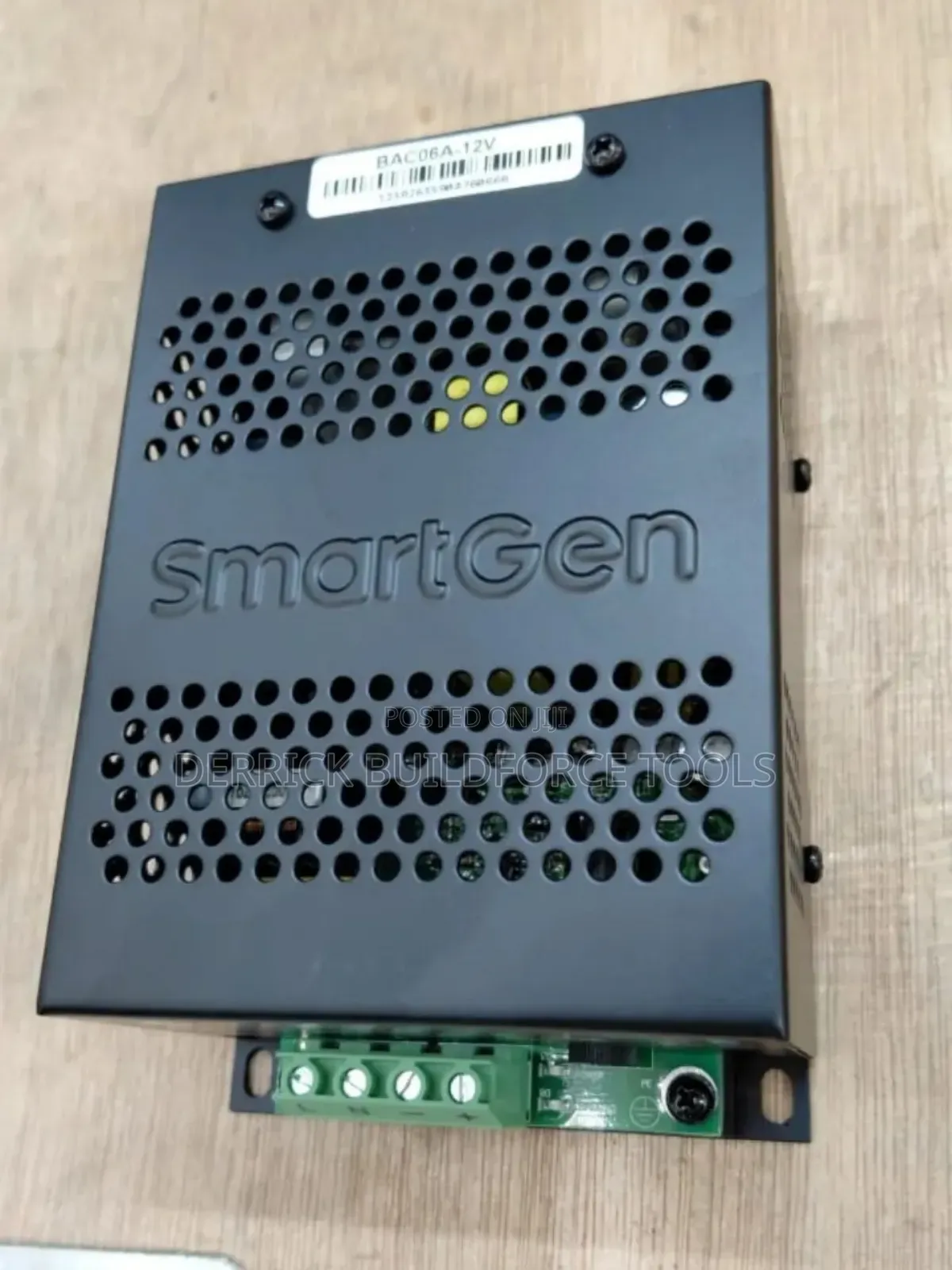

Switch-mode battery charger designed for 12 V lead-acid starting batteries.
Maximum output current: 6 A for 12 V.
Wide AC input voltage range: 90–280 V (or up to ~305V for some variants)
Uses a two-stage charging method: constant-current then constant-voltage, to prevent overcharging and prolong battery life.
Built‐in protections: short-circuit protection and reverse connection protection.
Has adjustable current and voltage via on-board potentiometers.
LED indicators show power status and charging status.
Compact and lightweight: approx 0.65 kg, dimensions ~143 × 96 × 55 mm.
Operating temperature range: –30°C to +55°C; storage temperature: –40°C to +85°C.
