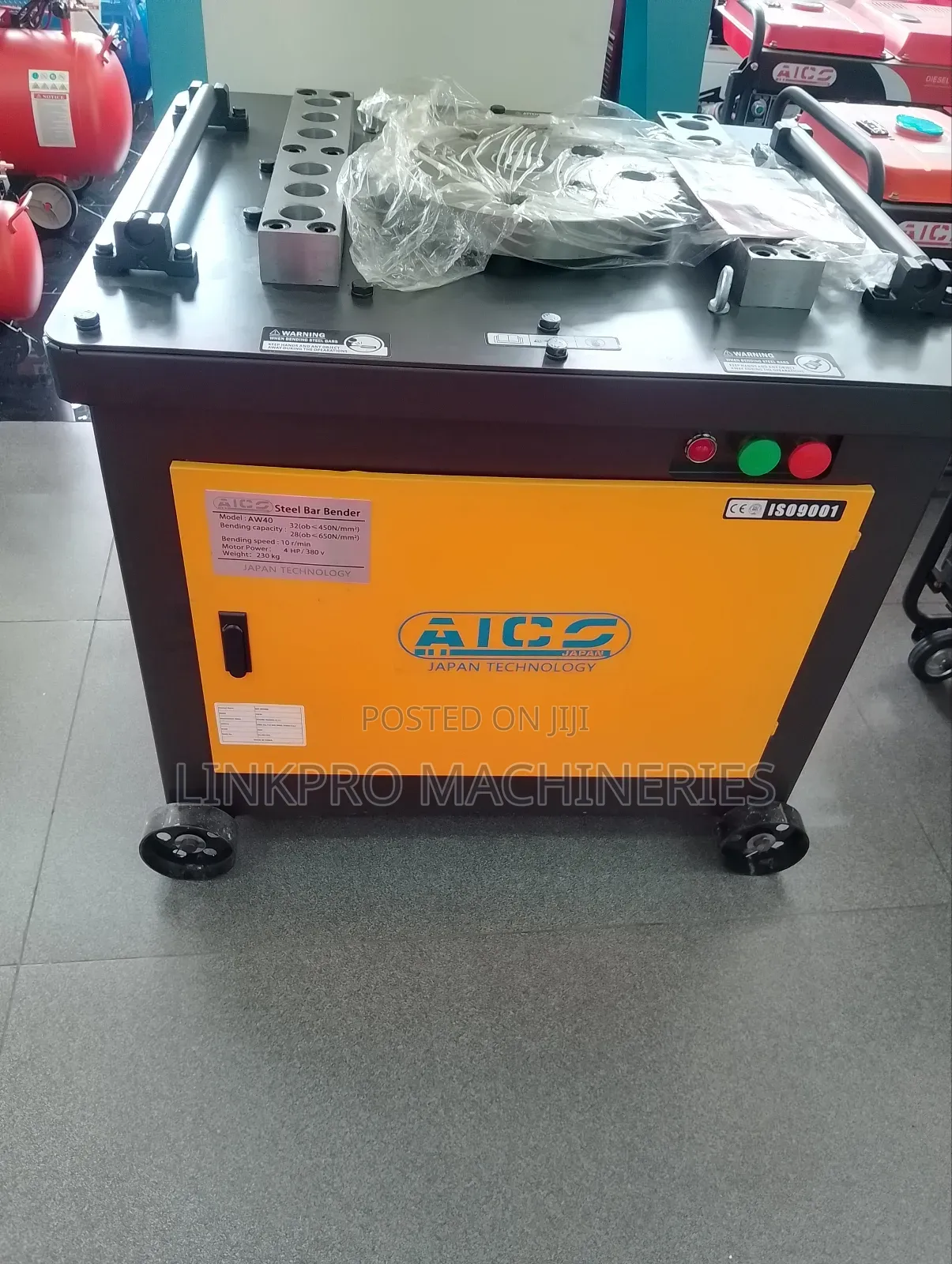

Aico Steel Bar Bender Machine

+1

Aico

Brand

Steel bar bender

Type

Brand New

Condition

Store address

Nairobi • Nairobi Central

Signage Arcade

along Duruma Road

Closed

• Mon - Sat, 08:00-18:00

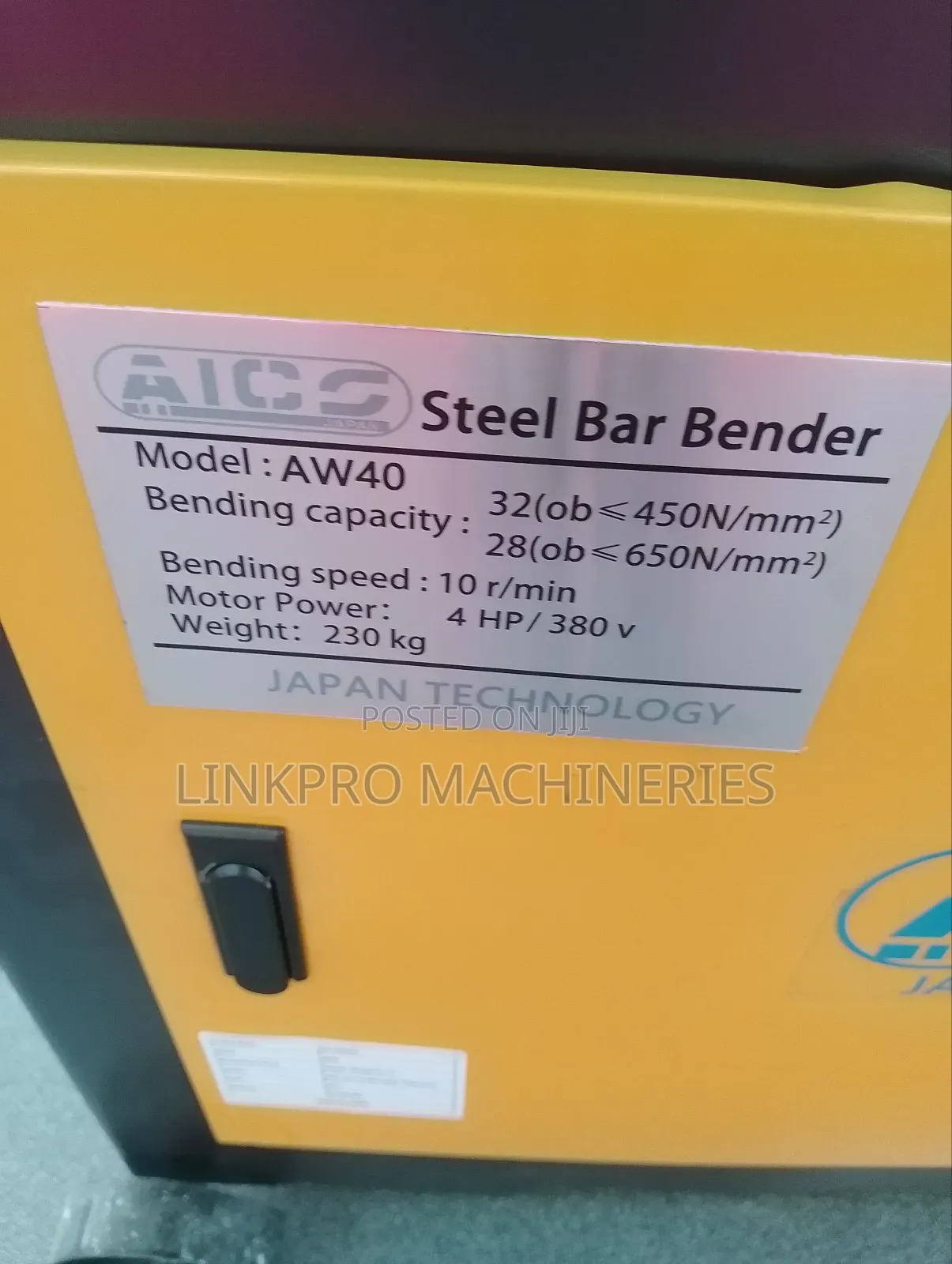

1. Key Specifications Motor Power: 3kW - 4kW / 4 HP-4P (usually 3-phase, 380V/415V, 50Hz). Bending Capacity: Commonly handles rebar from 6mm up to 32mm–42mm, depending on whether it is standard or high-hardness steel. Bending Speed: Working disc speed ranges between 8-20 rpm, allowing for fast bending (e.g., 4-7 seconds for a full 180° bend). Angle Range: 0° - 180° or up to 360° for special shapes. Weight: Ranging from 250 kg to over 450 kg (sturdy industrial construction). 2. Main Features and Structure Motor and Gearbox: Driven by a high-power pure copper coil motor, connected to a fully enclosed gearbox (often planetary gear style) that increases torque and decreases speed for smooth operation. Working Disc and Components: The working disk, stop gauge, and pile heads are made of high-quality alloy steel
