And it is the central part of conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation

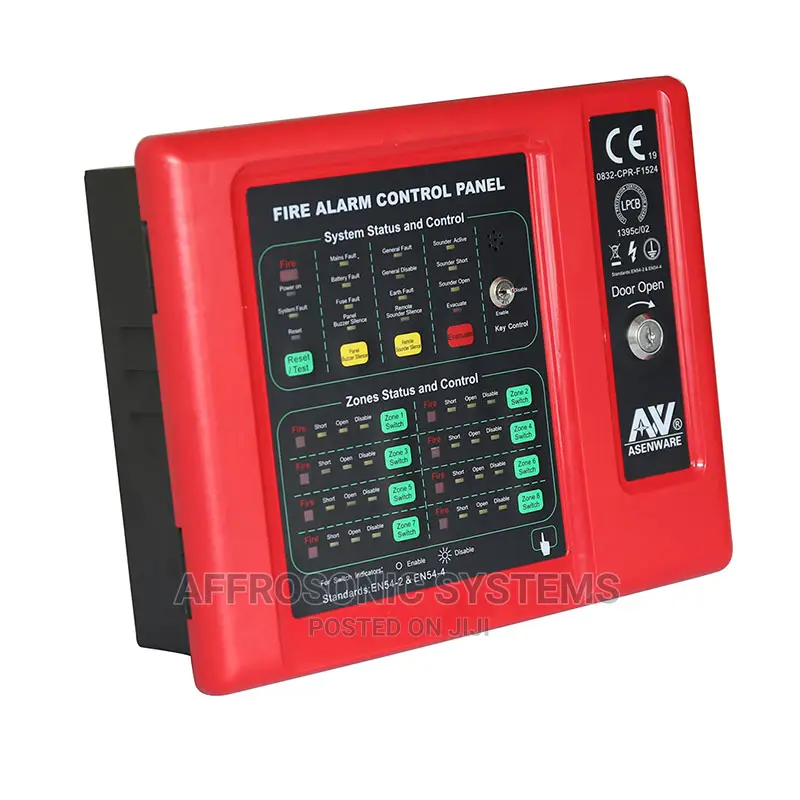

8 Zone Fire alarm control Panel Specification
It is modularized design, the panel can expend from 1 zone to 32 zones easily.
It has 2 level control mode by a lock
It has 24VDC and 5VDC power supply output.
It has FIRE and FAULT signal output.
It has 2 general sounders output.
Each zone has 1 circuit detectors input .
Each zone can be disable by a button.
It has RESET button to reset the panel.
It has SILENCE button to stop BUZZER and SOUNDERS.
It has EVACUATE button to start a manual fire alarm immediately.
It has battery low protection function,
