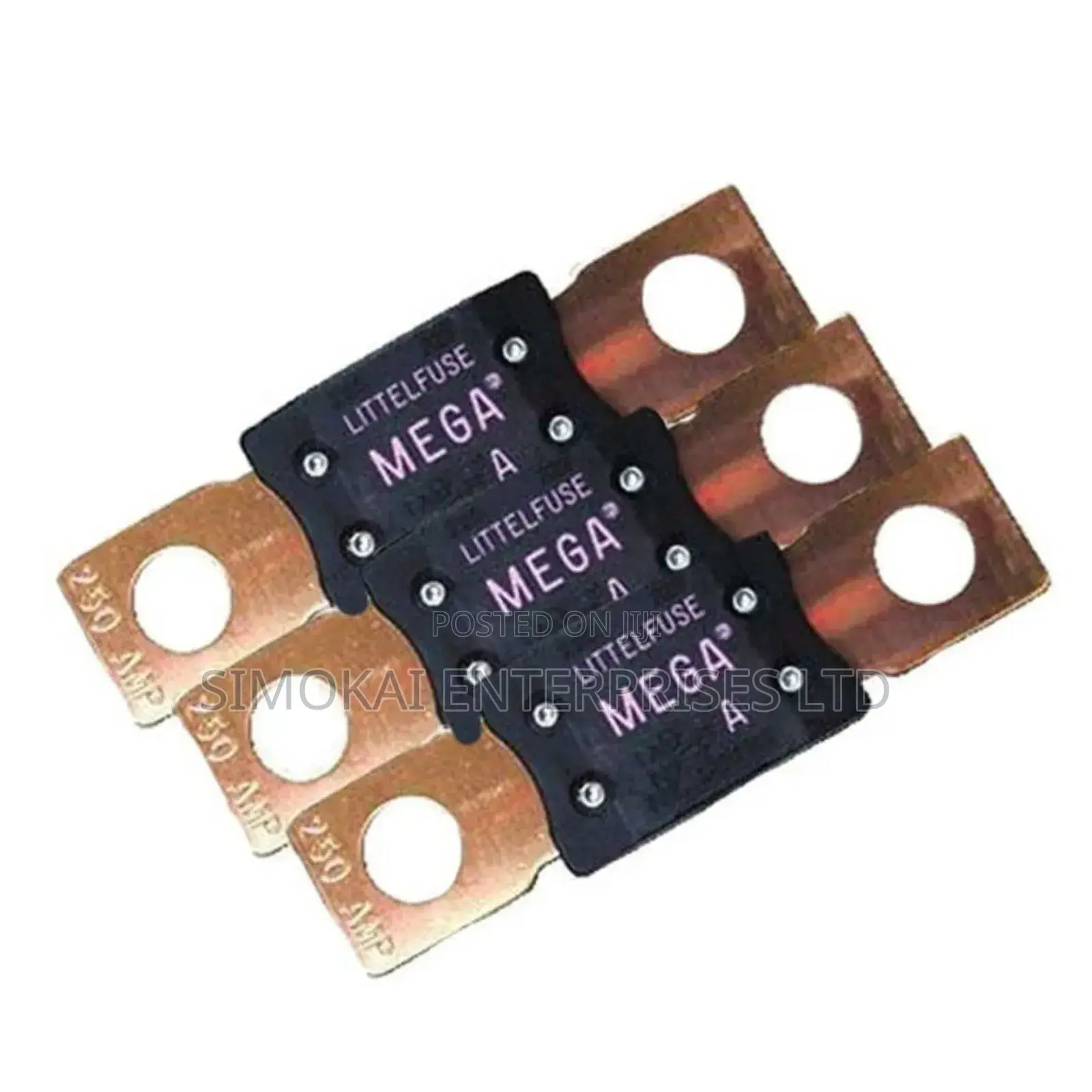

The mega fuse is designed for high current circuit protection up to 500 amperes with diffusion pill technology the mega fuse also provides time delay characteristics. designed and patented by littelfuse, the mega fuse is ideal for battery and alternator protection application and other heavy gauge cables requiring ultra-high current protection.
specifications
voltage rating: 32 vdc
interrupting rating: 2000a @ 32 vdc
recommended environmental temperature: -40 c to + 125 c
terminals materials: copper (silver plated copper available)
housing material: ppa-gf33hs (u.l. 94 flammability rating - hb)
clear top housing material: pes (top) (u.l. 94 flammability rating - v0) ppa-gf33hs (bottom) (u.l. 94 flammability rating - hb)
mounting torque m6: 8-14 nm
mounting torque m8: 12-18 nm complies with: iso 8820-5
sold per piece
