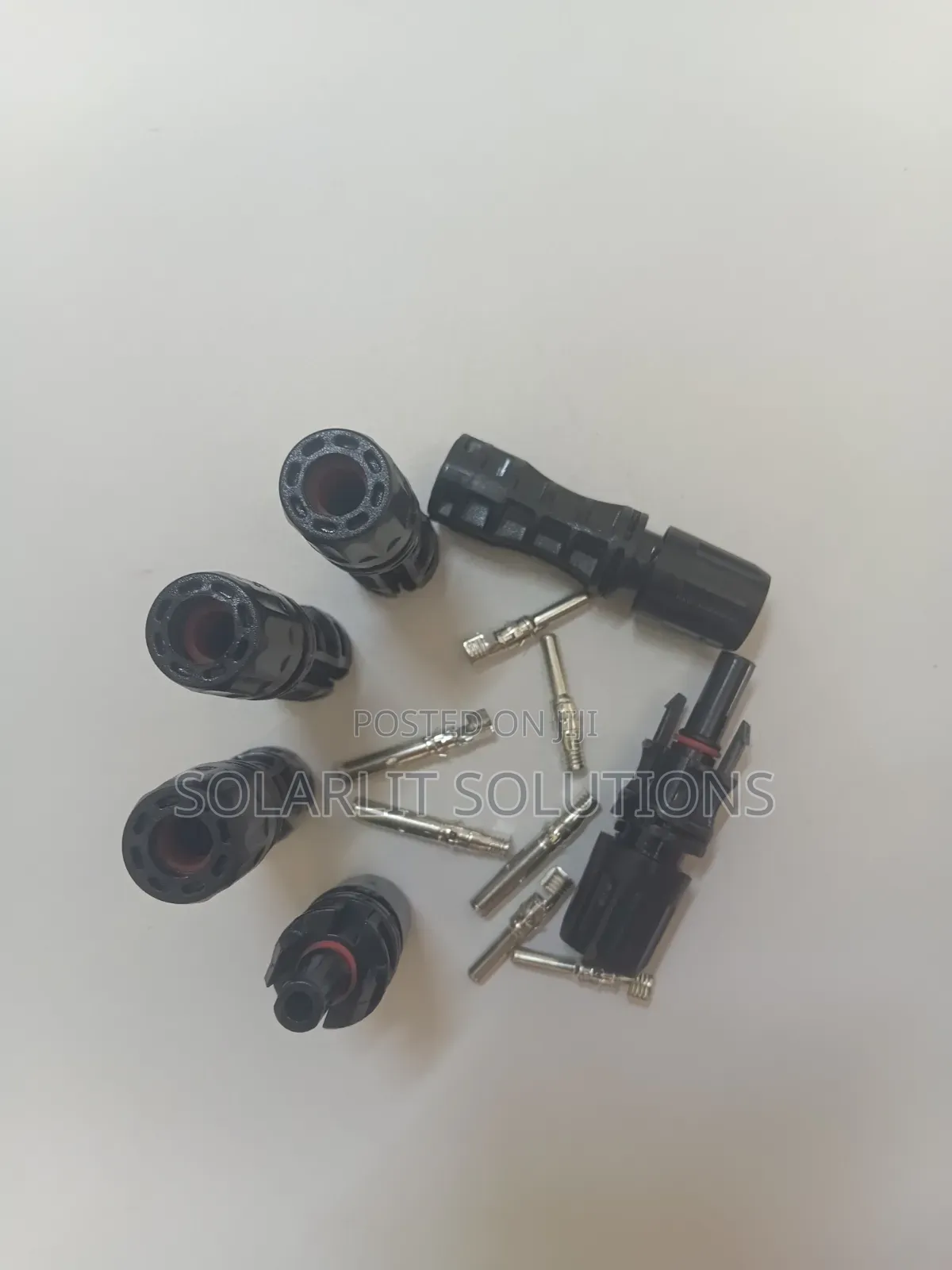

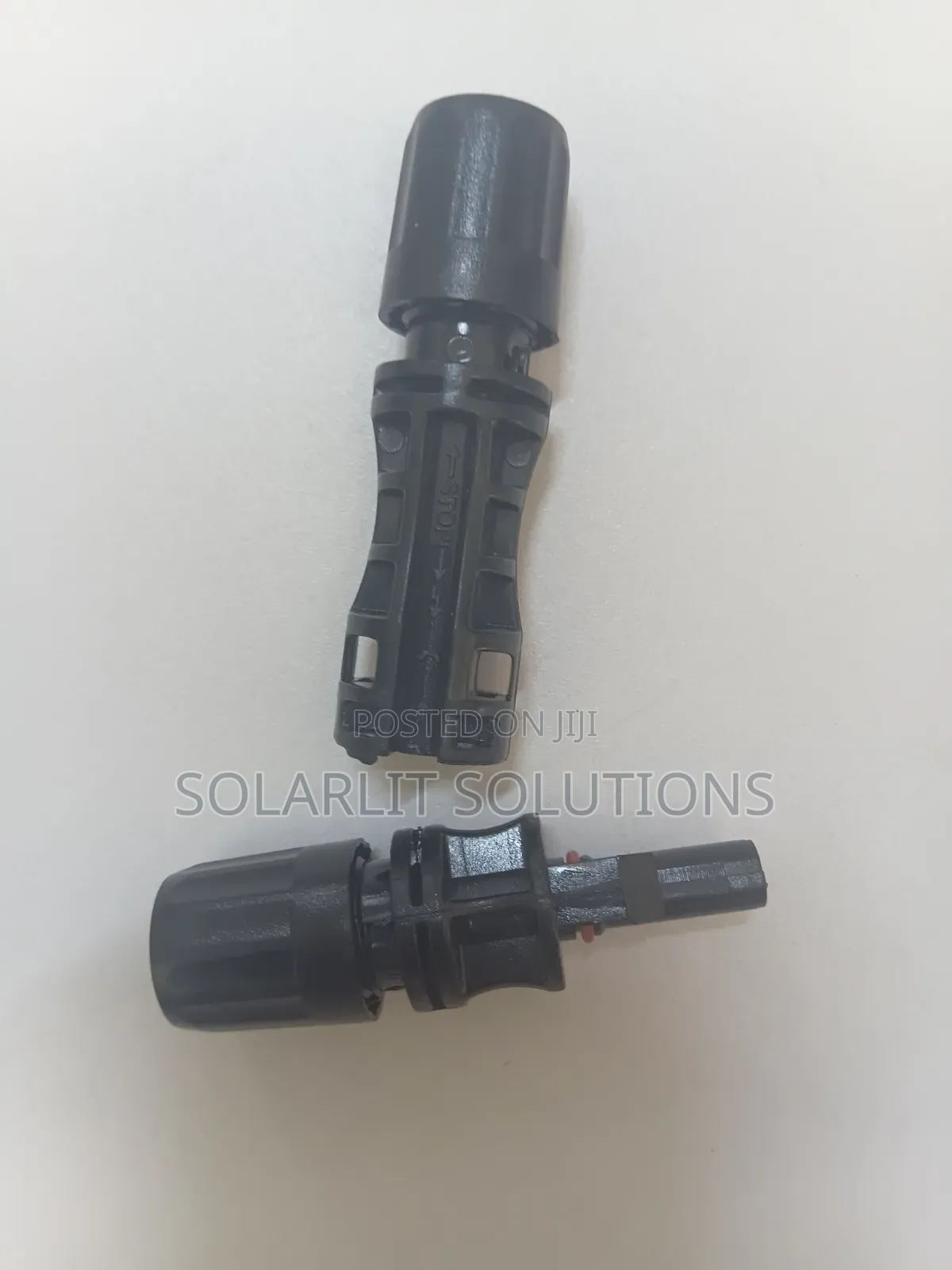

MC4 Solar Connectors Male and Female Cable Connectors With Crimp Pins

+1

Suntree

Brand

Solar Connectors

Type

Brand New

Condition

Delivery

Across country

1-3 days

KSh 500 - 1,000

Store address

Kiambu • Ruiru

Eastern bypass kamakis

Between shell petrol station kamakis and Greenspot gardens

Closed now

• Mon - Sat, 09:00-18:00

These connectors are standard weatherproof single-contact electrical connectors used for connecting solar panels and photovoltaic (PV) cables. Standard Technical Specifications Rated Voltage: 1000V DC (standard) to 1500V DC (high-voltage models) Rated Current: 30A (typical for standard 4mm2/6mm2 cables) Compatible Cable Cross-Section: 2.5 mm2, 4.0 mm2, or 6.0 mm2 (14 AWG to 10 AWG) Pin Diameter: 4 mm (standard Multi-Contact 4mm design) Contact Material: Tin-plated or silver-plated copper Housing Material: UV-resistant thermoplastic (PPO / PC) Contact Resistance: \leq 0.5\text{ m}\Omega IP Rating: IP67 / IP68 (waterproof and dustproof when mated) Operating Temperature: -40°C to +85°C / +90°C Locking System: Snap-in locking mechanism (requires an MC4 disconnect tool to release)
