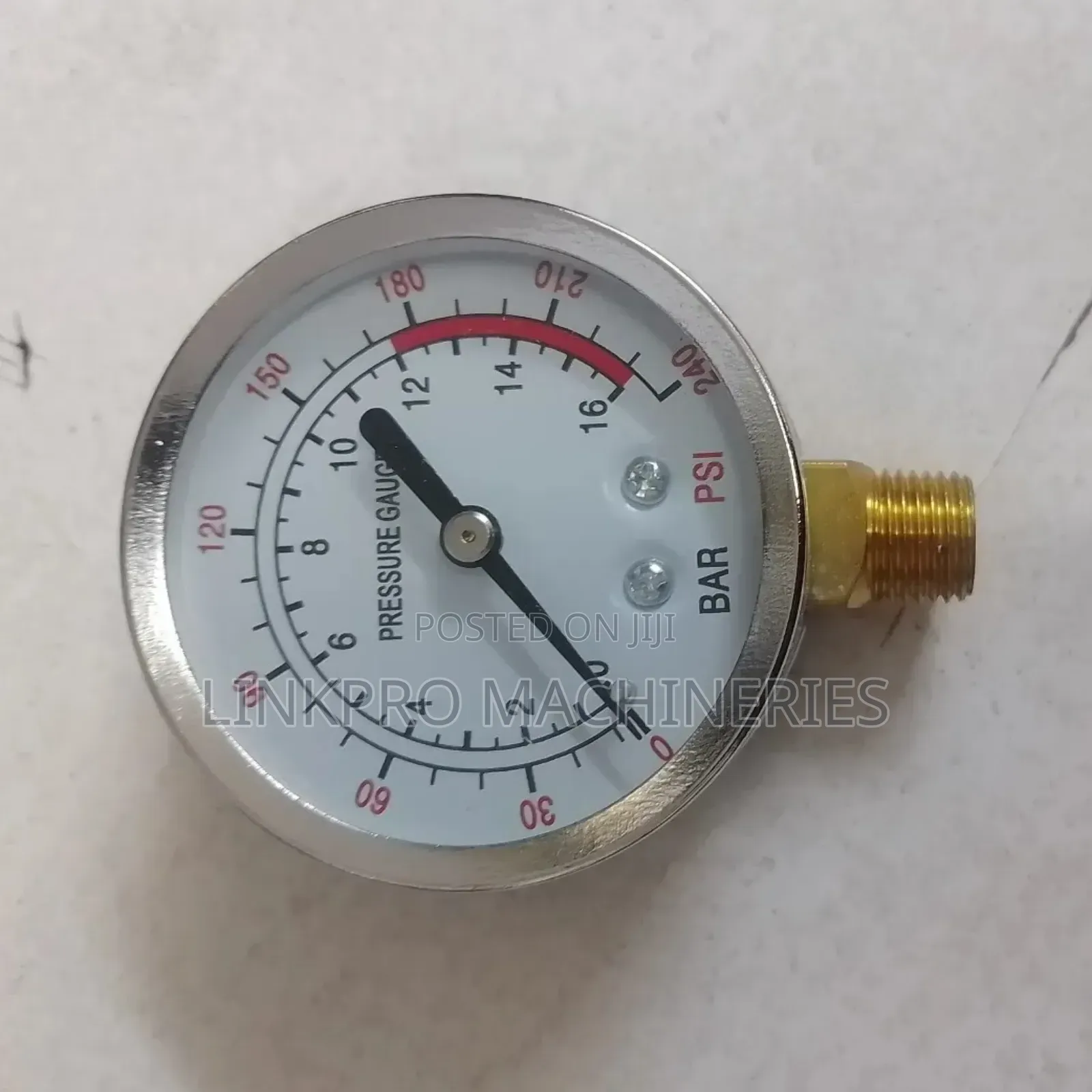

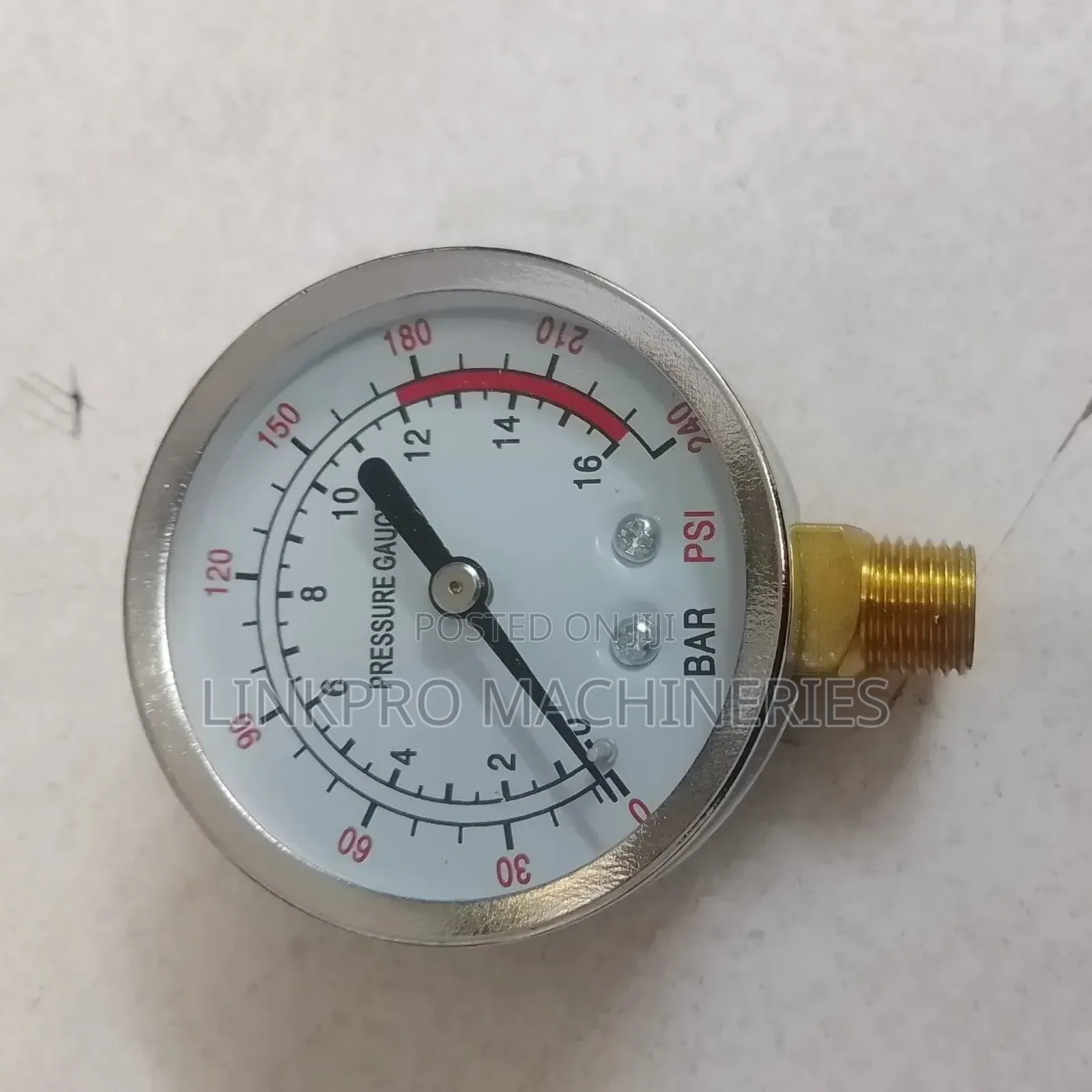

Pressure Gauge

+1

1

Chapa Mpya

Hali

Other

Chapa

Kipimo

Aina

Dijitali

Onyesha

Shaba

Nyenzo za Kupima

8mm

Kipenyo kiunganishi

30psi

Shinikizo la Min

232psi

Shinikizo kubwa

1psi

Usahihi wa kipimo

baa, psi

Vitengo vya Kipimo

Anwani ya duka

Nairobi • Nairobi Kati

Signage Arcade

along Duruma Road

Closed

• Jumatatu - Jumamosi, 08:00-18:00

Key Features and Specifications: Measurement Range: 0 - 16 bar (0 - 232 psi). Mechanism: Typically utilizes a Bourdon tube operating principle, which deforms elastically under pressure to move a pointer. Accuracy: Often Class 1.6 (±1.6% maximum deviation) or Class 2.5, with high-precision models reaching Class 0.6. Connections: Commonly available with 1/4 inch or 1/2 inch G or NPT threaded connections, positioned at the bottom or back (rear) of the gauge. Dial Sizes: Standard, commonly available in 40mm, 50mm, 63mm, or 100mm diameters. Material: Usually constructed with a steel or stainless-steel casing, with brass components for the internal mechanism. Fill Fluid: Often dry, but available with glycerin filling to dampen vibration and protect the mechanism against high dynamic loads. Protection Rating: Typically IP43 to IP65
