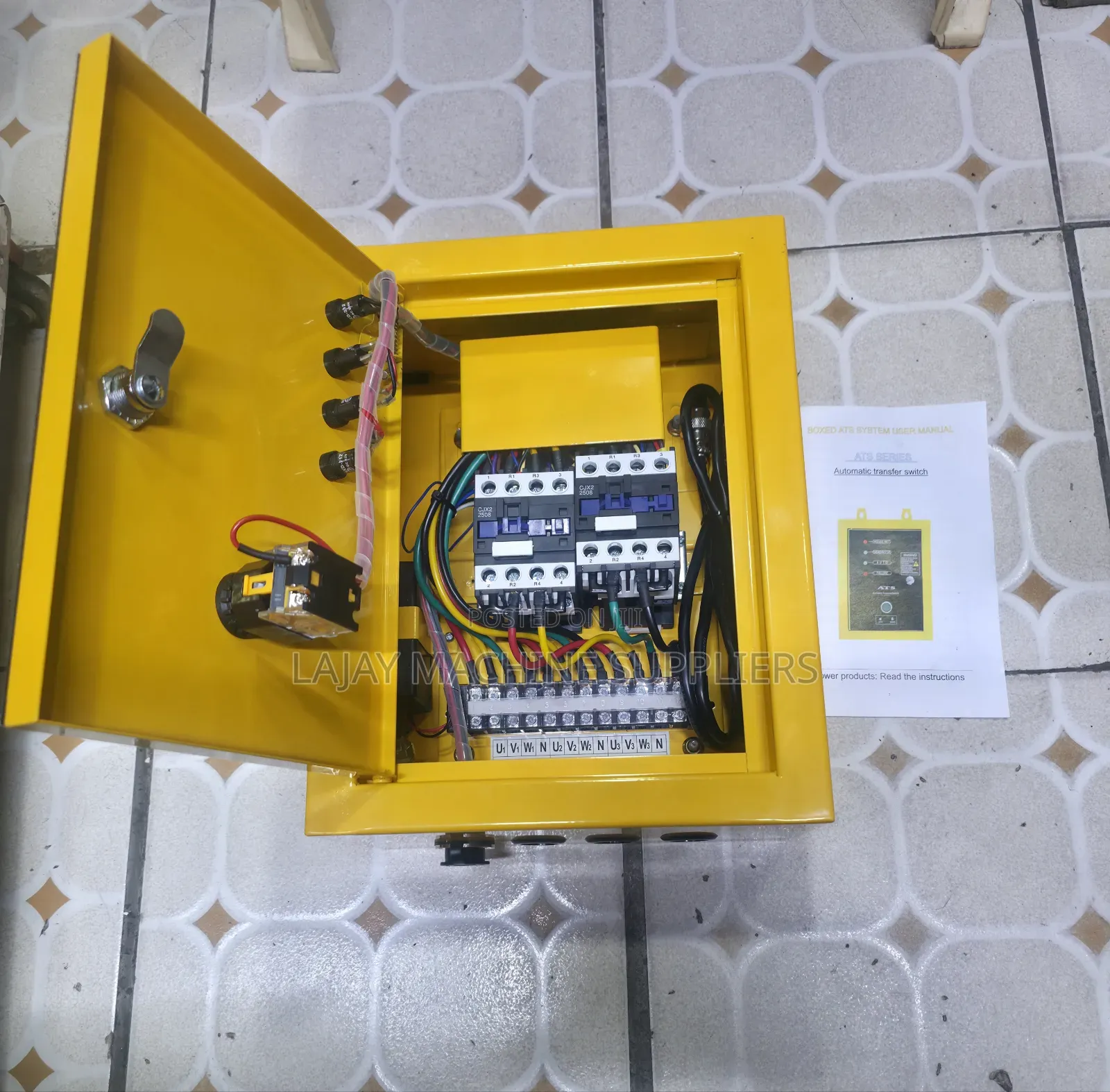

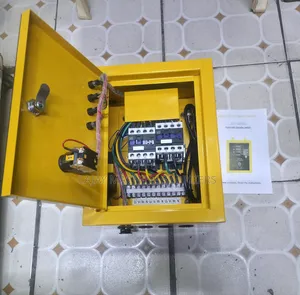

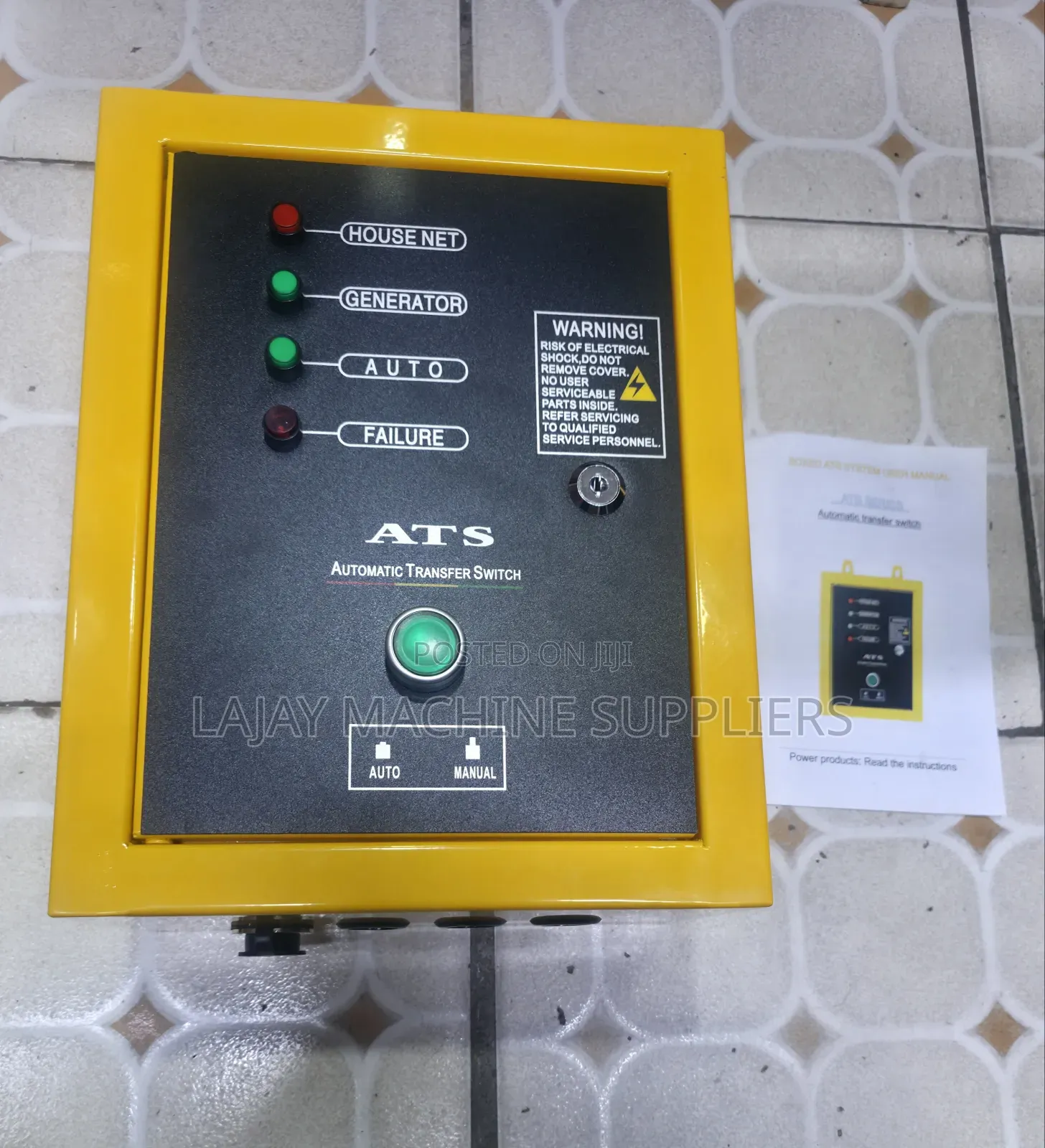

12 kVA Automatic Transfer Switch (ATS)

+1

Unbranded

Chapa

Generator part

Aina

Chapa Mpya

Hali

Anwani ya duka

Nairobi • Nairobi Kati

NGARIAMA ROAD

We're located at Ngariama road Nairobi CBD EPCOM BUSINESS CENTER GROUND FLOOR SHOP No 52

Closed

• Jumatatu - Jumamosi, 08:30-18:00

A 12 kVA Automatic Transfer Switch (ATS) is designed to automatically switch electrical loads between the utility mains and a standby generator rated around 12 kVA. Typical specifications Generator capacity: 12 kVA Rated current: Single-phase (230 V): Approximately 52 A (a 63 A ATS is commonly used to provide a safety margin). Three-phase (400/415 V): Approximately 17 A per phase (a 25 A or 32 A ATS is often suitable, depending on the installation and local electrical codes). Operating voltage: 230 V AC (single-phase) or 400/415 V AC (three-phase) Frequency: 50 Hz Transfer type: Open transition (break-before-make) Control: Automatic with manual override Start signal: Two-wire or three-wire generator start/stop (depends on the generator controller)
