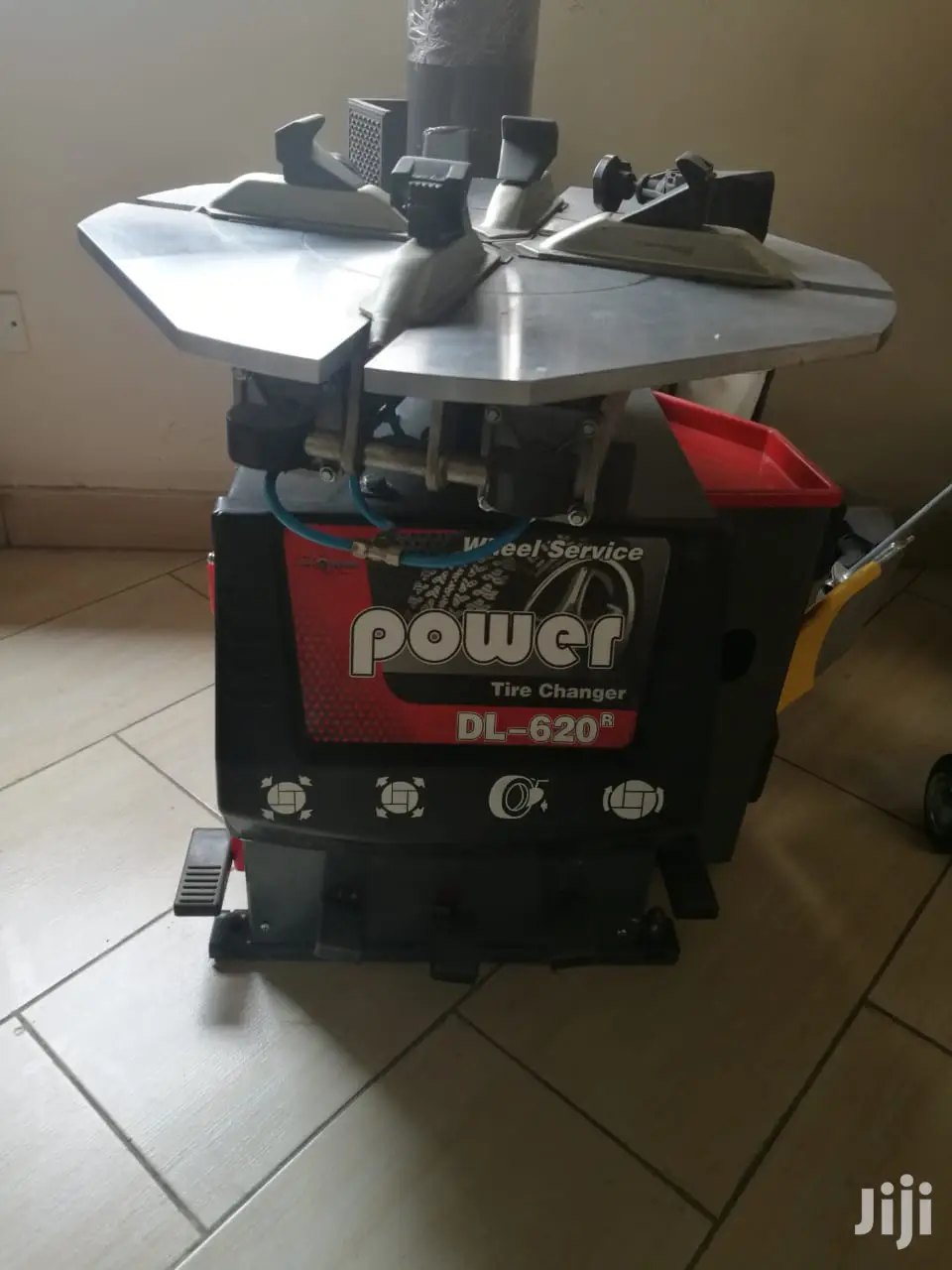

Automatic tyre changer for 12’’-24’’ wheels,
with swing arm and turntable shape complete
with automatic lubricator, tyre lever, grease
container holder and grease brush.
proven and reliable semi-automatic swing arm
configuration and manual locking system of the
vertical working arm
■ 2 way rotation self-centering turntable, also ideal to be used with optional motorcycle
adapters uma (clamping capacity7”-23”);
■ automatic lubricator and pedal protection
supplied in standard configuration
■ tool head complete with plastic protection
inserts for alloy rims
■ reinforced body to be coupled with the
patented low profile tyre mounting tool.
clamping capacity:12” - 24”
external clamping : 12” - 22”
internal clamping: : 14” - 24”
wheel diameter: 1000 mm (39.5”)
max wheel width: 320 mm (12.5”)
bead breaker force: 2800 kgf (6175 lbf)
turntable speed:10 rpm
motor: 1kw, power: 240v,50hz.
operating pressure:8bar(116psi)
