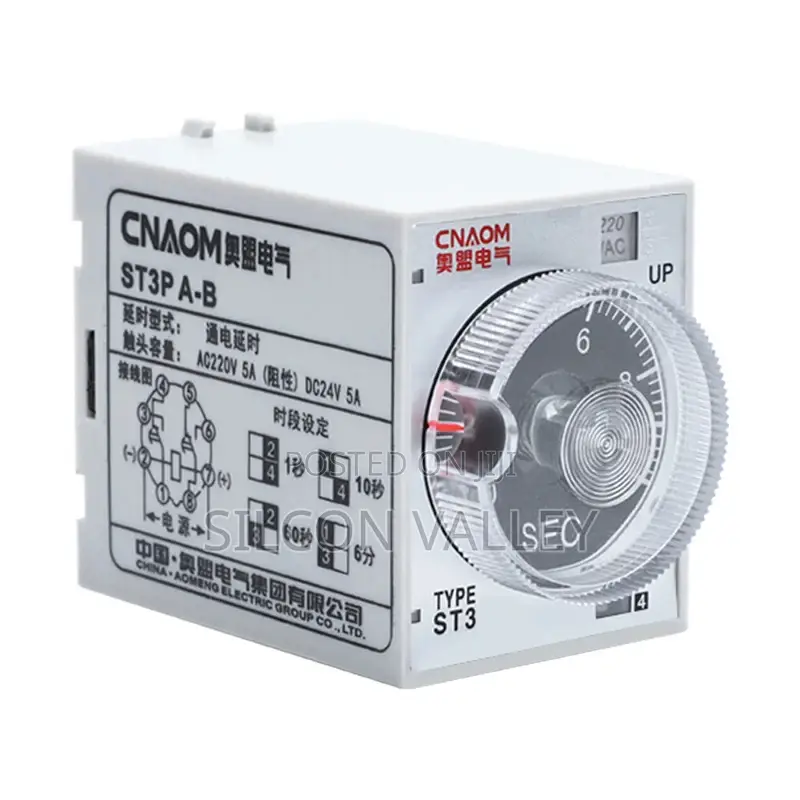

Multifunctional Time Delay Relay With Ac Power Supply With Base Socket

+1

Best

Brand

Circuit Breakers & Disconnectors

Type

Brand New

Condition

Store address

Nairobi • Nairobi Central

Tomboya street Twilight towers ,directly opposite Eastmart supermarket Shop F2-013A

Nairobi , Tomboya street , ask for twilight towers its opposite Eastmart supermarket

Closed

• Mon - Sat, 09:00-17:30

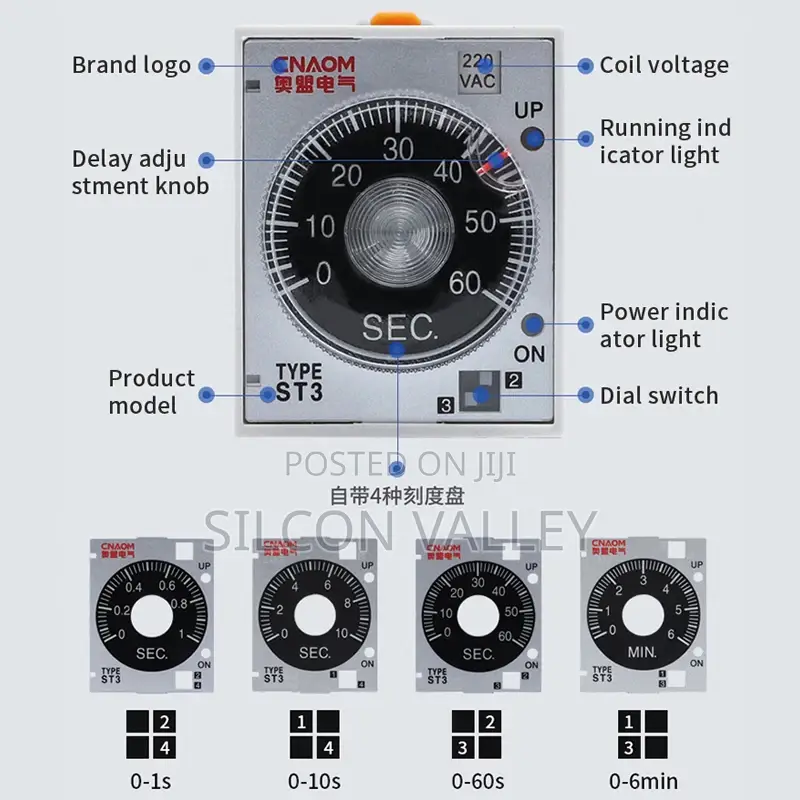

ST3P timer relays are used in all fields (industry, house, plant etc.) need controlls related to the time. Usage and Working Principle Please make the connection according to the diagram. Please adjust the delaying time by the knob. Energizethe device. Device will count the stand by time. Power led gets on when the counting occurs. During this step contact output is (NC) 4 and (NC) 5. After the time is uprelay led gets on and contact out put gets into(NO) 3 and (NO) 6. Untill it is de-energized device remains the same. ST3PA-A: 0.5sec. / 5sec. / 30sec. / 3min. ST3PA-B: 1sec. / 10sec. / 60sec. / 6min. ST3PA-C: 5sec. / 50sec. / 5min. / 30min. ST3PA-D: 10sec. / 100sec. / 10min. / 60min. ST3PA-E: 60sec. / 10min. / 60min. / 6hours. ST3PA-F: 2min. / 20min. / 2hours / 12hours. ST3PA-G: 4min. / 40min. / 4hours. / 24hours.
