Aico Japan BXi-500 Heavy Commercial AC Arc Welding Machine.

+1

AC

Brand

Welding Machines

Type

Hybrid Inverter

Inverter Type

500amps

Machine Amperage

Brand New

Condition

Store address

Nairobi • Industrial Area (Nairobi)

Nairobi

Closed now

• Mon - Fri, 09:00-17:00

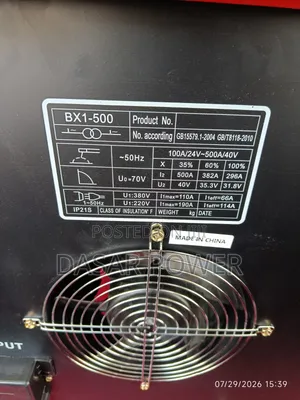

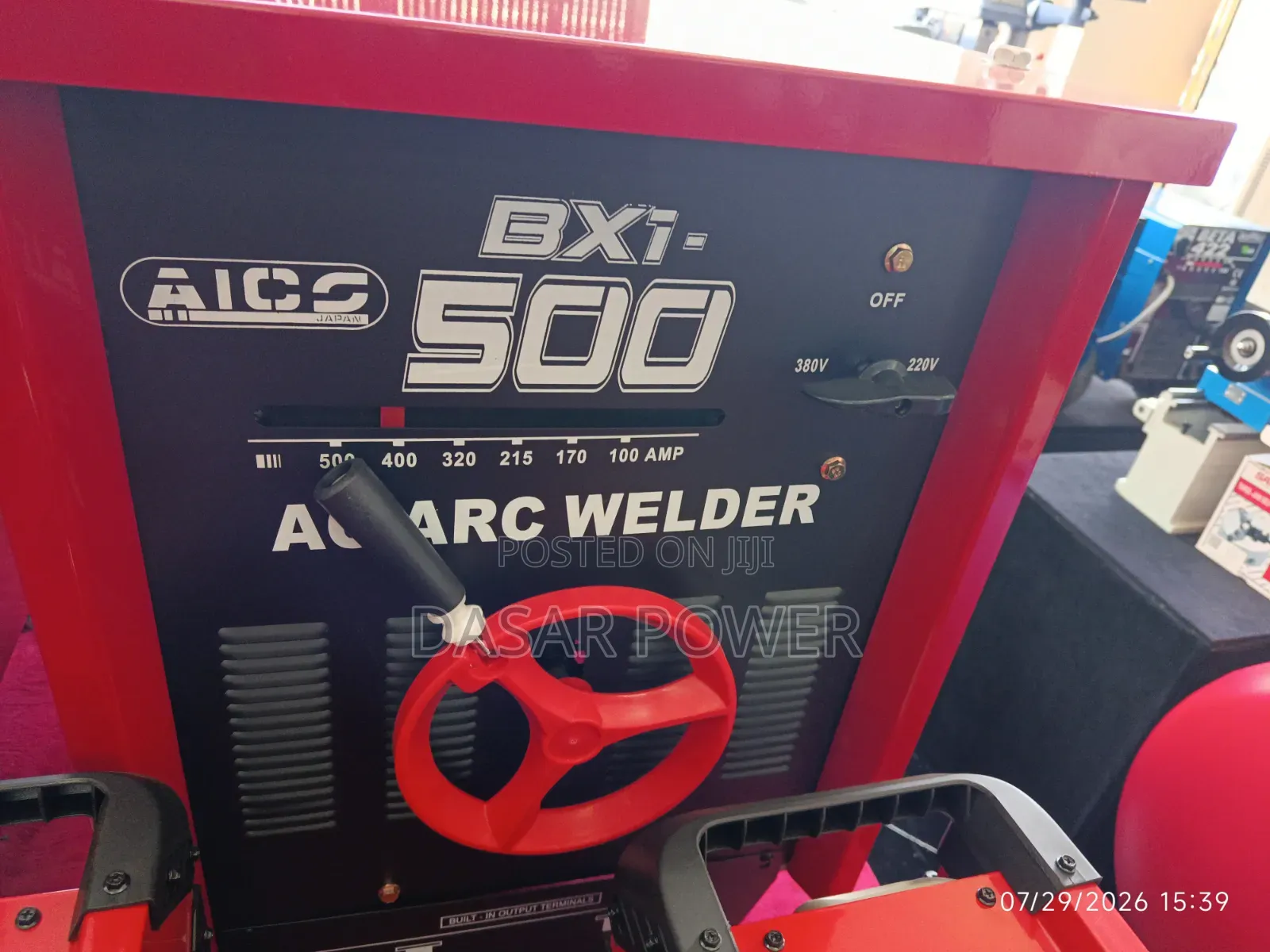

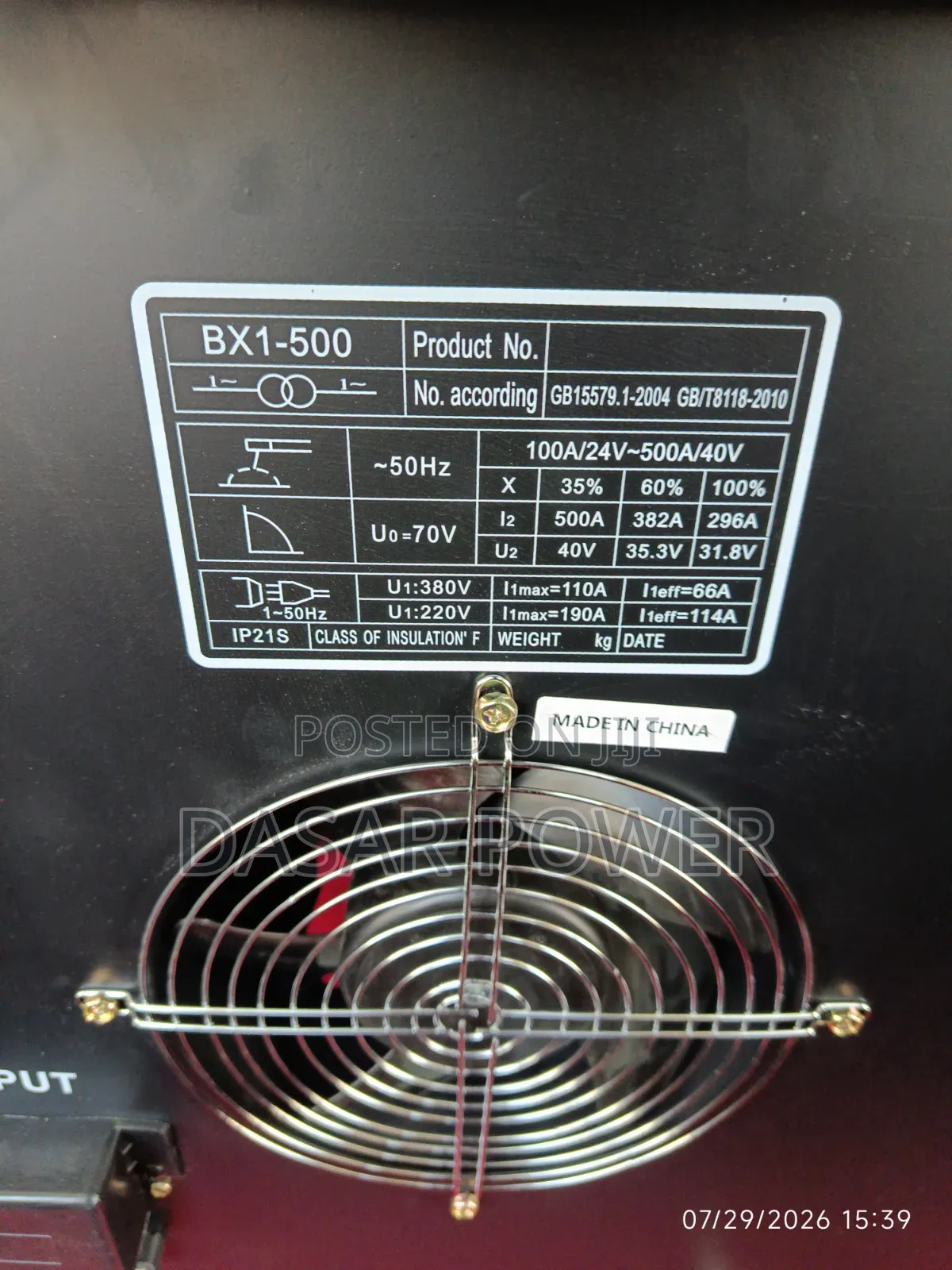

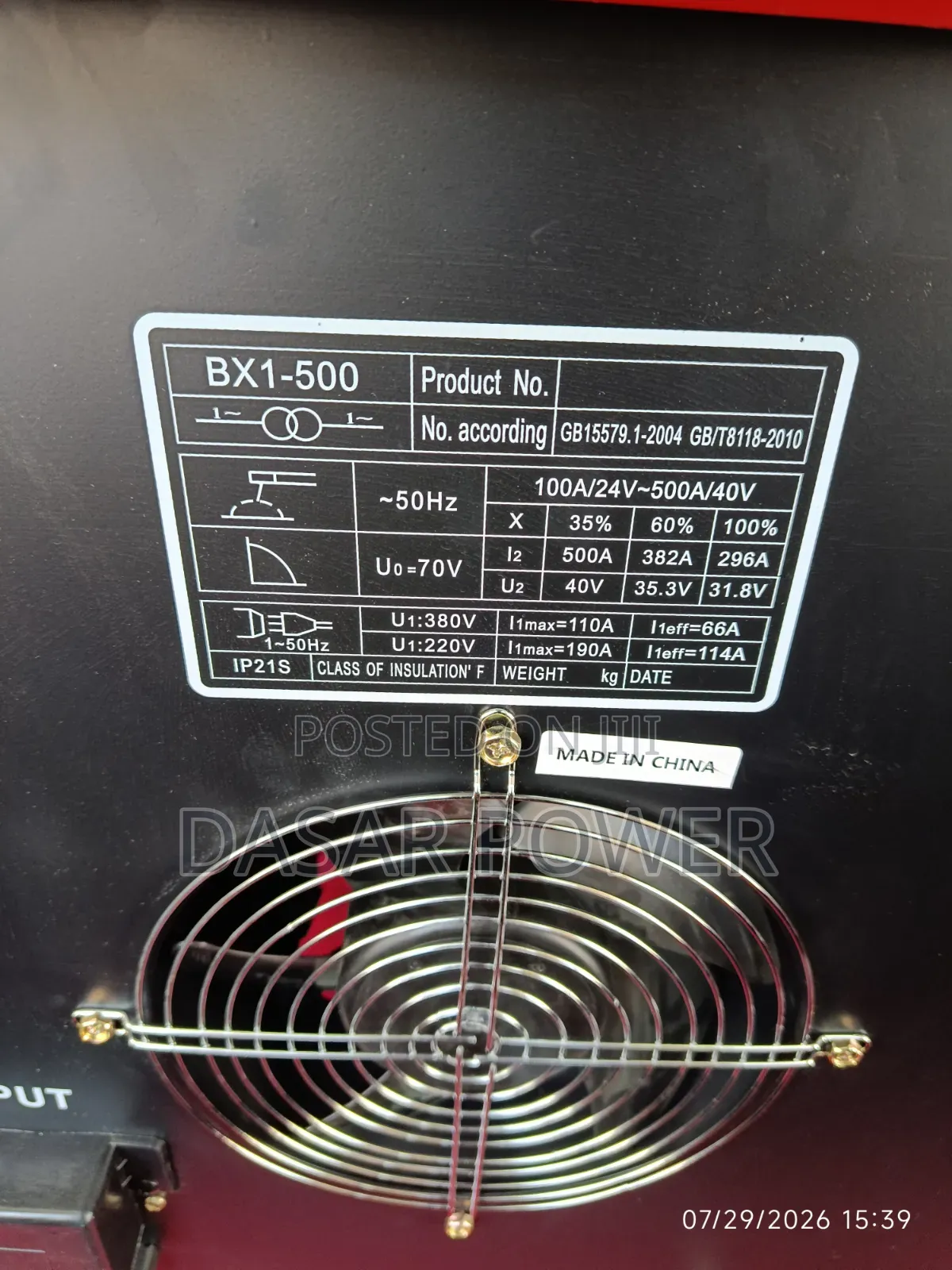

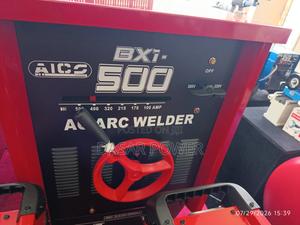

Technical Specifications Type: Moving-core transformer type AC arc welder. Maximum Output: 500 Amps. Current Range: Adjustable from 100A to 500A. Input Voltage: Dual-phase compatible, supporting both 220V and 380V. Component Identification & Functions Red Handwheel (Center) This wheel provides stepless manual adjustment of the welding current. Turning it changes the position of the moving iron core inside the transformer. This directly modifies the magnetic flux to fine-tune the amperage output based on electrode size and metal thickness. [1, 2, 3] Amperage Indicator Slot (Above the Wheel) This horizontal window shows the current setting. A physical indicator needle moves across the slot as you spin the red wheel, mapping the current between 100 and 500 Amps. Voltage Selector Switch.
