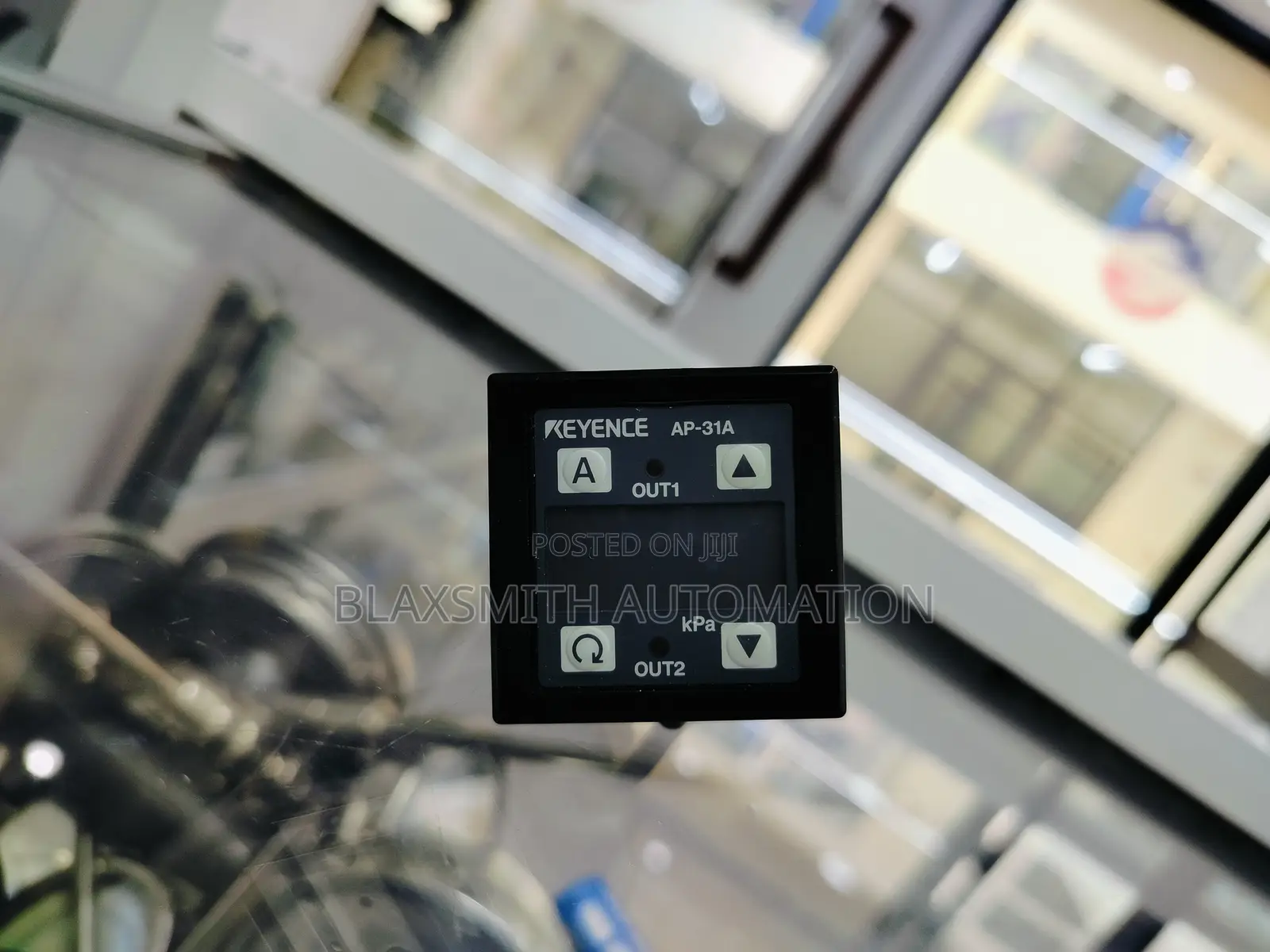

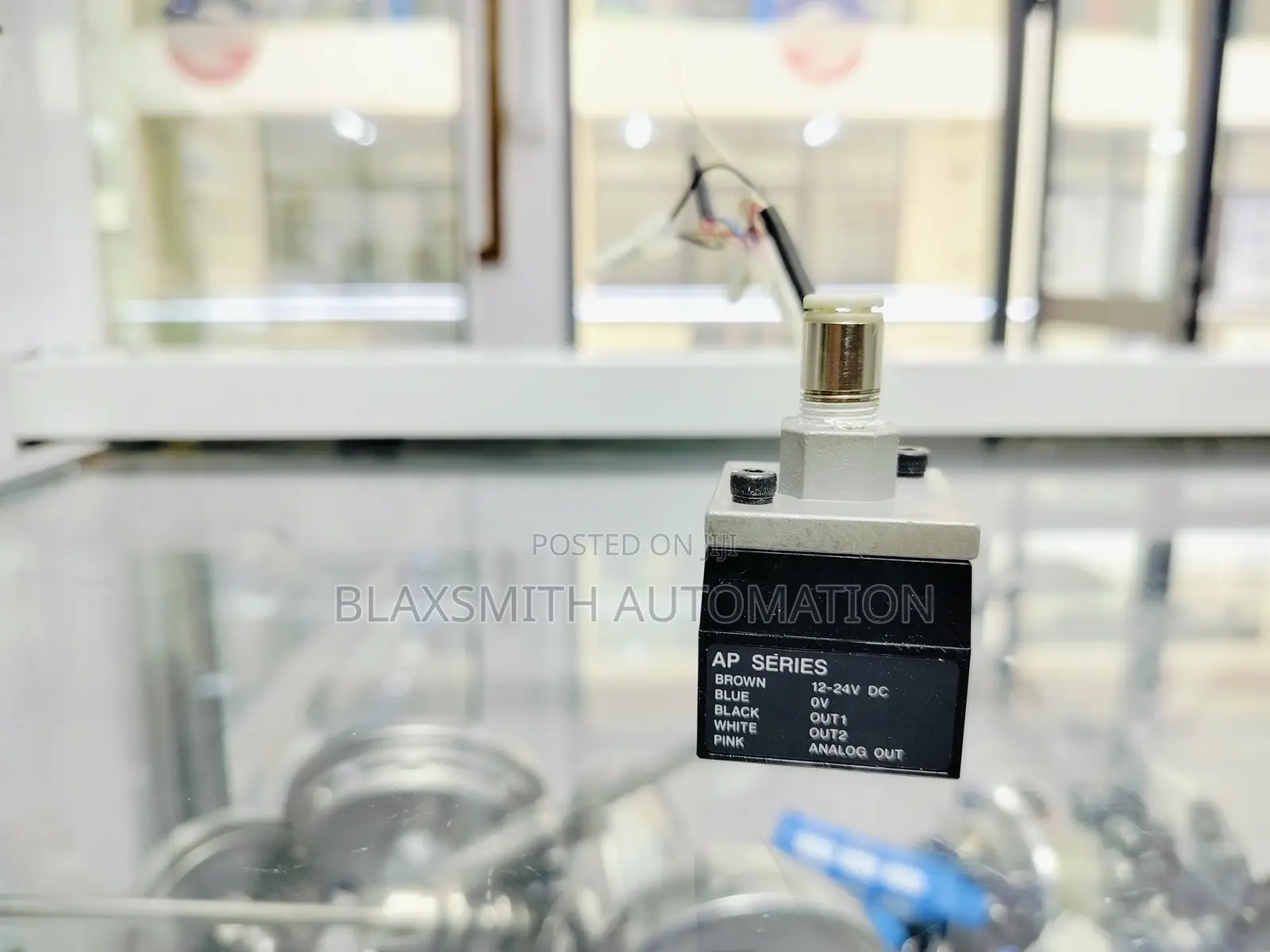

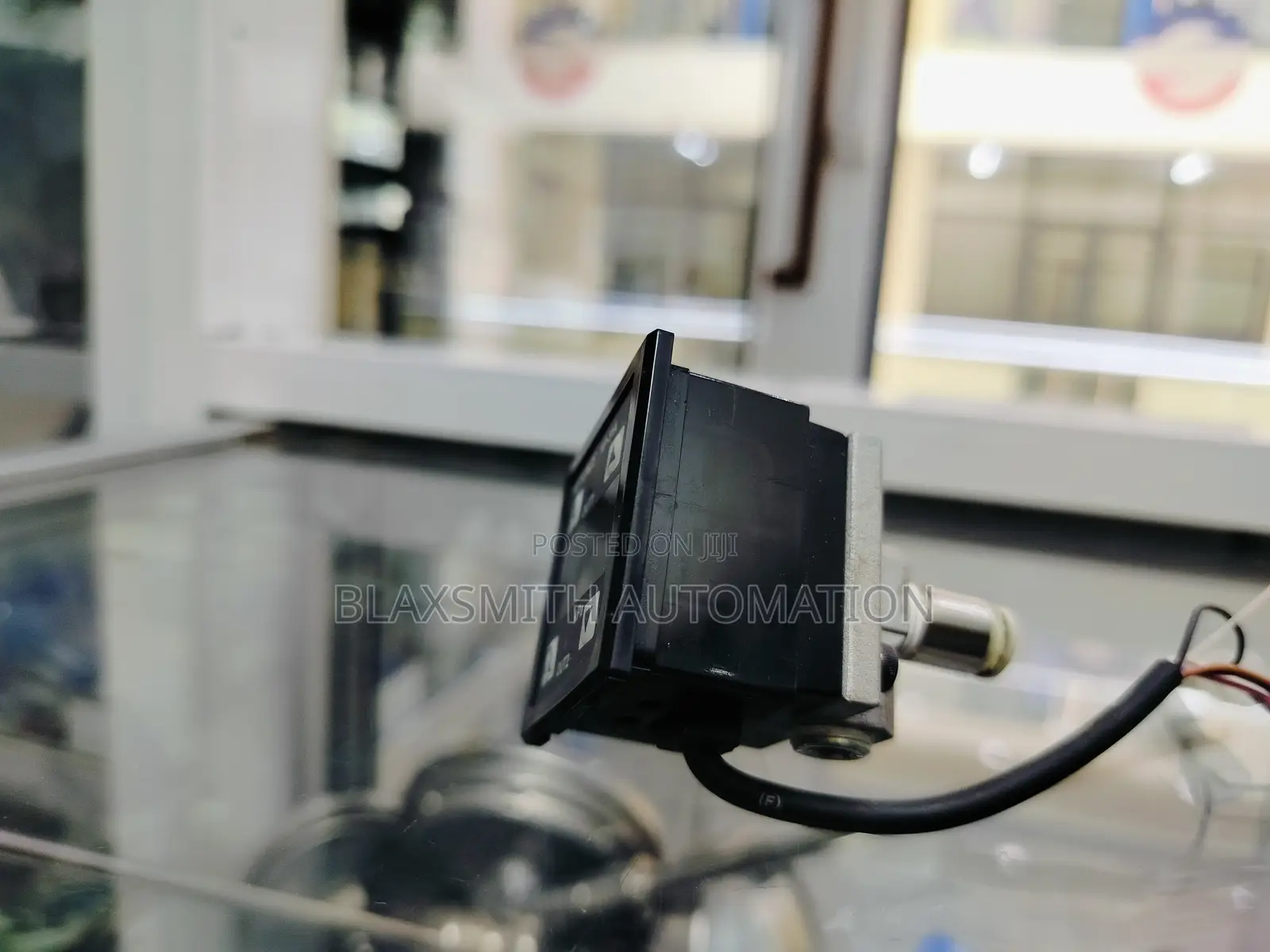

Keyence Ap-31a Pressure Sensor, 12-24v DC

+1

KEYENCE

Brand

Other

Type

Brand New

Condition

Store address

Nairobi • Industrial Area (Nairobi)

LUSAKA RD, SHEM PLAZA

NEAR DT DOBIE

Closed now

• Mon - Sat, 08:00-17:00

Type Negative pressure, Analog, NPN Rated pressure 0 to -101.3 kPa Fluid type Air or non-corrosive gases Type of pressure Gauge pressure, air or non-corrosive gases Display 3 1/2-digit, 2-color, 7-segment LED (Character height: 11 mm 0.43"), Display cycle: 5 times/s Display resolution 0.1 kPa (0.001 bar) Hysteresis Variable (when hysteresis mode is selected), 0.5 % of F.S. in standard mode Response time (Chattering prevention function) 2.5/5/100/500 ms (selectable) I/O Analog output 1 to 5 V (Load impedance: 47 kΩ min.) Control output NPN open collector: 100 mA max. (40 V max.), Residual voltage: 1 V max. 2-output (N.O./N.C.selectable) Rating Power voltage 12 to 24 VDC ±10 % Current consumption 50 mA (at 24 V) or less, 90 mA (at 12 V) or less Pressure resistance 5.0 bar (500 kpa)

Show contact
