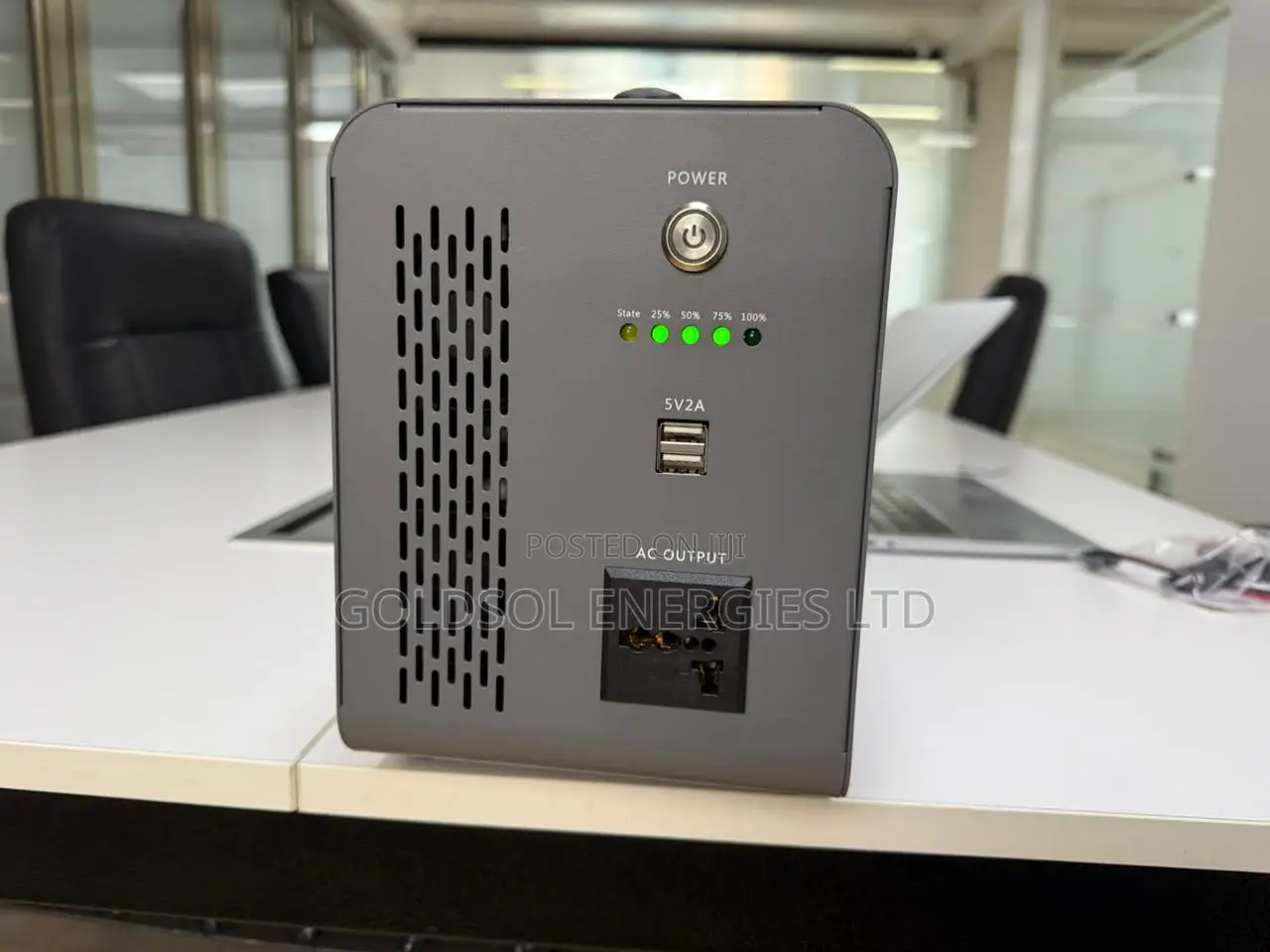

Vestwood 500w 1004wh power station
model
vep05k-10b
pv input
max. pv input power
300w
pv input voltage range & start voltage
11–55v
maximum charge current
10a
mppt efficiency
>99%
pv input port
xt60 with mc-4 adaptor
ac input
max. ac input power
500w±5%
input voltage range & frequency
90–280v±5%, 45–65hz
max. input current
3.65v±10%
ac input port
1'socket (optional)
ac output
rated & peak output power
500w/1000w±5%(1'5s)
output voltage range & frequency
210–230v
ac output port
1'socket and 2'usb
switch time
switching time <20ms
battery parameters
cell type
lfp
nominal battery voltage
3.2v
nominal battery energy
1004.8 wh
general specification
cooling mode
air cooling
altitude
<3000m
noise
<55db
weight
11±0.5kg
dimension(w*h*d)
300*200*150mm
ip rating
ip20
