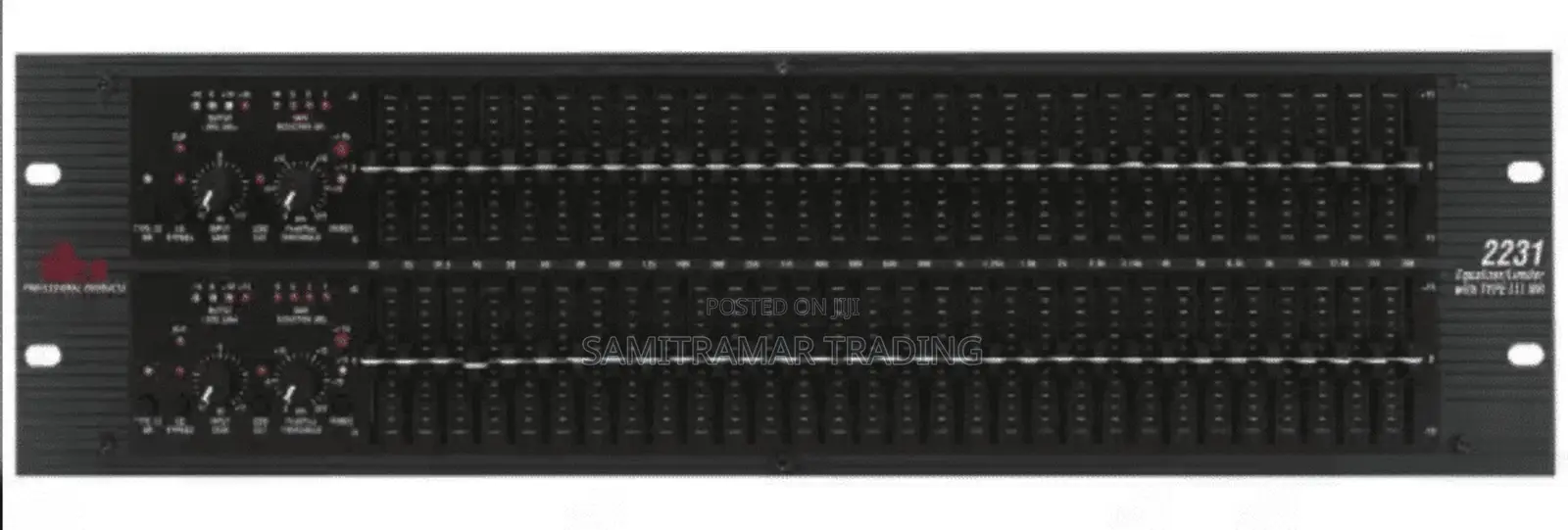

The dbx 2231
Key Features and Specifications
Channels: Dual-channel (stereo).
Bands: 31-bands per channel, 1/3-octave spacing, center-detented 45mm faders.
EQ Range: Switchable $\pm$6 dB or $\pm$15 dB boost/cut range.
Type III Noise Reduction, boosting S/N ratio by up to 20 dB.
PeakPlus limiter with 0 dBu to +24 dBu threshold range.
Metering: 4-segment LED bar graph for gain reduction and output level.
Inputs/Outputs: XLR, 1/4" TRS, and barrier strip connectors.
Frequency Response: 20Hz to 20kHz.
Functionality and Use
Sound Shaping: Provides precise control for room tuning and feedback control in PA systems.
Designed for touring with a durable chassis and high-quality sliders.
Visual Feedback: Comprehensive LED metering for input/output levels and gain reduction.
