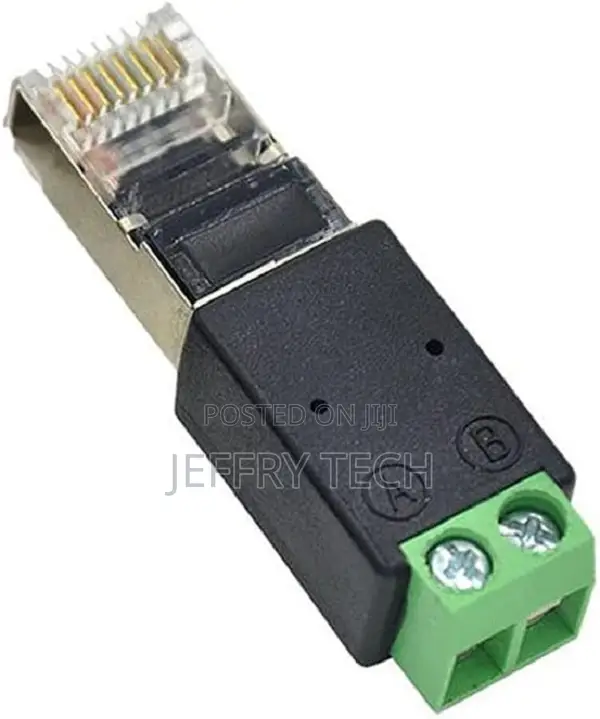

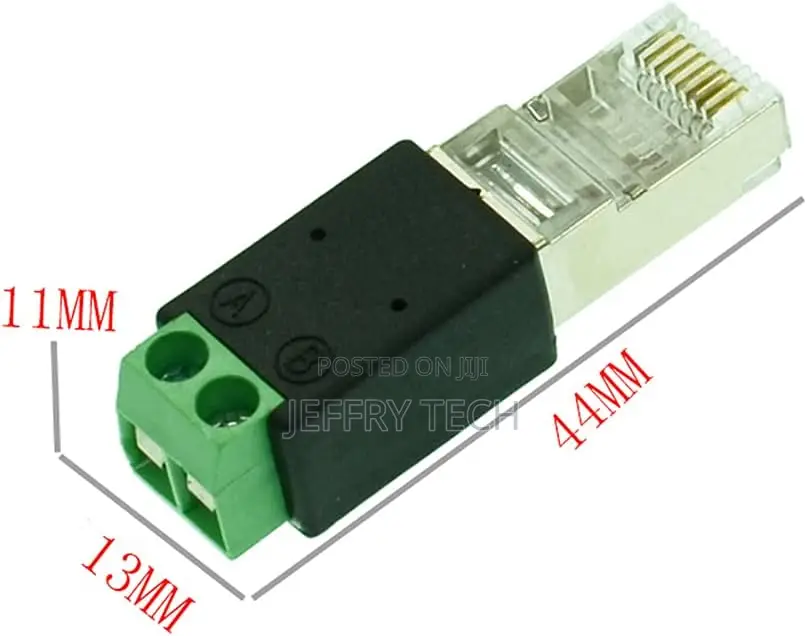

Rj45 to Rs485 Converter - Rj45 Terminal Adapter - Crystal H
Adapters
Type
Universal
Brand
Brand New
Condition
Store address
Nairobi • Nairobi Central
Nairobi central
Closed now
• Mon, Sat, 08:00-19:00
RJ45 to RS485 Converter - RJ45 Terminal Adapter - Crystal Head to Terminal (A Connects to PIN1, B Connects to PIN2)Pin6 (485A) and Pin7 (485B)
RJ45 pins Pin6 (485A) and Pin7 (485B), terminal A is connected to 485A and terminal B is connected to 485B. As long as these two pins are connected, the reverse connection is also possible, such as Pin6 (485B) and Pin7 (485A). Terminal A is connected to 485B, and terminal B is connected to 485A.
Pin4 (485A) and Pin5 (485B)
RJ45 pins Pin4 (485A) and Pin5 (485B), terminal A is connected to 485A terminal B is connected to 485B, as long as these two pins are connected, the reverse connection is also possible, such as Pin4 (485B) and Pin5 (485A). Terminal A is connected to 485B, and terminal B is connected to 485A.
Parameter
Pin: Pin4 and Pin5 or Pin6 and Pin7
Product model: RJ45 to 485 terminal
