Verview

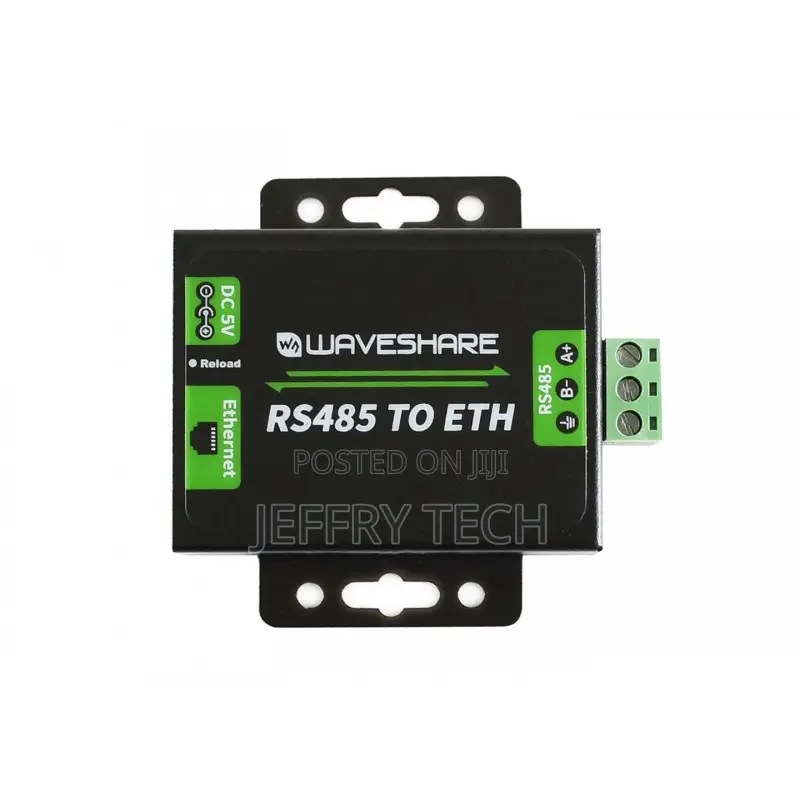

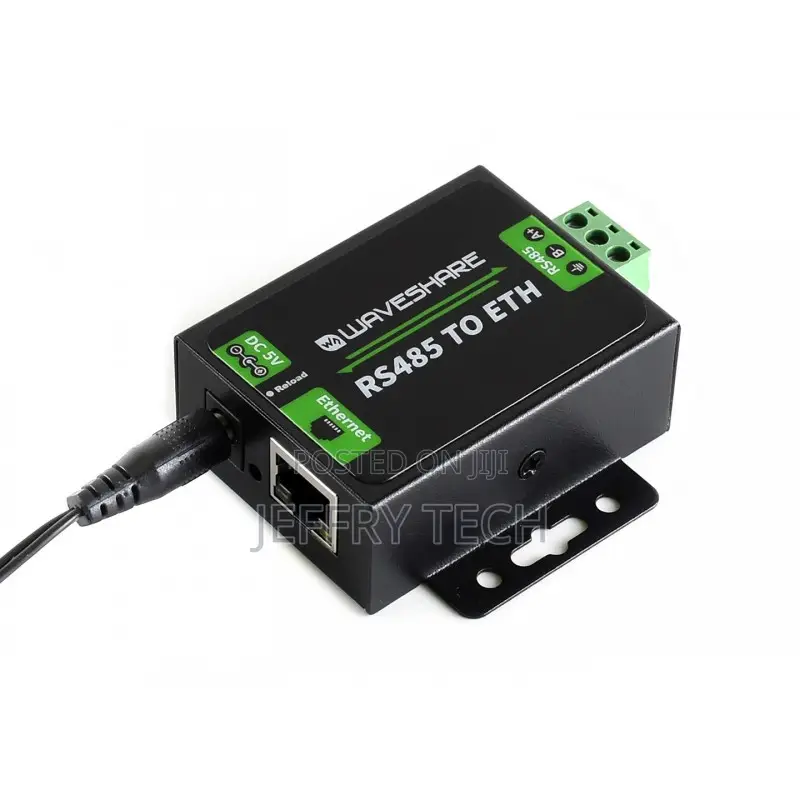

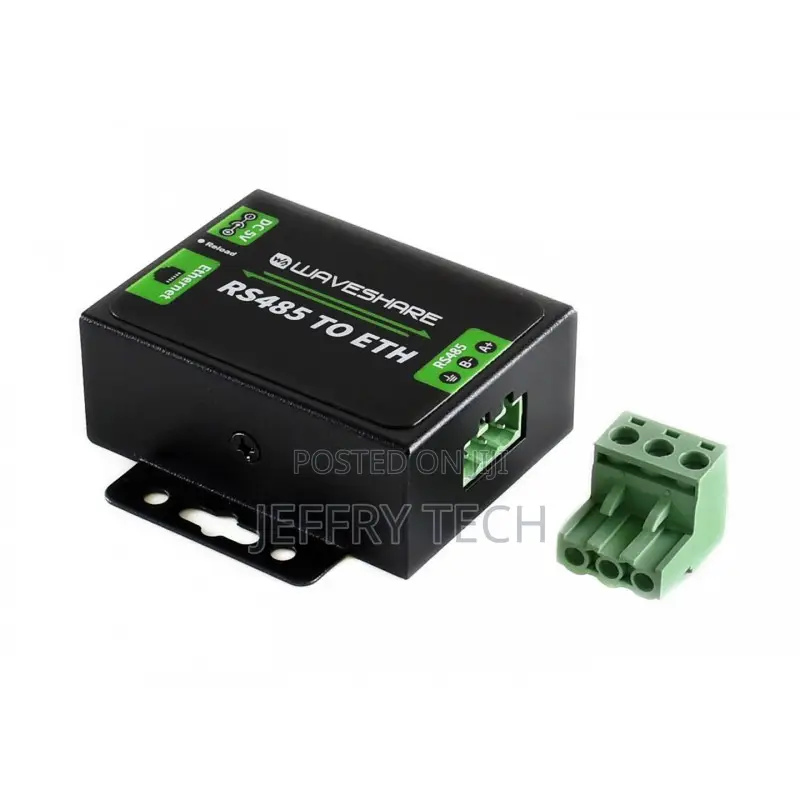

The RS485 TO ETH module provides an easy way to communicate between RS485 and RJ45 port Ethernet, it can be configured via webpage.
Features
M0 series 32-bit ARM processor, fast speed, high efficiency
10/100M Auto-MDI/MDIX ethernet interface, regardless of cross-over or straight-through cable
Configurable RS485 baudrate (600bps~230.4Kbps), supports five parity check options: None, Odd, Even, Mark, Space
Available working modes: TCP Server, TCP Client, UDP Server, UDP Client, HTTPD Client (supports GET and POST)
Configurable via webpage, AT commands, serial protocol, and network protocol, provides configuration protocol which can be integrated to your own software
Supports customized heartbeat packets, make sure the connection is truthful, as well as for actively retrieving sensor data
Supports customized registrat
