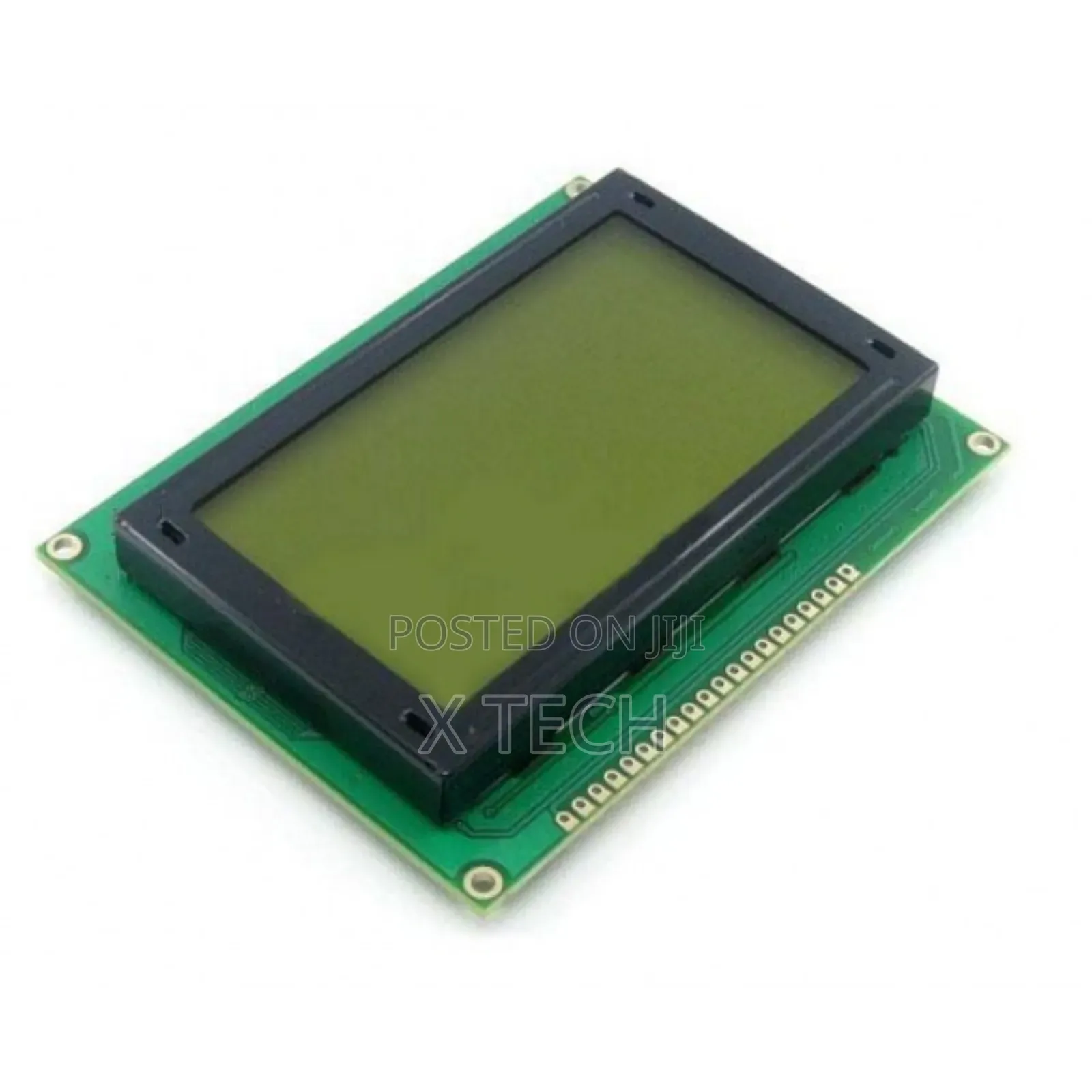

Graphical LCD 128x64
Other
Type
ST7920
Brand
Brand New
Condition
Store address
Kiambu • Ruiru
RXWF+V6F, Ruiru, Kenya
Shelvic resort
Open
• Mon, Sat, 09:00-20:00
Nerokas Online Store
Graphic LCD 128x64 KS0108
Graphic LCD 128x64 KS0108
Graphic LCD 128x64 KS0108
Out Of Stock
Ratings
Reviews
Based on 0 reviews. - Write a review
KES 1,000.00
Out Of Stock
Model:
LCM12864J
SKU:
1282
1
Description
A big, bold, beautiful blue LCD with white back-lit pixels. This LCD is the graphical upgrade to those popular 16x2 LCDs, but allows full graphical control.
Blue background with 128 x 64 'monochrome' white pixels
Low power white LED back-light
The LCD is driven by on-board 5V parallel interface chipset KS0108 and KS0107. They are extremely common and well documented
Existing Arduino library over at the wiki use 'pin out B'
PCB is 93mmx70mm (~ 3.66" x 2.75") and the viewing area is 71mmx39mm (2.8" x 1.5")
For a datasheet, please refer this one from Vishay
